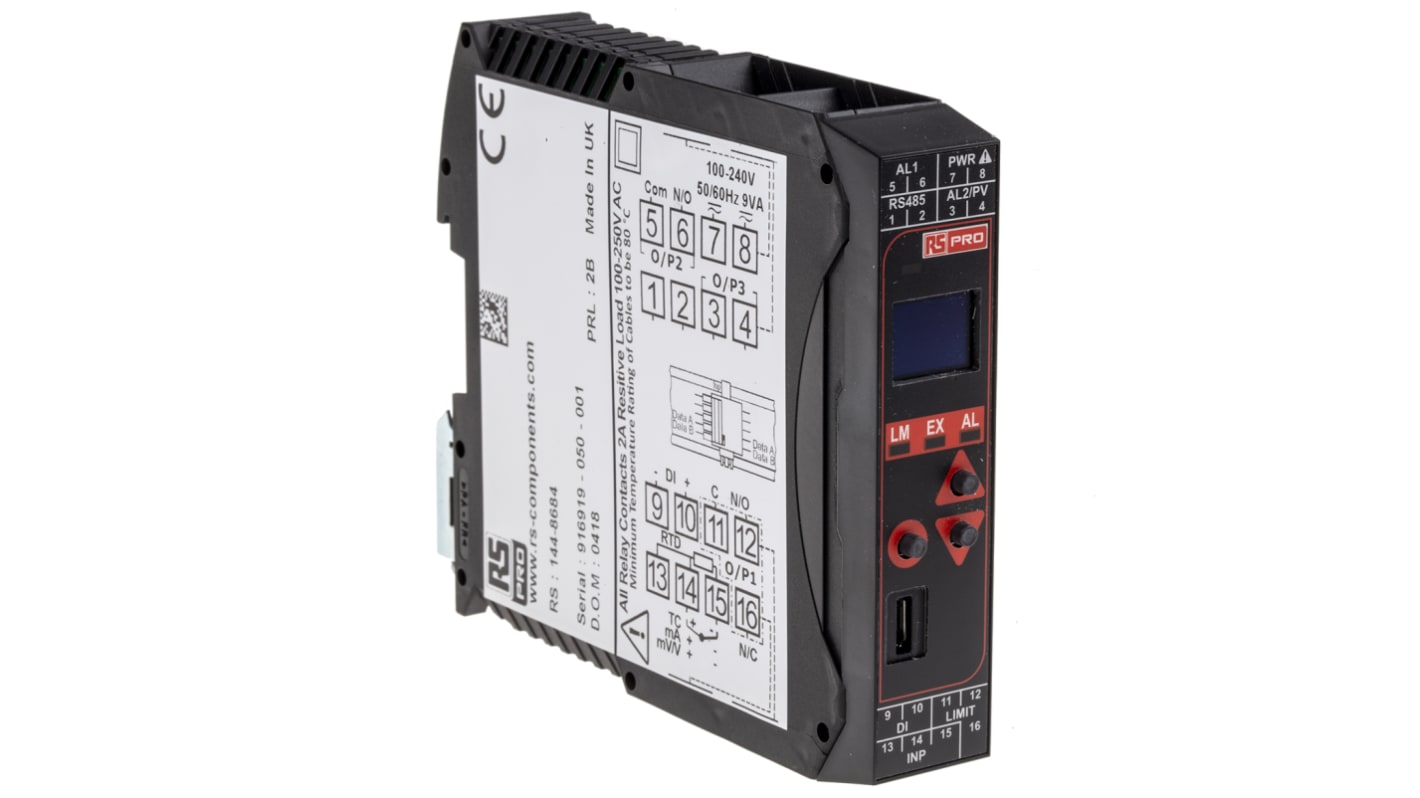

RS PRO MVR DIN Rail PID Temperature Controller 3 Input, 2 Output Relay 24V ac Controller
- RS Stock No.:
- 144-8684
- ผู้ผลิต:
- RS PRO
ยอดรวมย่อย (1 ชิ้น)*
THB10,284.06
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB11,003.94
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 9 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
- เพิ่มอีก 1 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB10,284.06 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 144-8684
- ผู้ผลิต:
- RS PRO
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | RS PRO | |
| Product Type | PID Temperature Controller | |
| Output Type | Relay | |
| Number of Inputs | 3 | |
| Number of Outputs | 2 | |
| Maximum Current | 2A | |
| Maximum Operating Temperature | 55°C | |
| Minimum Operating Temperature | 0°C | |
| Terminal Type | Screw | |
| Control Type | Controller | |
| Maximum Supply Voltage | 24V ac | |
| Digital Comms | RS485 Modbus RTU | |
| Diagnostics | Yes | |
| Display Type | OLED | |
| Maximum Voltage | 250V | |
| Width | 22.5mm | |
| Length | 110mm | |
| Standards/Approvals | EN61010-1, EN61326, UL61010-1, CE | |
| IP Rating | IP20 | |
| Mount Type | DIN Rail | |
| Series | MVR | |
| Panel Depth | 123mm | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand RS PRO | ||
Product Type PID Temperature Controller | ||
Output Type Relay | ||
Number of Inputs 3 | ||
Number of Outputs 2 | ||
Maximum Current 2A | ||
Maximum Operating Temperature 55°C | ||
Minimum Operating Temperature 0°C | ||
Terminal Type Screw | ||
Control Type Controller | ||
Maximum Supply Voltage 24V ac | ||
Digital Comms RS485 Modbus RTU | ||
Diagnostics Yes | ||
Display Type OLED | ||
Maximum Voltage 250V | ||
Width 22.5mm | ||
Length 110mm | ||
Standards/Approvals EN61010-1, EN61326, UL61010-1, CE | ||
IP Rating IP20 | ||
Mount Type DIN Rail | ||
Series MVR | ||
Panel Depth 123mm | ||
- COO (Country of Origin):
- GB
RS PRO RS PRO DIN Rail Temperature Limiter, 100-240V
A temperature limiter with an easy to read OLED display with universal input and up to 2 outputs. The temperature limit control is simple to setup and install with fast configuration and a quick start menu. ;Designed to be mounted to a standard 35mm DIN rail and comes with IP20 protection. The temperature limiter includes limit, high/low and deviation alarms and accepts thermocouple input of J, K, C, R, S, T, B L, N with Relay and Changeover Relay output.;A reliable temperature limiter providing secondary temperature protection.
Features and Benefits
Clear OLED display with 3 button operation
Text/icon matrix display
3 Status LEDs
Quick Setup menu with main configuration parameters
Thermocouple, PT100 and linear DC sensor input
Universal input
2 Relay outputs
Isolated digital input
Limit alarm plus warning, high/low or deviation
22.5 x 110mm module width
DIN Rail mounting
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
