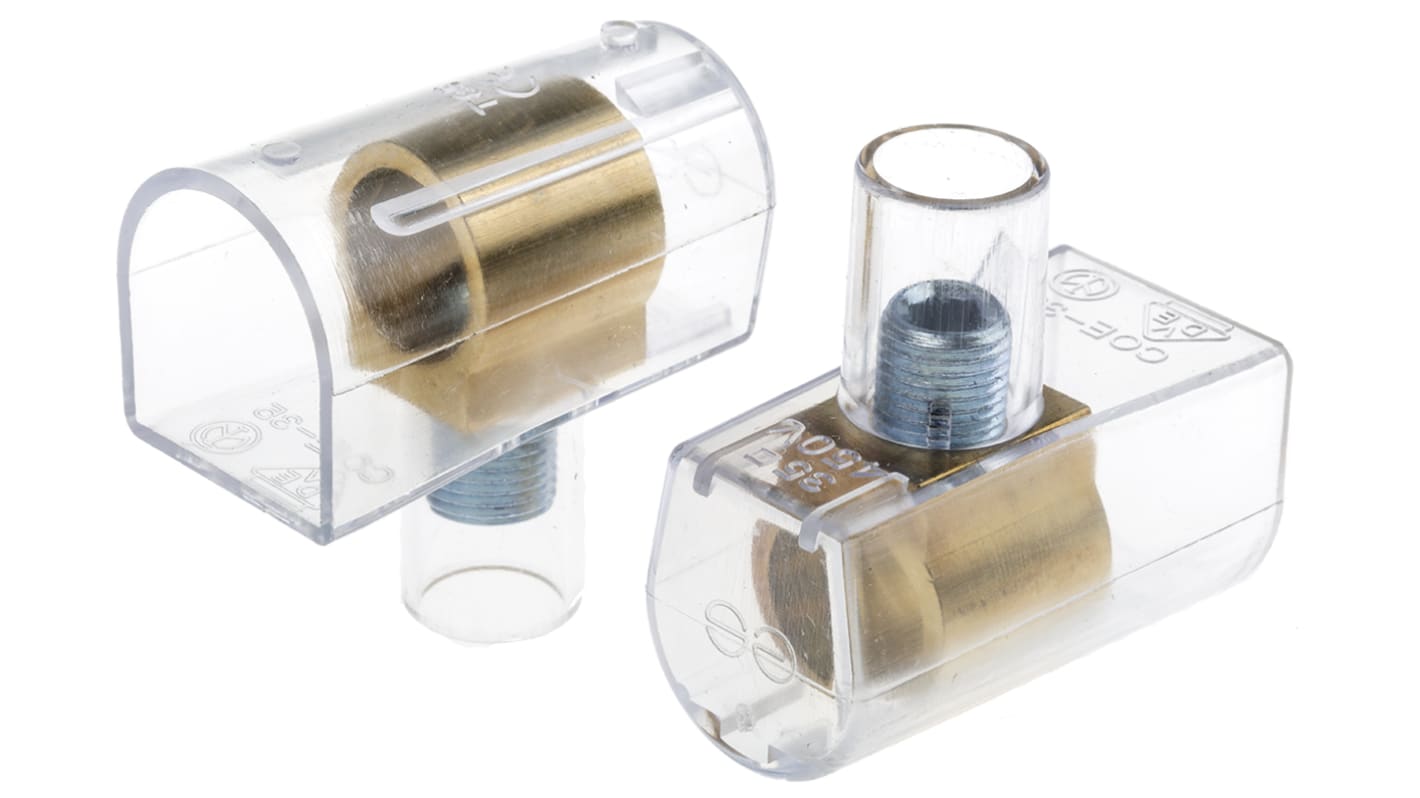

RS PRO COE Series Non-Fused Terminal Block, 1-Way, 35mm² Wire, 125A Screw
- RS Stock No.:
- 786-9213
- ผู้ผลิต:
- RS PRO
ยอดรวมย่อย (1 แพ็ค แพ็คละ 5 ชิ้น)*
THB1,180.81
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB1,263.465
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 665 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
- เพิ่มอีก 750 ชิ้นจะส่งได้หลังจากวันที่ 16 พฤศจิกายน 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย | ต่อแพ็ค* |
|---|---|---|
| 5 + | THB236.162 | THB1,180.81 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 786-9213
- ผู้ผลิต:
- RS PRO
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | RS PRO | |
| Number of Ways | 1 | |
| Product Type | Non-Fused Terminal Block | |
| Current | 125A | |
| Wire Size | 35mm² | |
| Mount Type | Cable | |
| Fused | No | |
| Contact Material | Brass | |
| Material | Polycarbonate | |
| Voltage | 500V | |
| Colour | Clear | |
| Cable CSA | 35mm² | |
| Wire Protection | No | |
| Series | COE | |
| Termination Type | Screw | |
| Minimum Operating Temperature | 85°C | |
| Gender | Female | |
| Maximum Operating Temperature | 130°C | |
| Enclosed | No | |
| Hazardous Area Certification | No | |
| Standards/Approvals | No | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand RS PRO | ||
Number of Ways 1 | ||
Product Type Non-Fused Terminal Block | ||
Current 125A | ||
Wire Size 35mm² | ||
Mount Type Cable | ||
Fused No | ||
Contact Material Brass | ||
Material Polycarbonate | ||
Voltage 500V | ||
Colour Clear | ||
Cable CSA 35mm² | ||
Wire Protection No | ||
Series COE | ||
Termination Type Screw | ||
Minimum Operating Temperature 85°C | ||
Gender Female | ||
Maximum Operating Temperature 130°C | ||
Enclosed No | ||
Hazardous Area Certification No | ||
Standards/Approvals No | ||
One-Side Entry Polycarbonate Terminal Blocks
Clear polycarbonate (PC) flame retardant housing
Rigid and easy cut
Brass inserts
Galvanised steel screws
All screws are captive and raised for easy wiring
Working temperature up to 85°C with a maximum of 120°C and short term (1 hour) at 130°C
Approvals
IMQ and CE
