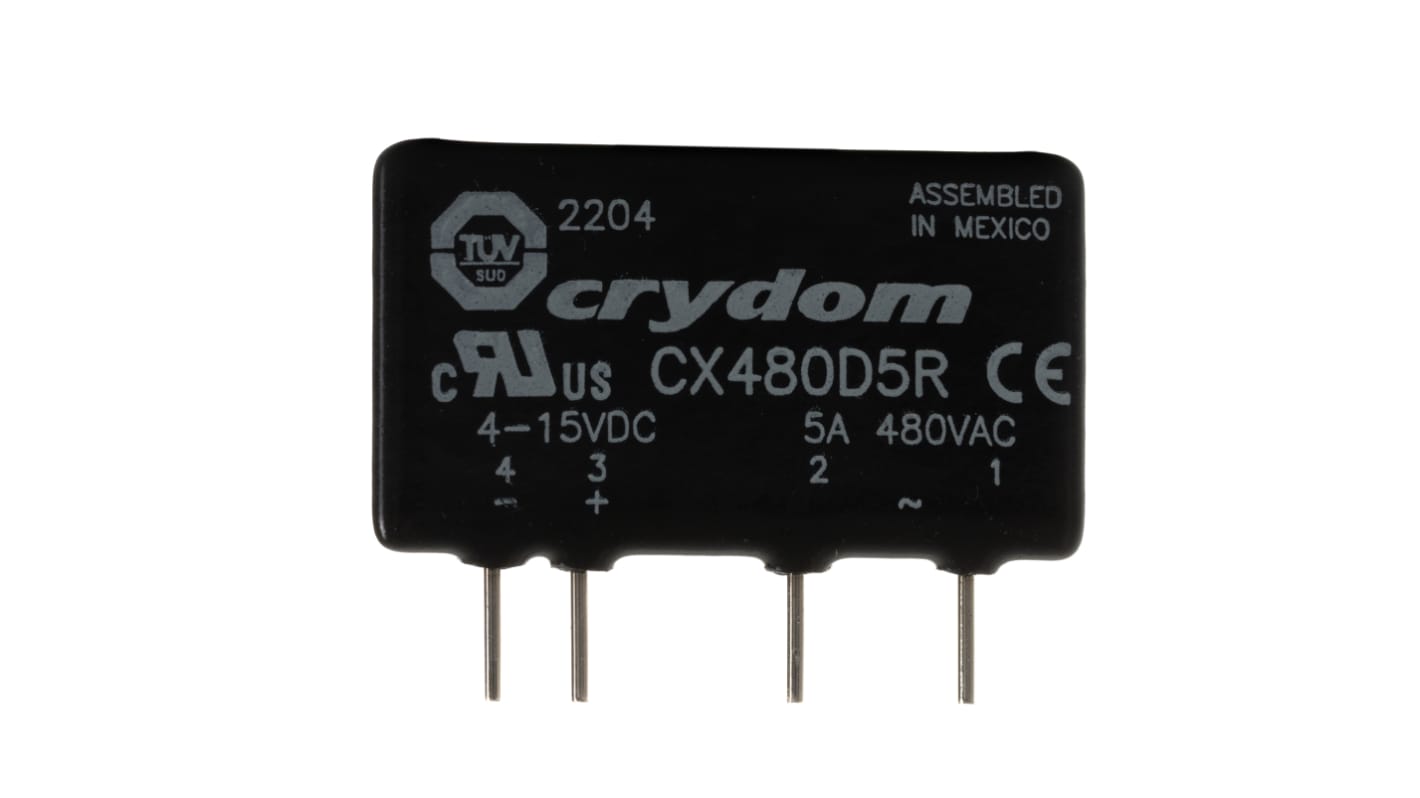

Sensata Crydom CX Series Solid State Relay, 5 A Load, PCB Mount, 660 V rms Load, 15 V dc Control
- RS Stock No.:
- 738-5544
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- CX480D5R
- ผู้ผลิต:
- Sensata / Crydom
ยอดรวมย่อย (1 ชิ้น)*
THB1,000.03
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB1,070.03
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
- 1 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
- เพิ่มอีก 36 ชิ้นจะส่งได้หลังจากวันที่ 01 มกราคม 2569 ไปอีกประมาณ 7 วันทำการ
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB1,000.03 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 738-5544
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- CX480D5R
- ผู้ผลิต:
- Sensata / Crydom
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Sensata / Crydom | |
| Maximum Load Current | 5 A | |
| Mounting Type | PCB Mount | |
| Maximum Load Voltage | 660 V rms | |
| Minimum Load Voltage | 48 V rms | |
| Minimum Control Voltage | 4 V dc | |
| Maximum Control Voltage | 15 V dc | |
| Switching Type | Instantaneous | |
| Control Voltage Range | 4 → 15 V dc | |
| Minimum Load Current | 5 A rms | |
| Terminal Type | Through Hole | |
| Contact Configuration | SPST | |
| Output Device | SCR | |
| Relay Type | Solid State Relay | |
| Package Style | SIP | |
| Load Voltage Range | 48 → 660Vrms | |
| Maximum Turn On Time | 1/2 cycle | |
| Series | CX | |
| Dimensions | 43.1 x 7.6 x 25.4mm | |
| Operating Temperature Range | -30 → +80°C | |
| Capacitance | 10pF | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +80°C | |
| Depth | 7.6mm | |
| Standards Met | CE, CSA | |
| Length | 43.1mm | |
| Height | 25.4mm | |
| Off State Leakage Current | 0.1 mA rms | |
| Special Features | AC or DC control | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Sensata / Crydom | ||
Maximum Load Current 5 A | ||
Mounting Type PCB Mount | ||
Maximum Load Voltage 660 V rms | ||
Minimum Load Voltage 48 V rms | ||
Minimum Control Voltage 4 V dc | ||
Maximum Control Voltage 15 V dc | ||
Switching Type Instantaneous | ||
Control Voltage Range 4 → 15 V dc | ||
Minimum Load Current 5 A rms | ||
Terminal Type Through Hole | ||
Contact Configuration SPST | ||
Output Device SCR | ||
Relay Type Solid State Relay | ||
Package Style SIP | ||
Load Voltage Range 48 → 660Vrms | ||
Maximum Turn On Time 1/2 cycle | ||
Series CX | ||
Dimensions 43.1 x 7.6 x 25.4mm | ||
Operating Temperature Range -30 → +80°C | ||
Capacitance 10pF | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +80°C | ||
Depth 7.6mm | ||
Standards Met CE, CSA | ||
Length 43.1mm | ||
Height 25.4mm | ||
Off State Leakage Current 0.1 mA rms | ||
Special Features AC or DC control | ||
- COO (Country of Origin):
- MX
Sensata | Crydom Solid-State Relay, 48 to 660V AC Operating Voltage Range, 11g Weight - CX Series - CX480D5R
Features & Benefits
• Thermally conductive epoxy housing is resistant to chemicals and wear
How quickly does this unit switch on and off?
What are the dimensions of this unit?
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
Approvals
