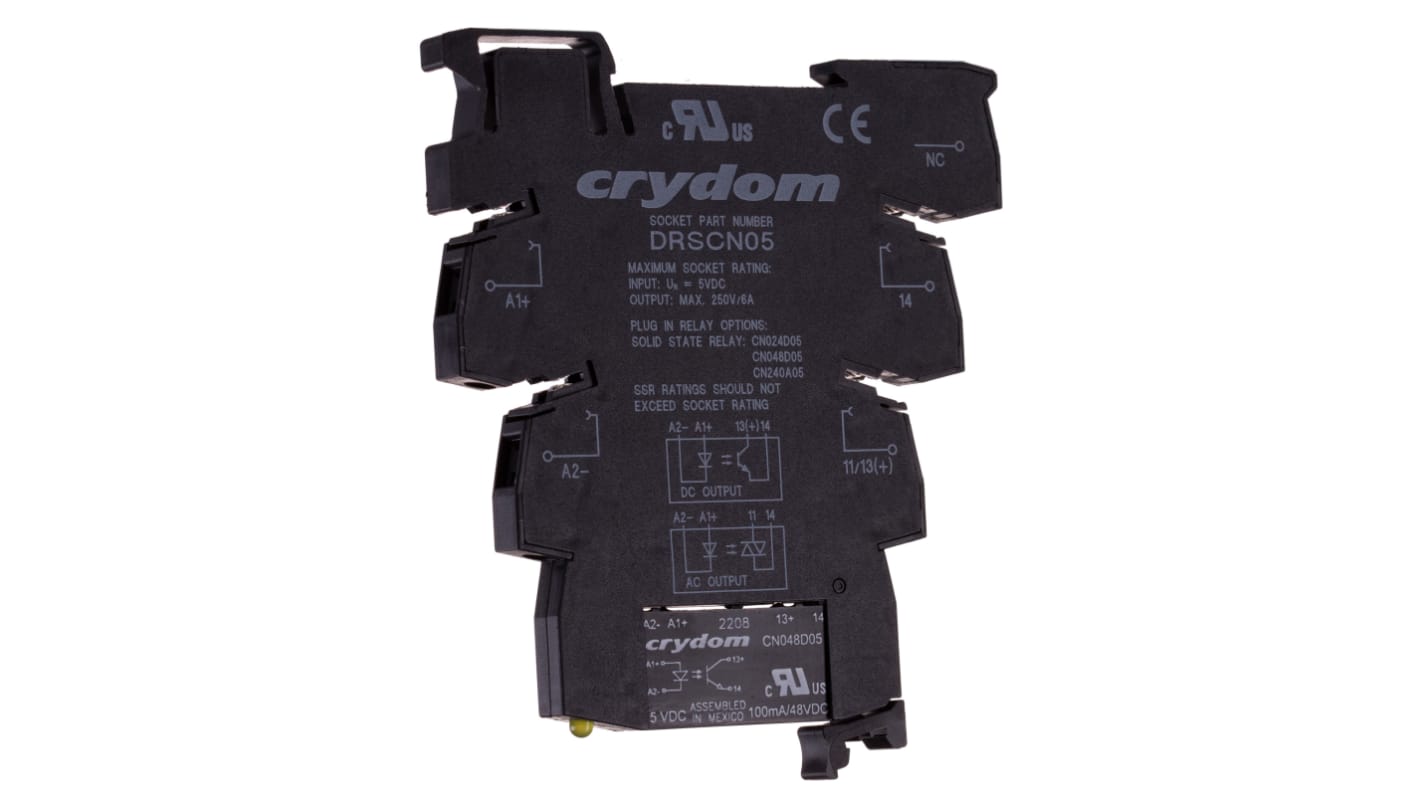

Sensata Crydom DRA-CN Series Solid State Interface Relay, 12 V dc Control, 0.1 A Load, DIN Rail Mount
- RS Stock No.:
- 720-3981
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- DRA-CN048D05
- ผู้ผลิต / Manufacturer:
- Sensata / Crydom
ราคา / Price Each**
THB1,701.09
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB1,820.17
(รวมภาษีมูลค่าเพิ่ม)
* วันที่จัดส่งอาจเปลี่ยนแปลงได้ตามจำนวนสินค้าที่คุณเลือกหรือที่อยู่จัดส่งของคุณ
ฟรี ค่าจัดส่งสำหรับการสั่งซื้อมากกว่า THB2,500.00 (ไม่รวมภาษี)
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB1,701.09 |
**ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 720-3981
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- DRA-CN048D05
- ผู้ผลิต / Manufacturer:
- Sensata / Crydom
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Sensata / Crydom | |
| Maximum Control Voltage | 12 V dc | |
| Maximum Load Current | 0.1 A | |
| Mounting Type | DIN Rail | |
| Maximum Load Voltage | 48 V dc | |
| Minimum Control Voltage | 3 V dc | |
| Control Voltage Range | 3 → 12 V dc | |
| Switching Type | Zero Cross | |
| Contact Configuration | SPST | |
| Load Voltage Range | 0 → 48V dc | |
| Minimum Load Voltage | 0 V dc | |
| Input Current | 10mA | |
| Minimum Load Current | 1 mA | |
| Series | DRA-CN | |
| Length | 92.6mm | |
| Depth | 6.1mm | |
| Height | 80mm | |
| Maximum Turn On Time | 20 μs | |
| Minimum Operating Temperature | -25°C | |
| Off State Leakage Current | 0.001 mA | |
| Range | DRA-CN | |
| Capacitance | 1.5pF | |
| Dimensions | 92.6 x 6.1 x 80mm | |
| Maximum Operating Temperature | +60°C | |
| Manufacturer Part No. | DRA-CN048D05 | |
| Operating Temperature Range | -25 → +60°C | |
เลือกทั้งหมด | ||
|---|---|---|
Brand Sensata / Crydom | ||
Maximum Control Voltage 12 V dc | ||
Maximum Load Current 0.1 A | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 48 V dc | ||
Minimum Control Voltage 3 V dc | ||
Control Voltage Range 3 → 12 V dc | ||
Switching Type Zero Cross | ||
Contact Configuration SPST | ||
Load Voltage Range 0 → 48V dc | ||
Minimum Load Voltage 0 V dc | ||
Input Current 10mA | ||
Minimum Load Current 1 mA | ||
Series DRA-CN | ||
Length 92.6mm | ||
Depth 6.1mm | ||
Height 80mm | ||
Maximum Turn On Time 20 μs | ||
Minimum Operating Temperature -25°C | ||
Off State Leakage Current 0.001 mA | ||
Range DRA-CN | ||
Capacitance 1.5pF | ||
Dimensions 92.6 x 6.1 x 80mm | ||
Maximum Operating Temperature +60°C | ||
Manufacturer Part No. DRA-CN048D05 | ||
Operating Temperature Range -25 → +60°C | ||
