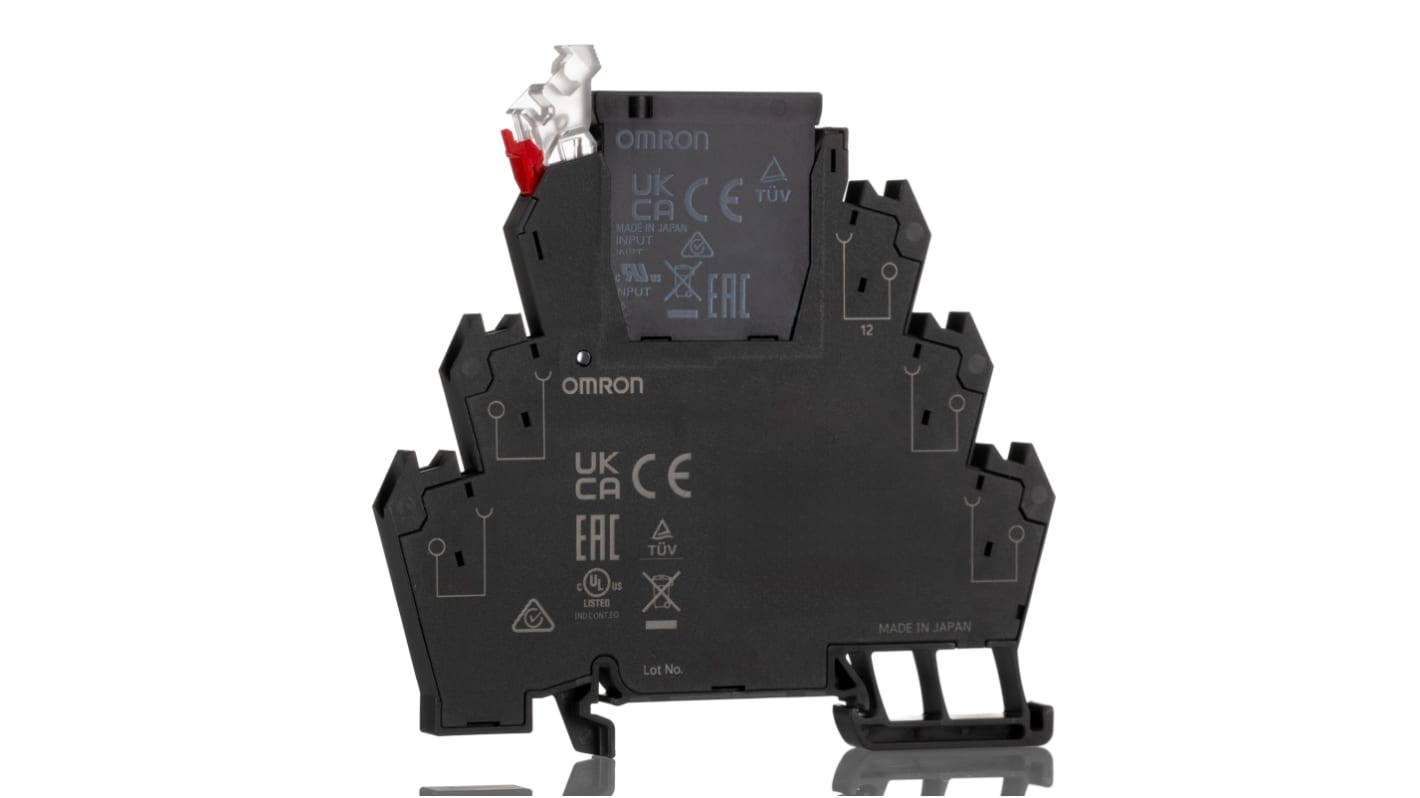

Omron G3RV-ST Series Solid State Interface Relay, 110 V ac Control, 3 A Load, DIN Rail Mount

RS Stock No.:: 271-1896
หมายเลขชิ้นส่วนของผู้ผลิต:: G3RV-ST700-D 110VAC
ผู้ผลิต:: Omron

Omron G3RV-ST Series Solid State Interface Relay, 110 V ac Control, 3 A Load, DIN Rail Mount

ยอดรวมย่อย (1 ชิ้น)*

THB2,377.60

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB2,544.03

(รวมภาษีมูลค่าเพิ่ม)

ส่งฟรีหากซื้อเกิน ฿2,500.00

มีในสต็อก

2 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ

ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง

ชิ้น	ต่อหน่วย
1 +	THB2,377.60

*price indicative

RS Stock No.:: 271-1896
หมายเลขชิ้นส่วนของผู้ผลิต:: G3RV-ST700-D 110VAC
ผู้ผลิต:: Omron

ข้อมูลทางเทคนิค

Technical data sheets

Legislation and Compliance

Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Omron
	Maximum Control Voltage	110 V ac
	Maximum Load Current	3 A
	Mounting Type	DIN Rail
	Maximum Load Voltage	26.4 Vdc
	Minimum Control Voltage	88 V
	Control Voltage Range	88 - 121 V
	Switching Type	High-Speed
	Contact Configuration	SPDT
	Load Voltage Range	3 - 26.4V
	Minimum Load Voltage	3 Vdc
	Terminal Type	Screw
	Number of Poles	1
	Input Current	6.7mA
	Width	6.2mm
	Series	G3RV-ST
	Length	88mm
	Rise Time	6ms
	Height	90mm
	Output Device	Photovoltage Coupler
	Depth	87.1mm
	Minimum Load Current	0.1 mA
	Range	G3RV
	Package Style	Carton Box
	Maximum Operating Temperature	+55°C
	Dimensions	88 x 90 x 6.2mm
	Minimum Operating Temperature	-30°C
	Isolation Voltage	2500V
	Off State Leakage Current	5 mA
	Special Features	60% Space Saving, Easy Maintenance
	Standards Met	CSA C22.2 No.14, EN 62314, IEC 60529, UL
	Maximum Turn On Time	6 ms
	Manufacturer Part No.	G3RV-ST700-D AC110
	Operating Temperature Range	-30 → 55°C

	เลือกทั้งหมด
	Brand Omron
	Maximum Control Voltage 110 V ac
	Maximum Load Current 3 A
	Mounting Type DIN Rail
	Maximum Load Voltage 26.4 Vdc
	Minimum Control Voltage 88 V
	Control Voltage Range 88 - 121 V
	Switching Type High-Speed
	Contact Configuration SPDT
	Load Voltage Range 3 - 26.4V
	Minimum Load Voltage 3 Vdc
	Terminal Type Screw
	Number of Poles 1
	Input Current 6.7mA
	Width 6.2mm
	Series G3RV-ST
	Length 88mm
	Rise Time 6ms
	Height 90mm
	Output Device Photovoltage Coupler
	Depth 87.1mm
	Minimum Load Current 0.1 mA
	Range G3RV
	Package Style Carton Box
	Maximum Operating Temperature +55°C
	Dimensions 88 x 90 x 6.2mm
	Minimum Operating Temperature -30°C
	Isolation Voltage 2500V
	Off State Leakage Current 5 mA
	Special Features 60% Space Saving, Easy Maintenance
	Standards Met CSA C22.2 No.14, EN 62314, IEC 60529, UL
	Maximum Turn On Time 6 ms
	Manufacturer Part No. G3RV-ST700-D AC110
	Operating Temperature Range -30 → 55°C

COO (Country of Origin):: JP

Omron G3RV-ST Series Solid State Interface Relay, 100μA to 3A Output Load Current, DIN Track Mount - G3RV-ST700-D AC110

This solid state interface relay is designed for integration with DIN rail mounting systems and it measures 88x90x6.2mm. The relay operates efficiently within a control voltage range of 88 to 121V AC and can handle load voltages from 3 to 26.4V DC, ensuring compatibility with various systems.

Features & Benefits

• High-speed switching reduces operational delays
• Space-saving design facilitates easy installation
• Photovoltage coupler enhances output device functionality
• Supports 2500V isolation for increased safety
• Operates effectively in extreme temperatures from -30 to +55°C

Applications

• Used for industrial automation and control systems
• Utilised in electrical panel construction and design
• Suitable for control of motors and lighting circuits

Is it suitable for applications requiring a high-speed relay?

Yes, it provides high-speed switching capabilities.

What benefit does the design of the relay serve?

It is designed such that if the release levers were accidentally or unintentionally touched, the wires would not come loose.
