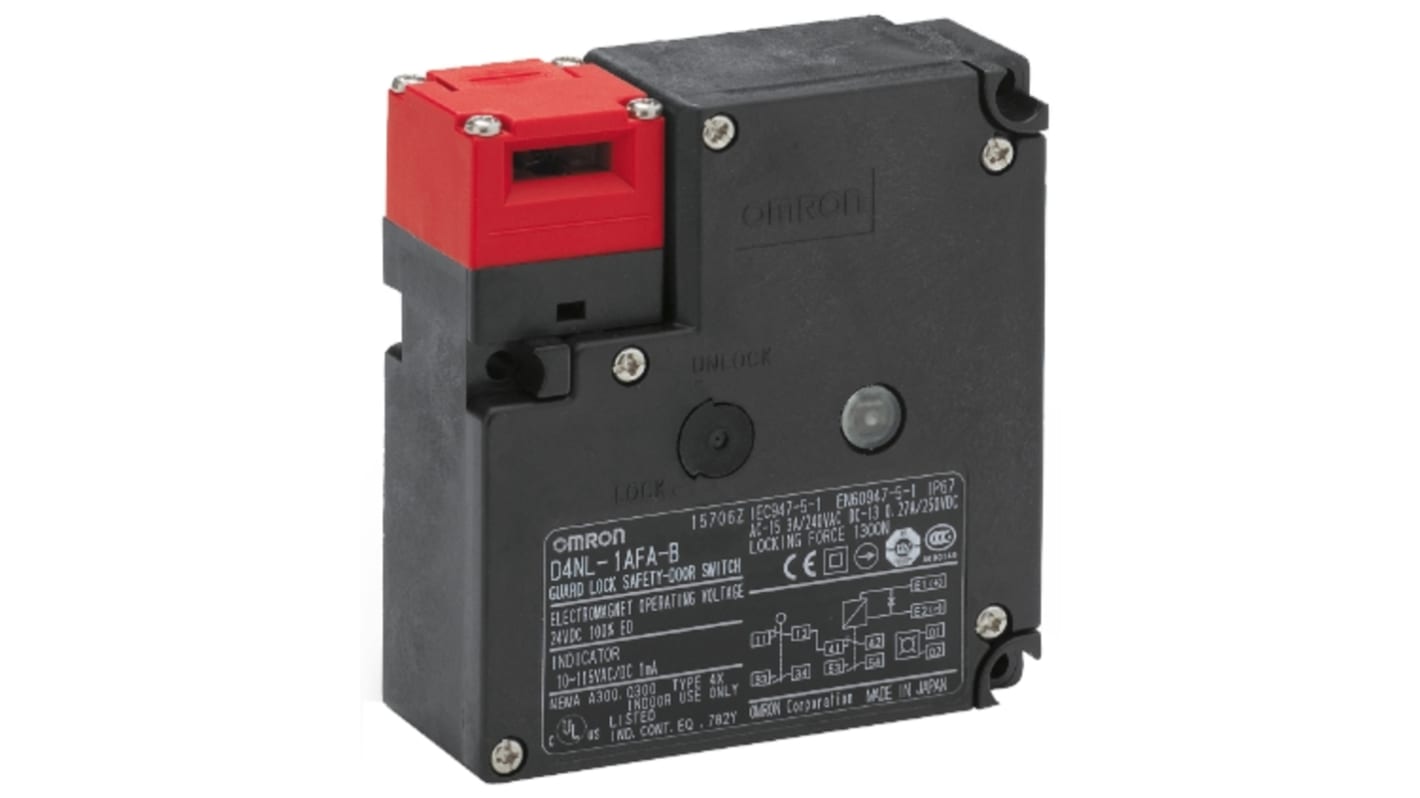

Omron D4NL Series Solenoid Interlock Switch, Power to Unlock

ดูหมวดหมู่นี้

ยอดรวมย่อย (1 ชิ้น)*

THB10,608.39

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB11,350.98

(รวมภาษีมูลค่าเพิ่ม)

Add to Basket
เลือกหรือพิมพ์จำนวน
มีในสต็อก
  • 22 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น
ต่อหน่วย
1 +THB10,608.39

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:
746-7289
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
D4NL-4CFA-B4
ผู้ผลิต:
Omron
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

Omron

Product Type

Solenoid Interlock Switch

Actuator Included

No

Series

D4NL

Safety Contacts

2 NC

Conduit Entry

M20

Terminal Type

Screw

Number of Auxiliary Contacts

2

Power to Lock/Unlock

Power to Unlock

Contact Current

50mA

Contact DC Voltage

250V

Housing Material

Plastic

Contact AC Voltage

110V ac

Length

88.5mm

IP Rating

IP67

Width

95mm

Standards/Approvals

CE, UL, UL508, EN60947-5-1, CSA C22.2 No.14

Hazardous Area Certification

No

Depth

35.5mm

Supply Voltage

24V dc

COO (Country of Origin):
JP

Omron D4NL Series Solenoid Interlock Switch, IP67, 35.5mm Width - D4NL-4CFA-B4


This solenoid interlock switch is a guarded-door safety device designed for industrial automation and access control. It combines a solenoid-operated locking mechanism with auxiliary monitoring to manage hazardous access during machine operation. The unit is intended for indoor factory use where electromagnetic locking and safety-contact monitoring are required to control personnel access and machine states.

Features & Benefits


• IP67 protection for ingress resistance and harsh environments
• Two NC safety contacts for direct-opening safety circuits
• Power-to-lock/unlock capability for controlled access management
• Contact ratings accommodate 110V AC and 250V DC circuit use
• Compact 88.5mm length for space-constrained installations

**Applications**


• Suitable for interlocking machine guards on production lines
• Ideal for safety doors on material-handling equipment
• Used with control contactors in motor protection circuits
• Can be used for perimeter access on robotic cells
• Suitable for retrofit replacements where M20 conduit is present

What conduit entry does it support for cable routing?


The device provides an M20 conduit opening to accept standard M20 cable glands and connectors.

Which electrical loads are compatible with the safety contacts?


The auxiliary contacts handle microloads and standard loads with a contact current rating of 50mA for low-current circuits.

How are indicators and auxiliary circuits recommended to be wired?


Indicators should be connected in parallel to auxiliary outputs or dedicated indicator terminals

avoid paralleling with direct-opening contacts to prevent short-circuit–induced malfunctions.

Are there specific Terminal fastening requirements during installation?


Terminal screws require a tightening torque range to ensure reliable connections and prevent loose strands

use appropriate crimp terminals for AWG20–AWG18 conductors.

Note

Actuators sold separately.
Stock nos. 746-7289 and 746-7132 have a special release key included.

Approvals

cULus, TUV, CE, CCC

Standards

IEC/EN60947-5-1
