Weller Electric Soldering Iron, 24 V, 80 W, for use with WS81/WD/WT/WR

ดู Soldering Irons ทั้งหมด

ยอดรวมย่อย (1 ชิ้น)*

THB10,765.63

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB11,519.22

(รวมภาษีมูลค่าเพิ่ม)

Add to Basket
เลือกหรือพิมพ์จำนวน
มีในสต็อก
  • 28 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น
ต่อหน่วย
1 +THB10,765.63

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:
405-3395
Distrelec หมายเลขบทความ:
301-64-320
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
T0052916699N
ผู้ผลิต:
Weller
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

Weller

Power Type

Electric

Product Type

Soldering Iron

Sub Type

Soldering Iron

Power Rating

80W

Plug Type

Type G, Type F

Tip Series

LT

For Use With

WS81/WD/WT/WR

Series

WT

Standards/Approvals

No

Soldering iron kit with tube for smoke extraction


FE75, 80 W, Fume Extraction Soldering Iron.

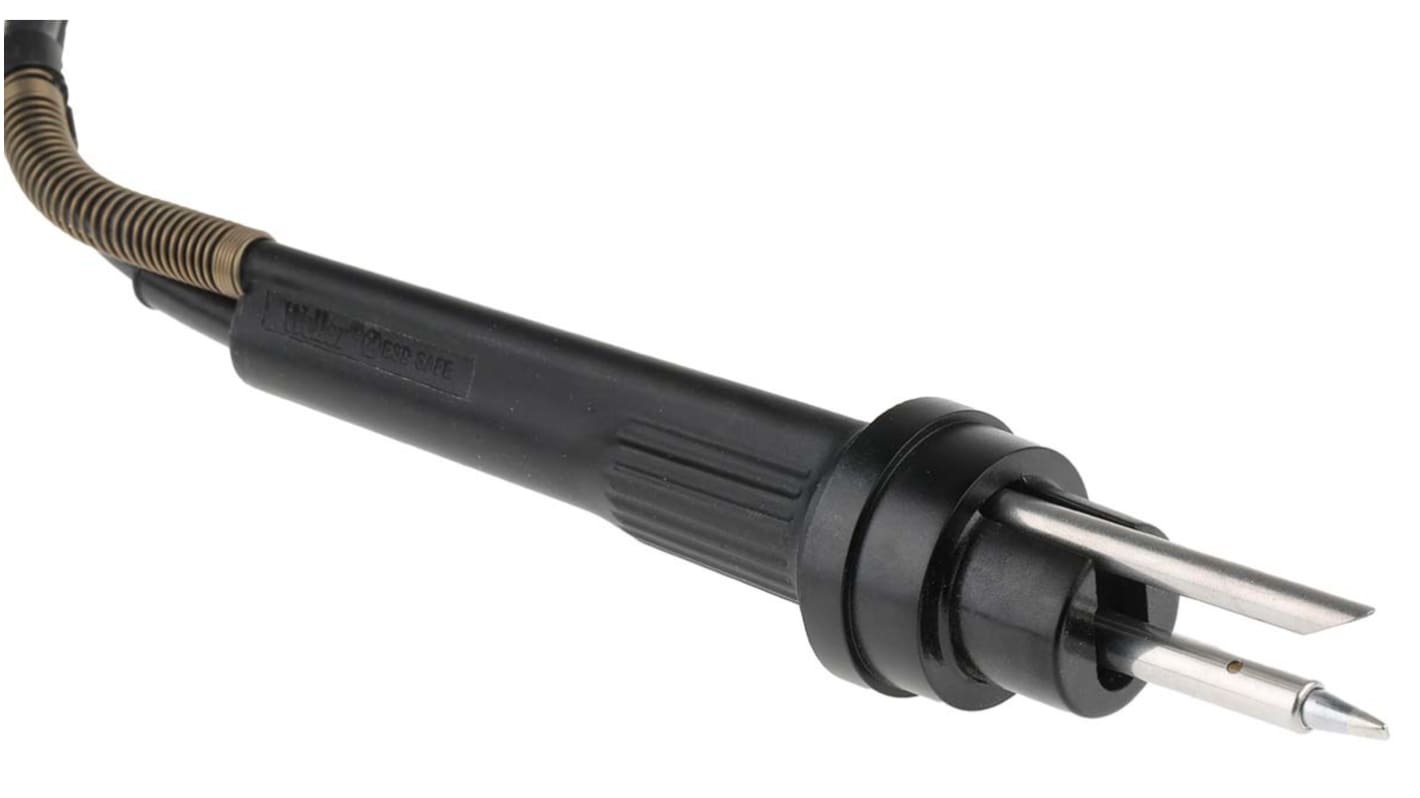

From Weller this is the FE75 Fume Extraction soldering iron complete with an integrated extraction tube assisting in removing the solder fumes from where you are working. The fume extraction tube will not affect the solder temperature at the solder tip therefore not reduce the required outcome of the solder work. The soldering irons have been designed to work with the Zero-Smog fume extraction systems. The tube, extracting the solder fumes, is integrated with the handle of the soldering iron and sits over the solder tip. If you are using the iron when soldering in hard to reach areas the extraction tube can be retracted to allow better access plus, allows cleaning of the tube and soldering tips. The soldering iron heats up to the required temperature within 10 seconds to a maximum temperature of 450°C and includes silver-line heating technology controlling the temperature through suitable temperature-controlled tips.

Features and Benefits.


  • FE75 Soldering iron with fume extraction hose.

  • Can be used with Zero-smog fume extraction systems.

  • Voltage 24 V.

  • Power of 80 W.

  • Heat-up time 10 seconds.

  • Silver-line heating technology (temperature controlled).

  • Temperature range 50°C to 450°C.

  • Tip type HPB.

  • Tip range LT Series.

  • Ergonomic handle.

  • Retractable hose.

  • Easy to clean and maintain.

  • ESD Safe.

  • Can be used with Weller WFE vacuum cleaners (compressed air addition required) or WFE-P (integrated pump).

    • What's included?


  • FE75 Soldering iron.

  • Fame proof extraction hose (approx. 2.5 m).

  • LT B Chisel soldering tip, 2.4 mm x 0.8 mm – stock number 2778266.

    • Typical Applications.


  • Electronics. General soldering.

  • Where fume extraction is important.

    • Weller Solder Iron Tips Available.


  • LT-1S Straight Conical 0.2mm, stock number 2921965.

  • LT-1L Straight Conical 0.2mm, stock number 3610739.

  • LT-1LX Bent Conical 0.2mm, stock number 3610751.

  • LT-1 Straight Conical 0.25 mm, stock number 5186171.

  • LT-1X Bent Conical 0.4mm, stock number 3610767.

  • LT-1SLX Bent Conical 0.4mm. stock number 3610773.
    • ;
  • LT-S Straight Conical 0.4mm, stock number 3893057.

  • LT-H Straight Chisel 0.8mm, stock number 2922047.

  • LT HX Bent Chisel 0.8mm, stock number 4824535.

  • LT-4X Bent Chisel 1.2mm, stock number 3610795.

  • LT-K Straight Chisel 1.2mm, stock number 2922053.

  • LT 4 Straight Hoof 1.2 mm, stock number 6246460.

  • LT-A Straight Chisel 1.6mm, stock number 2921971.
    • ;
  • LT AS Straight Conical, 1.6mm, stock number 2921987.

  • LT-AX Bent Chisel 1.6mm, stock number 3610789.

  • LT-L Straight Chisel 2mm, stock number 3610717.

  • SMD LT-GW Straight Hoof 2.3mm, stock number 2922031.

  • LT BX Bent Chisel 2.4mm, stock number 4824507.

  • LT-B Straight Chisel 2.4mm, stock number 2778266.
    • ;
  • LT BB Straight Knife 2.4mm, stock number 6531465.

  • LT CC Straight Hoof 3.2mm, stock number 6531471.

  • LT CS Straight Conical 3.2mm, stock number 2922019.

  • LT-C Straight Chisel 3.2mm, stock number 2922003.

  • LT-M Straight Chisel 3.2mm, stock number 3610723.

  • LT D Straight Chisel 4.6mm, stock number 5096517.

    • Other Soldering Irons Available.


  • FE 75, 80 W, for WRS Rework systems.

  • FE50M, 24 V, Stock number 518387.

  • FE50, 50 W, 24 V, stock number 1887167.

    • Power Supply Units Available.


  • WR 2, 300 W, 230 V, stock number 7192608.

  • PU 61, 80 W, 230 V, stock number 4310244.

    • Station Irons - Weller


    Note

    A spring/funnel set for irons equipped with extraction systems is also available separately.
