Banner SG-TL70 Series Yellow Steady, Flashing Effect Beacon Tower, LED Bulb 30V dc, DC, IP65
- RS Stock No.:
- 179-7410
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- SG-TL70-Y
- ผู้ผลิต:
- Banner
ยอดรวมย่อย (1 ชิ้น)*
THB3,722.77
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB3,983.36
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
หมดสต็อกชั่วคราว
- 4 ชิ้นจะส่งได้หลังจากวันที่ 15 มิถุนายน 2569 ไปอีกประมาณ 7 วันทำการ
- เพิ่มอีก 4 ชิ้นจะส่งได้หลังจากวันที่ 22 มิถุนายน 2569 ไปอีกประมาณ 7 วันทำการ
- เพิ่มอีก 3 ชิ้นจะส่งได้หลังจากวันที่ 06 กรกฎาคม 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB3,722.77 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 179-7410
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- SG-TL70-Y
- ผู้ผลิต:
- Banner
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Banner | |
| Series | SG-TL70 | |
| Product Type | Beacon Tower | |
| Minimum Sound Level | 84dB | |
| Component Type | Beacon | |
| Multifunction | Yes | |
| Current Type | DC | |
| Mount Type | Direct | |
| Sounder Type | Alarm | |
| Current Consumption | 420mA | |
| Light Effect | Steady, Flashing | |
| Lens Colour | Yellow | |
| Lamp Included | Yes | |
| Bulb Type | LED | |
| Terminal Type | Press Fit | |
| Maximum Supply Voltage | 30V dc | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 50°C | |
| Maximum Sound Level | 92dB | |
| Height | 50mm | |
| Standards/Approvals | CE | |
| Hazardous Area Certification | No | |
| Base Diameter | 70mm | |
| IP Rating | IP65 | |
| Housing Colour | Black | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Banner | ||
Series SG-TL70 | ||
Product Type Beacon Tower | ||
Minimum Sound Level 84dB | ||
Component Type Beacon | ||
Multifunction Yes | ||
Current Type DC | ||
Mount Type Direct | ||
Sounder Type Alarm | ||
Current Consumption 420mA | ||
Light Effect Steady, Flashing | ||
Lens Colour Yellow | ||
Lamp Included Yes | ||
Bulb Type LED | ||
Terminal Type Press Fit | ||
Maximum Supply Voltage 30V dc | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 50°C | ||
Maximum Sound Level 92dB | ||
Height 50mm | ||
Standards/Approvals CE | ||
Hazardous Area Certification No | ||
Base Diameter 70mm | ||
IP Rating IP65 | ||
Housing Colour Black | ||

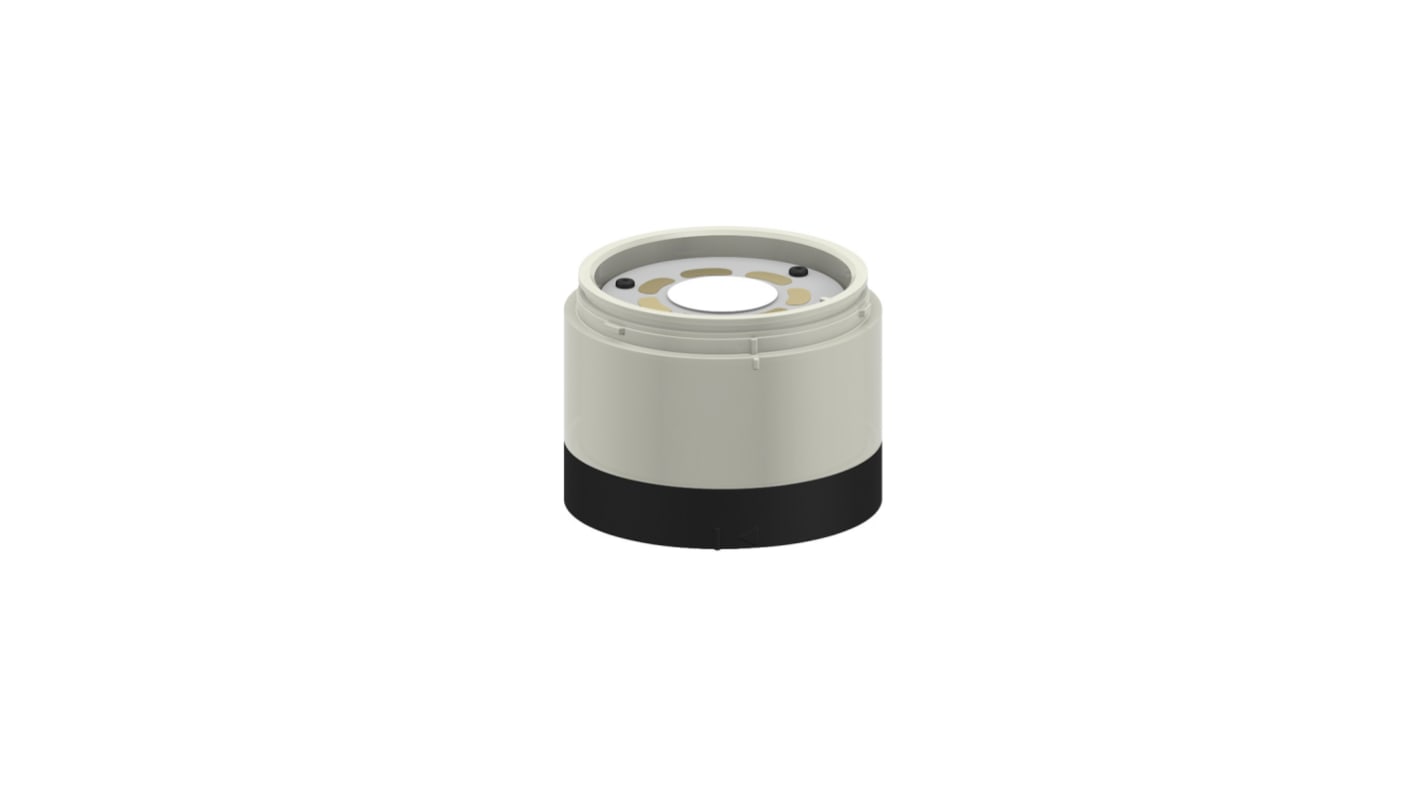

Banner's TL70 Tower Light is a 70 mm, modular LED indicator with extremely bright and uniform light. The modularity gives the user flexibility to customize tower lights as needed and change positions in the field. The TL70 is also available preassembled for easy installation
Light segments have user-selectable solid ON or flashing
Up to six colors, or five colors plus audible, in one device
Rugged, water-resistant housing with UV-stabilized material
Bright, uniform indicator segments appear gray when off to eliminate false indication from ambient light
Several connection options to choose from including M12/Euro-style quick disconnect, cabled, and terminal-wired
