MikroElektronika Tilt 3 Click Tilt Sensor Add On Board for DSBA1P mikroBUS socket

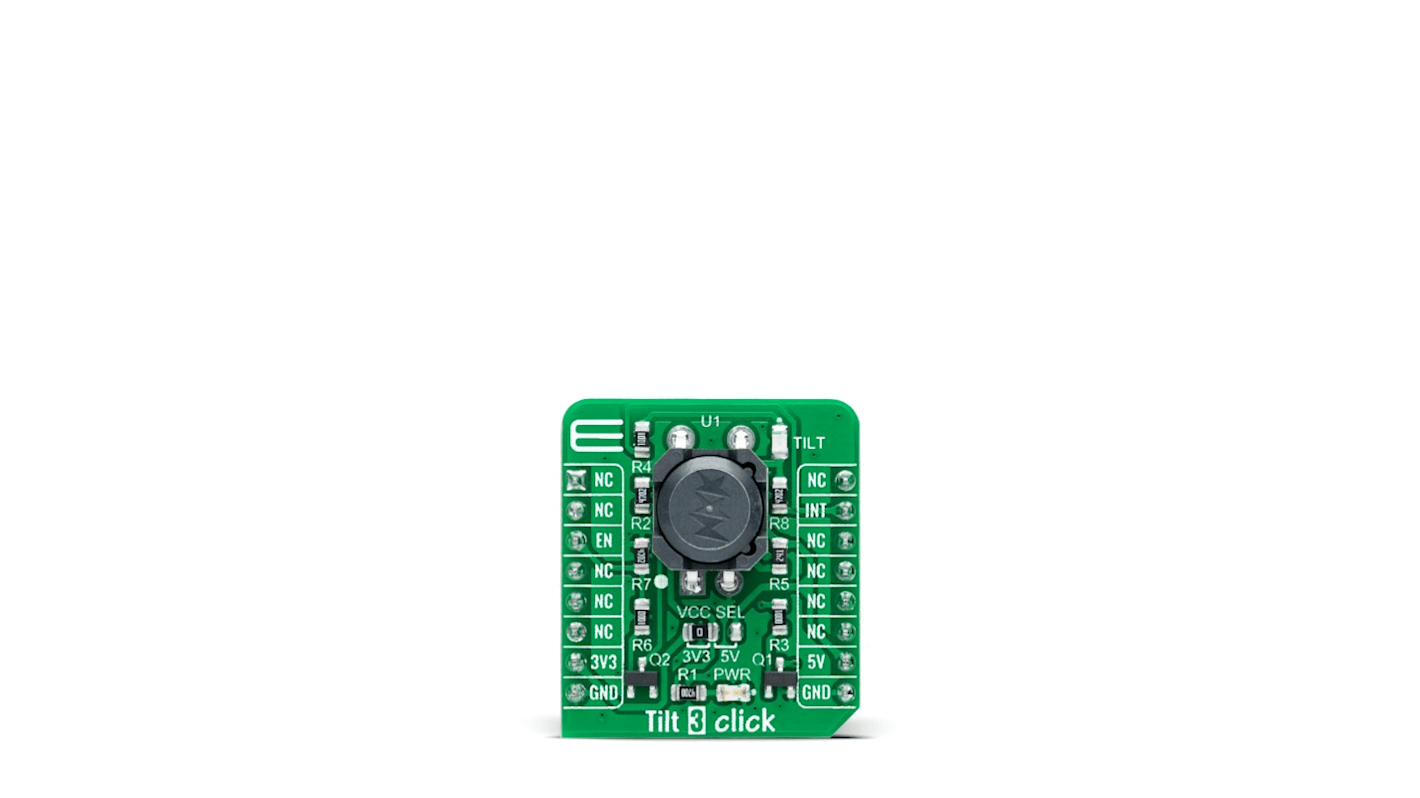

The The MikroElektronika's Tilt 3 Click is a compact add on board used for measuring the tilt in multiple axes in relation to an absolute level plane. This board features the DSBA1P, a tilt sensor switch that breaks the circuit when tilted to an angle from ±30° to ±60° from NKK Switches. The DSBA1P is a non contact switch with an embedded photo interrupter that ensures high reliability, with a 1 million operation minimum. It is also very durable, sealed in the DSB construction for protection from environmental elements. This Click board is suitable for many applications where orientation or inclination detection is a crucial factor.

Low power consumption
Operation angle from ±30° to ±60°1 million operation minimum
Very durable
Sealed in the DSB construction for protection from environmental elements
Possesses exceeded angle threshold indication
