STMicroelectronics LIS2DH12 3-Axis Accelerometer Adapter Board for Standard DIL 24 Socket Adapter Board Standard DIL24

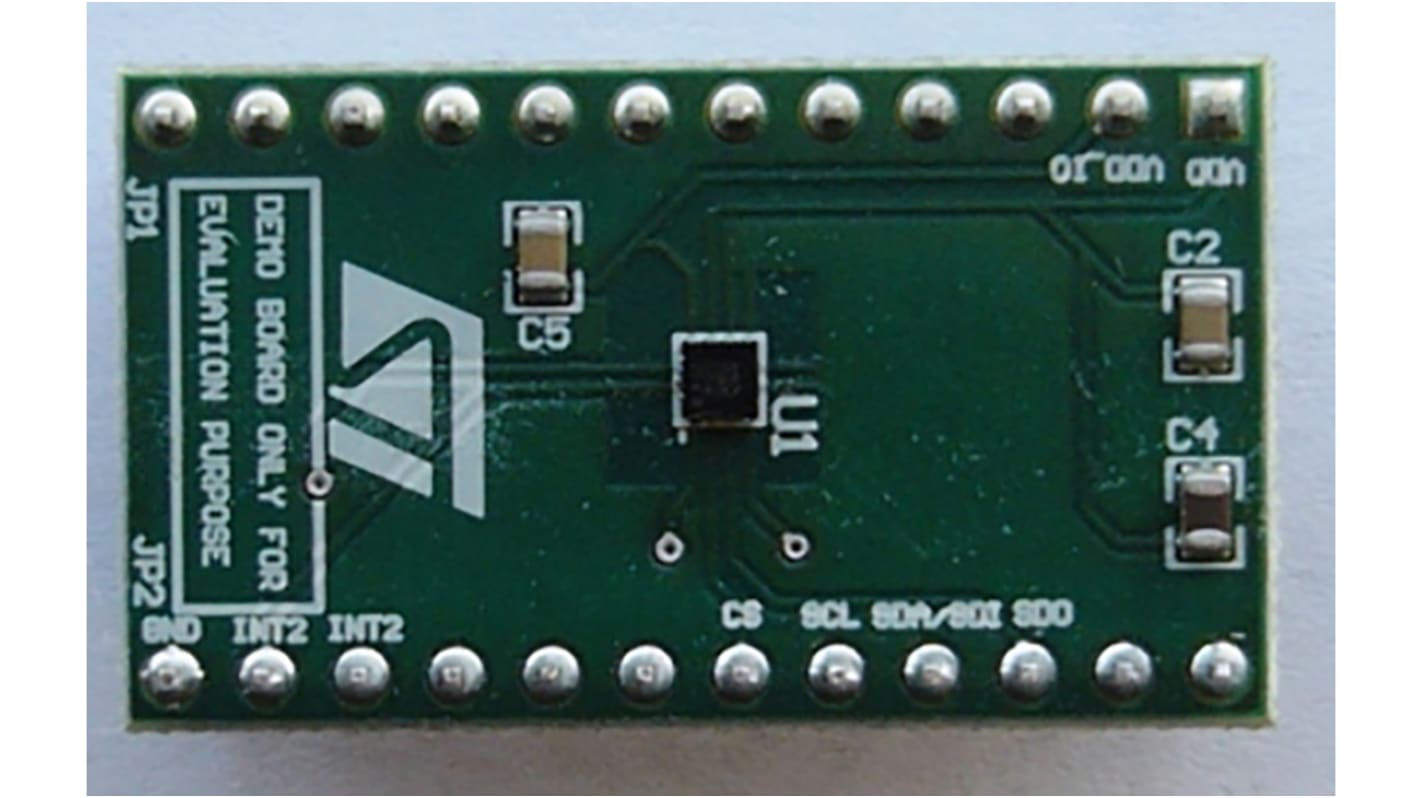

The STEVAL-MKI151V1 is an adapter board
designed to facilitate the evaluation of MEMS
devices in the LIS2DH12 product family. The
board offers an effective solution for fast system
prototyping and device evaluation directly within
the user’s own application.
The STEVAL-MKI151V1 can be plugged into a
standard DIL 24 socket. The adapter provides the
complete LIS2DH12 pinout and comes ready-touse with the required decoupling capacitors on
the VDD power supply line.
This adapter is supported by STEVAL-MKI109V2,
which is a motherboard including a highperformance 32-bit microcontroller which
functions as a bridge between the sensor and a
PC, on which it is possible to use the
downloadable graphical user interface (Unico
GUI), or dedicated software routines for
customized applications.
