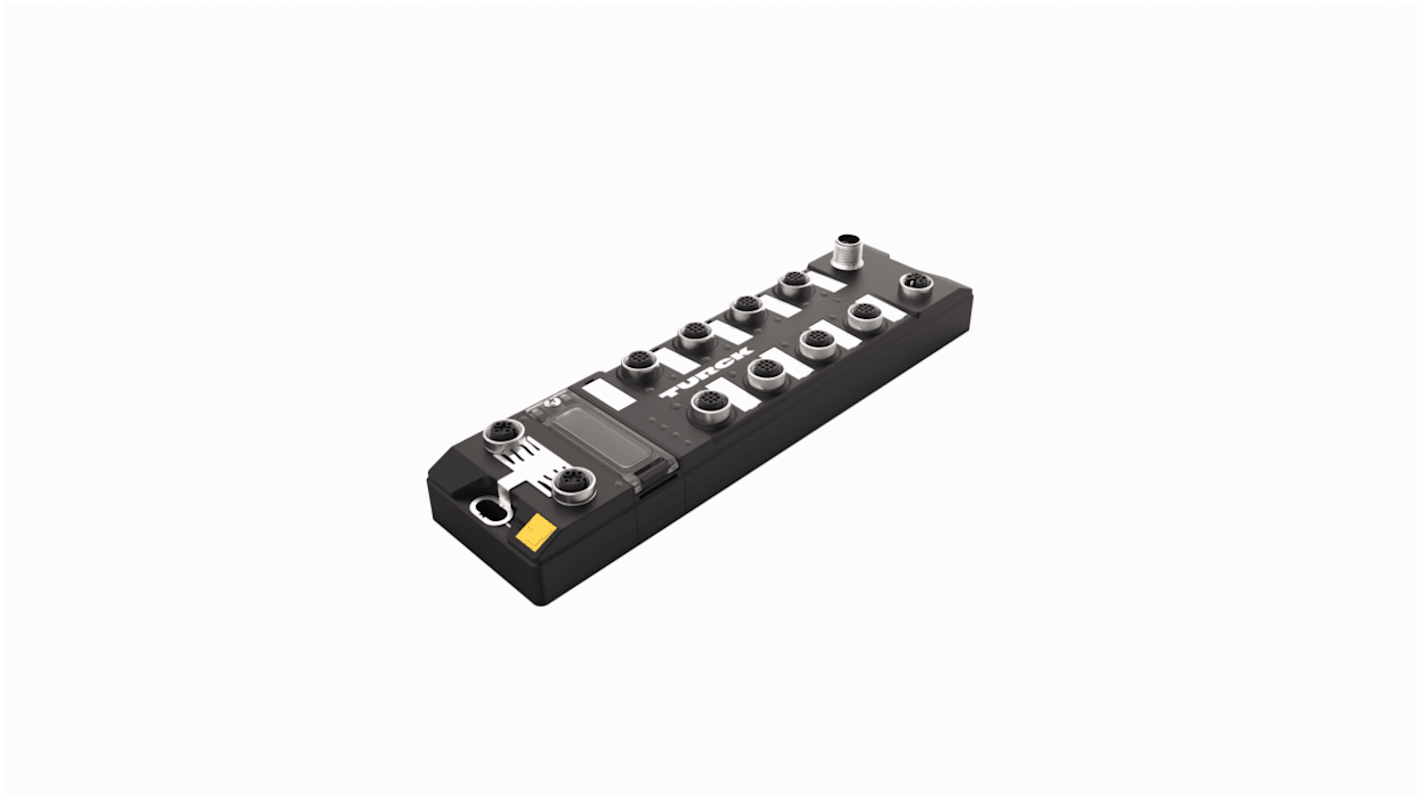

Turck TBEN-L Series I/O module

The Turck compact multiprotocol I/O module for Ethernet has 16 universal digital channels which is configurable as PNP inputs. It has 4-pin 2 x M12 D-coded Ethernet fieldbus connection and M12, L-coded connector for power supply, input diagnostics per port and provide 2 A maximum per output. It has glass fibre reinforced housing and -40 °C to +70 °C operating temperature range. It has separated power groups for safety shutdown and input diagnostics per port.

IP65, IP67 and IP69K rated
Integrated Ethernet switch
Supports 10 Mbps / 100 Mbps
Shock and vibration tested
Fully potted module electronics
Max. 2 A per output
Output diagnostics per channel
Two freely selectable digital channels per port
