RS PRO Female 8 way Straight to Unterminated Sensor Actuator Cable, 500 mm

ดู Sensor & Actuator Cables ทั้งหมด
มีส่วนลดเมื่อซื้อจำนวนมาก

ยอดรวมย่อย (1 ชิ้น)*

THB613.75

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB656.71

(รวมภาษีมูลค่าเพิ่ม)

Add to Basket
เลือกหรือพิมพ์จำนวน
ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้ - โปรดกลับมาตรวจสอบอีกครั้งภายหลัง

ชิ้น
ต่อหน่วย
1 - 9THB613.75
10 - 24THB601.60
25 - 99THB583.62
100 +THB525.32

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:
250-0736
ผู้ผลิต:
RS PRO
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

RS PRO

Product Type

Sensor Actuator Cable

Series

CPF12

Jacket Material

Polyvinyl Chloride

Cable Length

500mm

Number of Contacts A

8

Connector Gender A

Female

Connector Type A

Straight

Connector Type B

Unterminated

Voltage

30V

IP Rating

IP67

Standards/Approvals

IEC

Coding

A

COO (Country of Origin):
IN

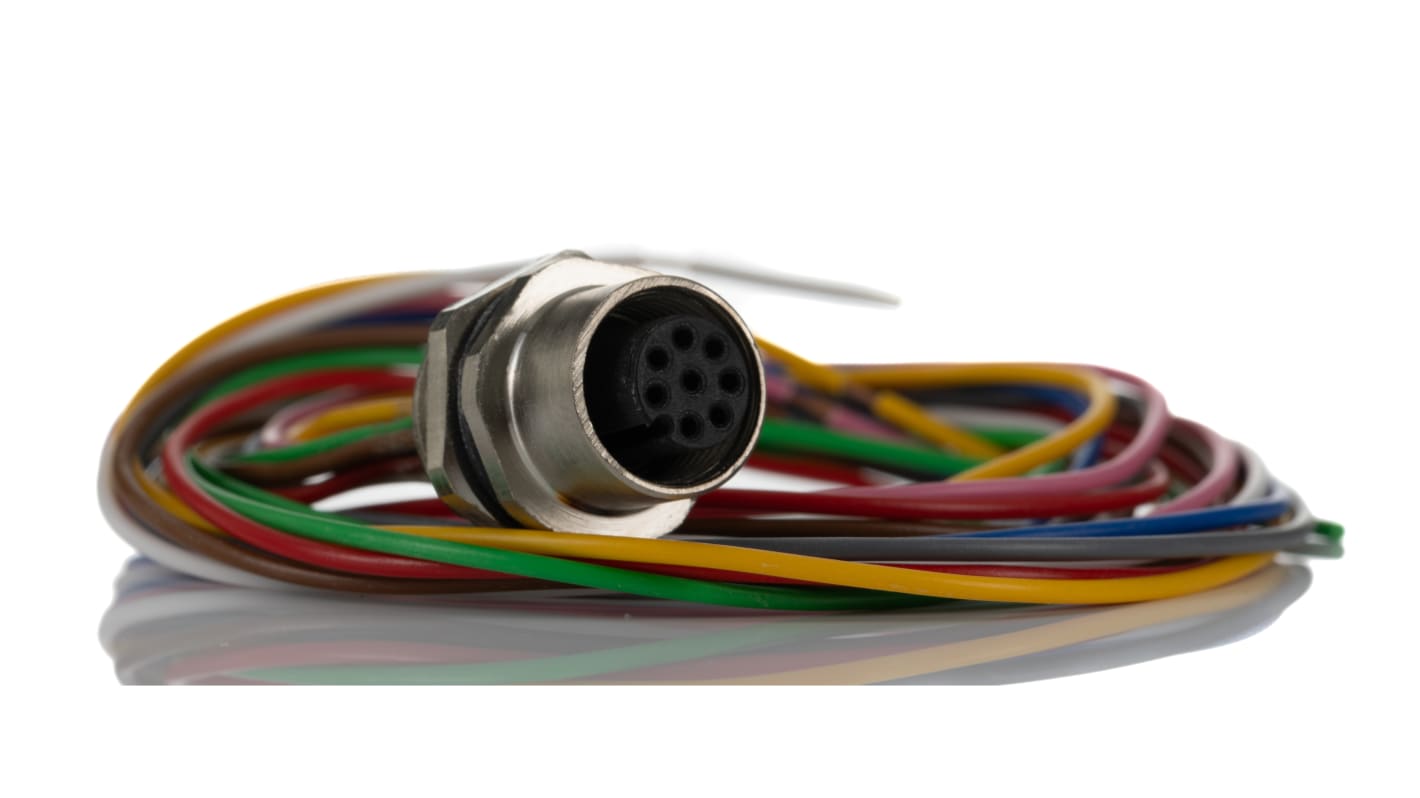

RS PRO 8 Core Female M12 Connector Assembly (Unterminated)


The RS PRO M12 single-ended multicore cable assembly is designed for front panel mounting and features 8 x 500mm partially stripped wires for quick and easy custom installation, and a tough and durable design for the safe and reliable transmission of data in harsh industrial settings.;Featuring a Brass Nickel-Plated housing with a secure Neoprene O-ring for peace of mind from moisture and liquid penetration, Gold plated contacts for excellent data transmission and each wire is wrapped in Polyvinyl Chloride (PVC) for easy and safe termination. The RS PRO multicore cable assembly is built for the industrial environment.

Features and benefits


  • M12 connector to unterminated wires

  • M16 x 1.5mm Clamp Nut

  • Shielded A coded cable

  • High insulation resistance of at least 100 MΩ protects equipment against electrostatic discharge

  • Neoprene O-ring to keep out liquid and moisture

  • Nickel-plated Brass housing

  • 8 Core cable

  • Length 500mm

  • Operating temperature range from -25°C to +75˚C

  • Voltage rating of 30V

  • Brass contacts with Gold Flash plating

  • Current rating of 2A

  • IP67 rating

    • Typical Applications


    Ideal for industrial use in automation and sensor equipment in a wide range of applications including:

  • Instrumentation

  • Process control

  • Robotics

  • Assembly lines

  • Factory automation

  • Industrial automation

    • Approvals and Standards: IEC 61076-2-101

    Why RS PRO?


    RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
