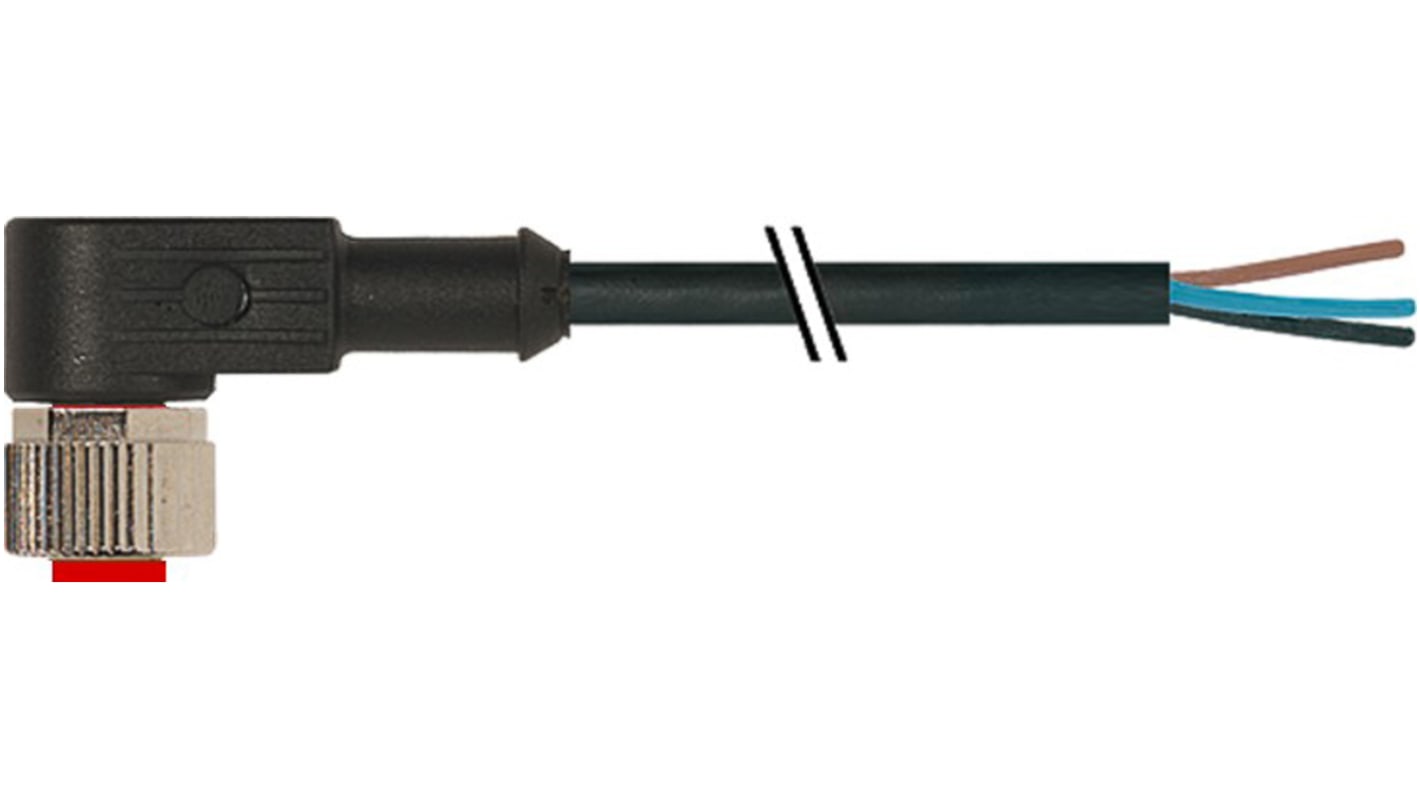

RS PRO Right Angle Female 3 way M12 to Unterminated Sensor Actuator Cable, 2m
- RS Stock No.:
- 174-7853
- ผู้ผลิต / Manufacturer:
- RS PRO
ขออภัย เราไม่สามารถตรวจสอบสต็อคสินค้าได้ในเวลานี้ โปรดรีเฟรชเพจอีกครั้ง
เพิ่ม / Added
ราคา / Price Each
THB391.83
(exc. VAT)
THB419.26
(inc. VAT)
| Units | Per unit |
| 1 - 19 | THB391.83 |
| 20 - 49 | THB376.17 |
| 50 - 99 | THB360.49 |
| 100 + | THB352.65 |
- RS Stock No.:
- 174-7853
- ผู้ผลิต / Manufacturer:
- RS PRO
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
รายละเอียดสินค้า / Product Details
M12, 3 pole, 90°, female connector to open ended lead
Knurled and hexagonal combination nut ensures secure connection
Integrated corrugated conduit locking system
Available in lengths:
2 Meters (RS 174-7853)
5 Metres (RS 174-7854)
Integrated corrugated conduit locking system
Available in lengths:
2 Meters (RS 174-7853)
5 Metres (RS 174-7854)
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Cross Sectional Area | 0.34 mm² |
| Number of Cores | 3 |
| Sheath Material | PUR |
| Length | 2m |
| Sheath Colour | Black |
| Connector 1 Number of Contacts | 3 |
| Connector 1 Orientation | Right Angle |
| Connector 1 Gender | Female |
| Connector 1 | M12 |
| Connector 2 | Unterminated |
| Shielded/Unshielded | Unshielded |
| Current Rating | 4 A |
| Voltage Rating | 250 V ac/dc |
| IP Rating | IP65, IP67 |
| Outer Diameter | 15mm |
| Insulation Material | PVC |
| Connector 1 Housing Gender | Female |
| American Wire Gauge | 22 AWG |
| Conductor Material | Copper |
| Minimum Bend Radius | 10 x 15 mm |
| Operating Temperature Range | -25 → +85 °C |
| Minimum Operating Temperature | -25°C |
| Cable Shape | Round |
| Maximum Operating Temperature | +85°C |
| Standards Met | cLus Certified, CSA, cULus, DIN VDE 0298-4, EN 60529, IEC 60664-1, UL |
| Oil Resistant | Yes |
