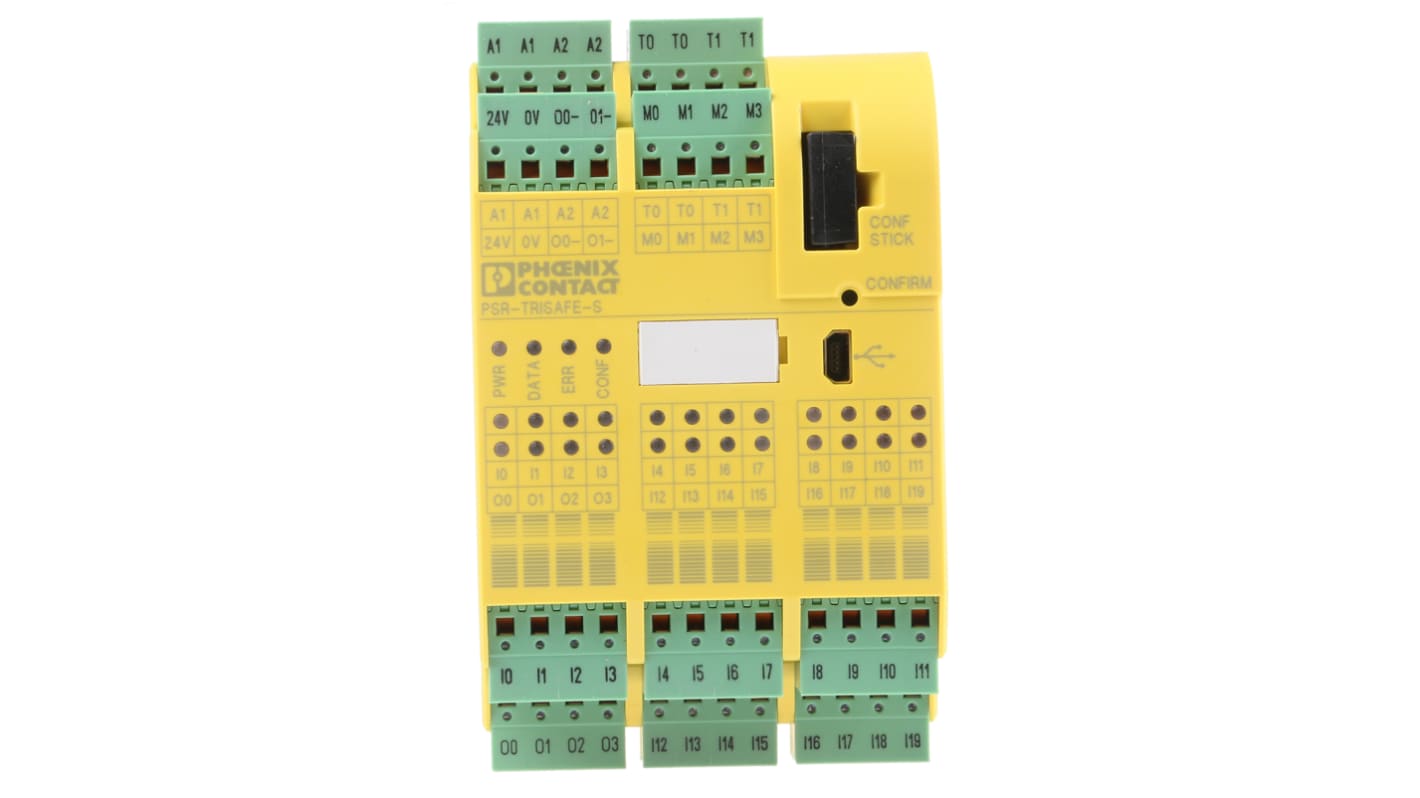

Phoenix Contact PSR-TRISAFE PSR-SPP- 24DC/TS/S Series Safety Controller, 20 Safety Inputs, 6 Safety Outputs, 24 V dc
- RS Stock No.:
- 666-7126
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 2986232
- ผู้ผลิต:
- Phoenix Contact
ไม่พร้อมจำหน่าย
RS จะไม่สต็อกสินค้านี้อีกต่อไป
- RS Stock No.:
- 666-7126
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 2986232
- ผู้ผลิต:
- Phoenix Contact
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Phoenix Contact | |
| Range | PSR-TRISAFE | |
| Series | PSR-SPP- 24DC/TS/S | |
| Number of Safety Inputs | 20 | |
| Number of Safety Outputs | 6 | |
| Safety Category | 4 | |
| SIL | SIL 3 | |
| Supply Voltage | 24 V dc | |
| Contact Current Rating | 2 A | |
| Contact Voltage Rating | 24 V dc | |
| IP Rating | IP20, IP54 | |
| Width | 67.5mm | |
| Depth | 114.5mm | |
| Length | 114.5mm | |
| Dimensions | 114.5 x 67.5 x 112 mm | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Phoenix Contact | ||
Range PSR-TRISAFE | ||
Series PSR-SPP- 24DC/TS/S | ||
Number of Safety Inputs 20 | ||
Number of Safety Outputs 6 | ||
Safety Category 4 | ||
SIL SIL 3 | ||
Supply Voltage 24 V dc | ||
Contact Current Rating 2 A | ||
Contact Voltage Rating 24 V dc | ||
IP Rating IP20, IP54 | ||
Width 67.5mm | ||
Depth 114.5mm | ||
Length 114.5mm | ||
Dimensions 114.5 x 67.5 x 112 mm | ||
- COO (Country of Origin):
- DE
Phoenix Contact PSR-SPP- 24DC/TS/S Series Safety Controller, 2A Contact Current Rating, 24V DC Contact Voltage Rating - 2986232
This safety controller by Phoenix Contact is a versatile module designed for various safety functions in automation, electronics, and mechanical industries. With a supply voltage of 24V DC and SIL 3 safety rating, it ensures reliable performance in critical applications.
Features & Benefits
• Freely configurable with 20 safe inputs and 6 safe outputs
• Compact design with dimensions of 114.5 x 67.5 x 112 mm
• IP20 and IP54 rated for protection against dust and water ingress
• Quick start-up with comprehensive simulation and test functions
• Compact design with dimensions of 114.5 x 67.5 x 112 mm
• IP20 and IP54 rated for protection against dust and water ingress
• Quick start-up with comprehensive simulation and test functions
Applications
• Monitoring emergency stops in manufacturing processes
• Safeguarding access points in industrial machinery
• Ensuring safe operation of light curtains and safety sensors
• Safeguarding access points in industrial machinery
• Ensuring safe operation of light curtains and safety sensors
Can it be used to monitor multiple safety inputs?
Yes, it comes with 20 safe inputs to monitor various safety functions.
Will it work in harsh industrial environments?
With an IP20 and IP54 rating, it is suitable for use in challenging conditions.
Is it easy to configure without complex programming?
Yes, the module allows easy graphical configuration for quick setup.
Can it be integrated with fieldbus gateways for diagnostics?
Yes, it offers the option for connecting fieldbus gateways for enhanced functionality.
Is the module suitable for applications requiring SIL 3 safety integrity level?
Yes, it complies with SIL 3 standards for critical safety functions.
