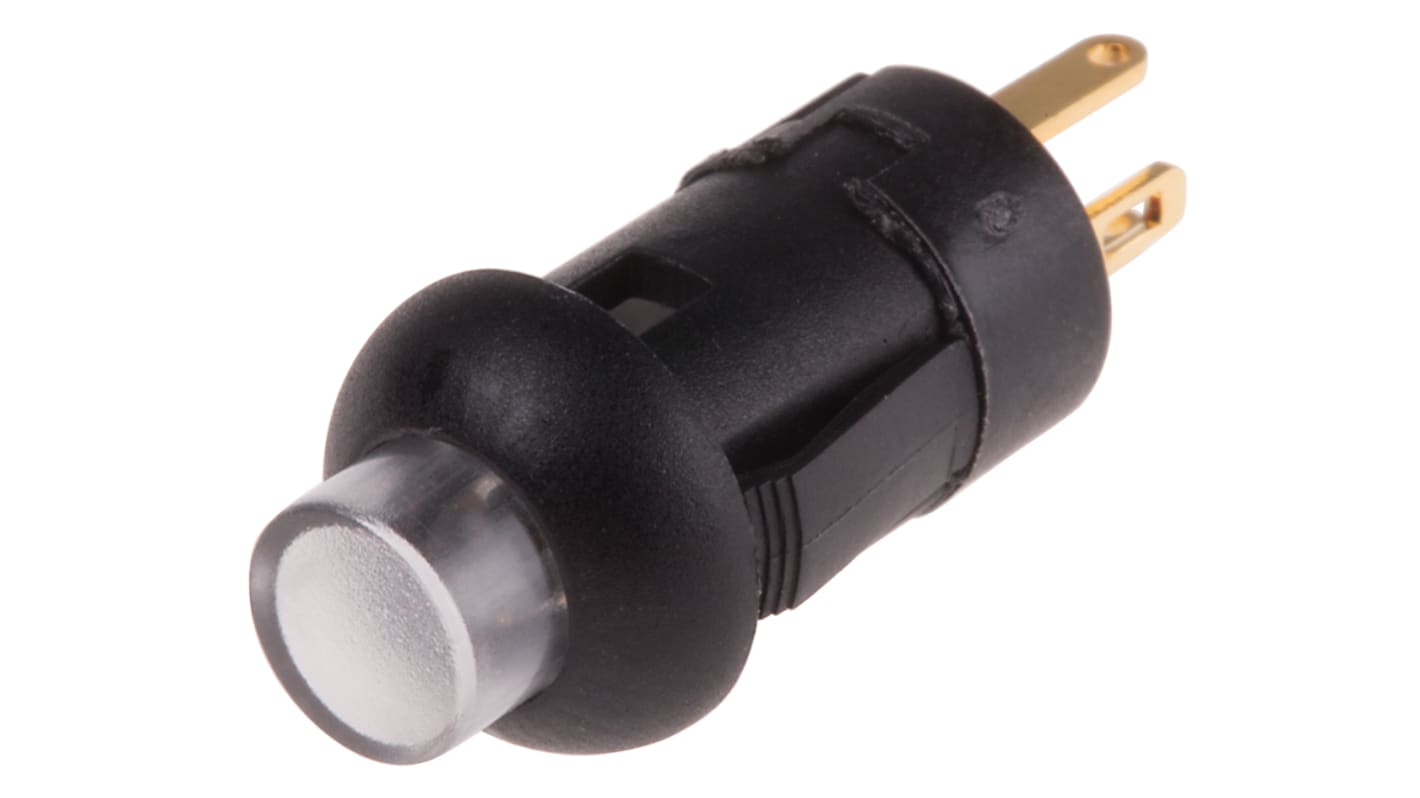

RS PRO Illuminated Miniature Push Button Switch, Momentary, PCB, 8 mm Cutout, SPST, Blue LED, 30 V dc 30 V ac
- RS Stock No.:
- 820-7537
- ผู้ผลิต:
- RS PRO
รูปภาพประกอบสินค้าเป็นเพียงรูปภาพใกล้เคียงเท่านั้น กรุณาอ่านรายละเอียดสินค้า
มีส่วนลดเมื่อซื้อจำนวนมาก
ยอดรวมย่อย (1 ชิ้น)*
THB138.24
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB147.92
(รวมภาษีมูลค่าเพิ่ม)
ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้ - โปรดกลับมาตรวจสอบอีกครั้งภายหลัง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 - 24 | THB138.24 |
| 25 - 49 | THB121.66 |
| 50 - 99 | THB109.63 |
| 100 - 199 | THB99.26 |
| 200 + | THB81.69 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 820-7537
- ผู้ผลิต:
- RS PRO
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | RS PRO | |
| Switch Operation | Momentary | |
| Product Type | Miniature Push Button Switch | |
| Actuator Colour | Clear | |
| Illuminated | Yes | |
| Panel Cutout Size | 8 mm | |
| Mount Type | PCB | |
| Contact Configuration | SPST | |
| LED Colour | Blue | |
| Terminal Type | PCB Pin | |
| Contact AC Voltage | 30V ac | |
| Actuator Style | Cap | |
| Contact DC Voltage | 30V dc | |
| Maximum Operating Temperature | 85°C | |
| Switch Configuration | SPST | |
| Standards/Approvals | No | |
| Switch Contact Current | 100mA | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand RS PRO | ||
Switch Operation Momentary | ||
Product Type Miniature Push Button Switch | ||
Actuator Colour Clear | ||
Illuminated Yes | ||
Panel Cutout Size 8 mm | ||
Mount Type PCB | ||
Contact Configuration SPST | ||
LED Colour Blue | ||
Terminal Type PCB Pin | ||
Contact AC Voltage 30V ac | ||
Actuator Style Cap | ||
Contact DC Voltage 30V dc | ||
Maximum Operating Temperature 85°C | ||
Switch Configuration SPST | ||
Standards/Approvals No | ||
Switch Contact Current 100mA | ||
Miniature Push Button Switches
This miniature push button switch with momentary switch operation and 1-pole on-off switch from our own RS PRO brand offer an excellent mechanism for controlling a machine or a process.
The case and housing is made from high-quality Nylon 6/6 and terminal is made from copper alloy with gold plated material. The total length of a push button switch is 23mm. You can choose from solid black or illuminated water clear actuator. Illuminated colour variants include blue, green, yellow, white and red. If you are after dual colour version, we can offer that too.
• Operating life of 50,000 cycles
• Total travel: 1.2±0.3mm
• Operating force: 250±100gf (gram-force)
• Normally open contact
Typical applications for this miniature push button switch would be:
• Test Equipment
• Telecommunications
• Networking
• Handheld Appliances
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
