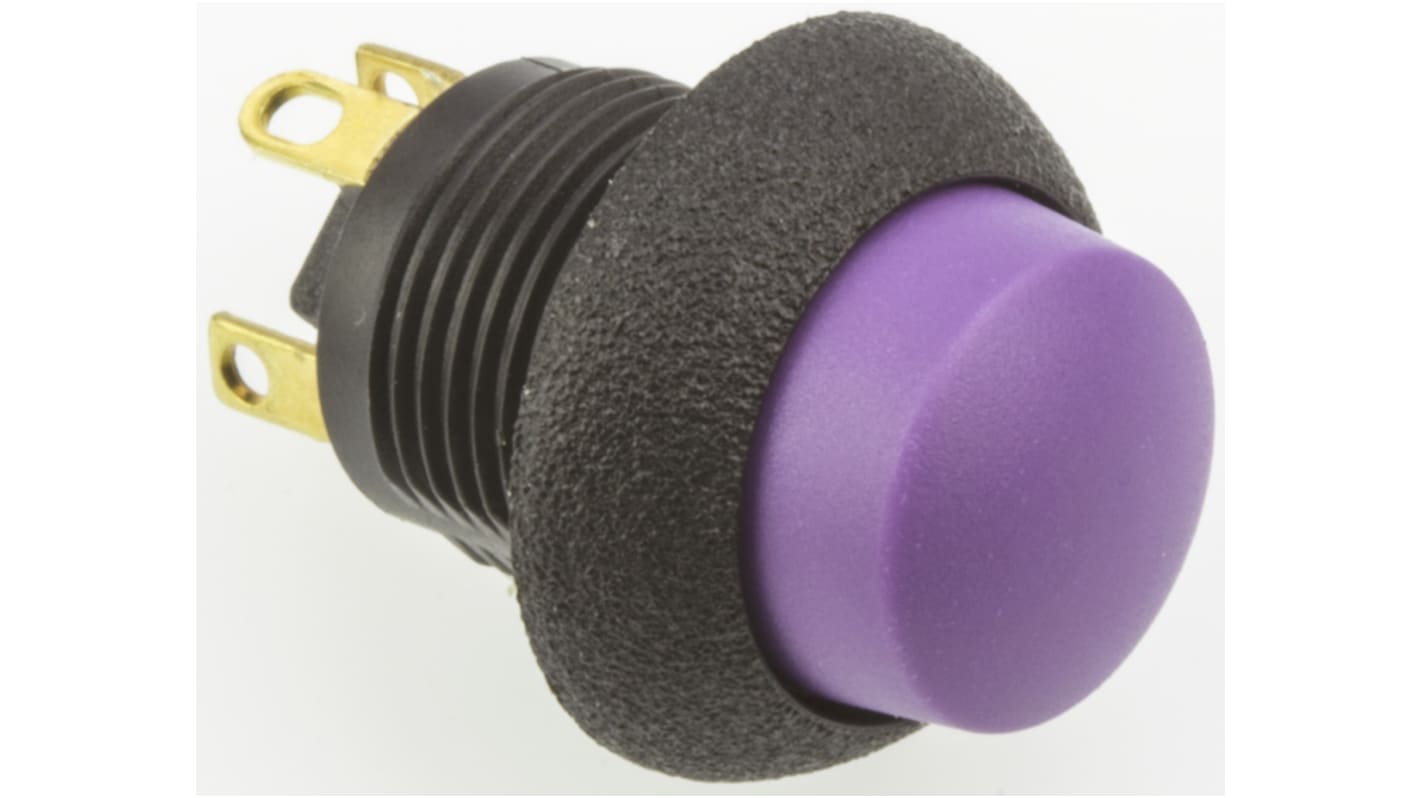

Otto P9 Series Push Button Switch, Momentary, Panel, 0.505 x 0.460 in Cutout, SPDT, Violet LED, IP68S, 28 V

ดู Push Button Switches ทั้งหมด
ไม่พร้อมจำหน่ายในตอนนี้
ขออภัย เราไม่ทราบว่าสินค้านี้จะกลับมาในสต็อกเมื่อใด
RS Stock No.:
811-7941
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
P9-613127W
ผู้ผลิต:
Otto
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

Otto

Product Type

Push Button Switch

Actuator Colour

Purple

Switch Operation

Momentary

Illuminated

No

Panel Cutout Size

0.505 x 0.460 in

Series

P9

Mount Type

Panel

Contact Configuration

SPDT

Terminal Type

Solder

LED Colour

Violet

IP Rating

IP68S

Minimum Operating Temperature

-55°C

Contact DC Voltage

28V

Contact AC Voltage

115V

Actuator Style

Raised Dome

Maximum Operating Temperature

85°C

Switch Configuration

On-On

Standards/Approvals

RoHS

Switch Contact Current

4 A

COO (Country of Origin):
US

Otto P9 - Black Body Push Button Switch IP68


Momentary action P9 series push button switches feature a contoured dome style push button in either a low button profile or a high button profile with a threaded case for hex nut mounting and a short behind panel depth of approximately 12mm. At a full rated load of 5 amps resistive or 3 amps inductive the P9 life is approximately one million mechanical operations with an electrical life of 25,000 operations. The P9 series has a low contact resistance for low level switching capability as well as being a precision designed switch for use in panels, control grips, computers, instruments, heavy equipment and other demanding applications where attractive rugged push button switches are required.

Sealed to IP68 Watertight (submersible to 1 meter water pressure)

1 N/O + 1 N/C momentary contacts (form Z)

Flush and raised dome button styles available in a wide choice of colours.

Matt or standard finish available

Threaded body (panel knock out 12.827mm)

Small size with black bezel and body

Supplied with nut & panel seal gasket

Operating Temperature: -55 to +85°C

Contact Rating: 5A @ 28Vdc or 115Vac; 2.5A @ 250Vac

Note

For white body versions see stock number 737-3787 typically.
For panel sealing use gasket stock number 737-3863.

Approvals

UL; CSA
