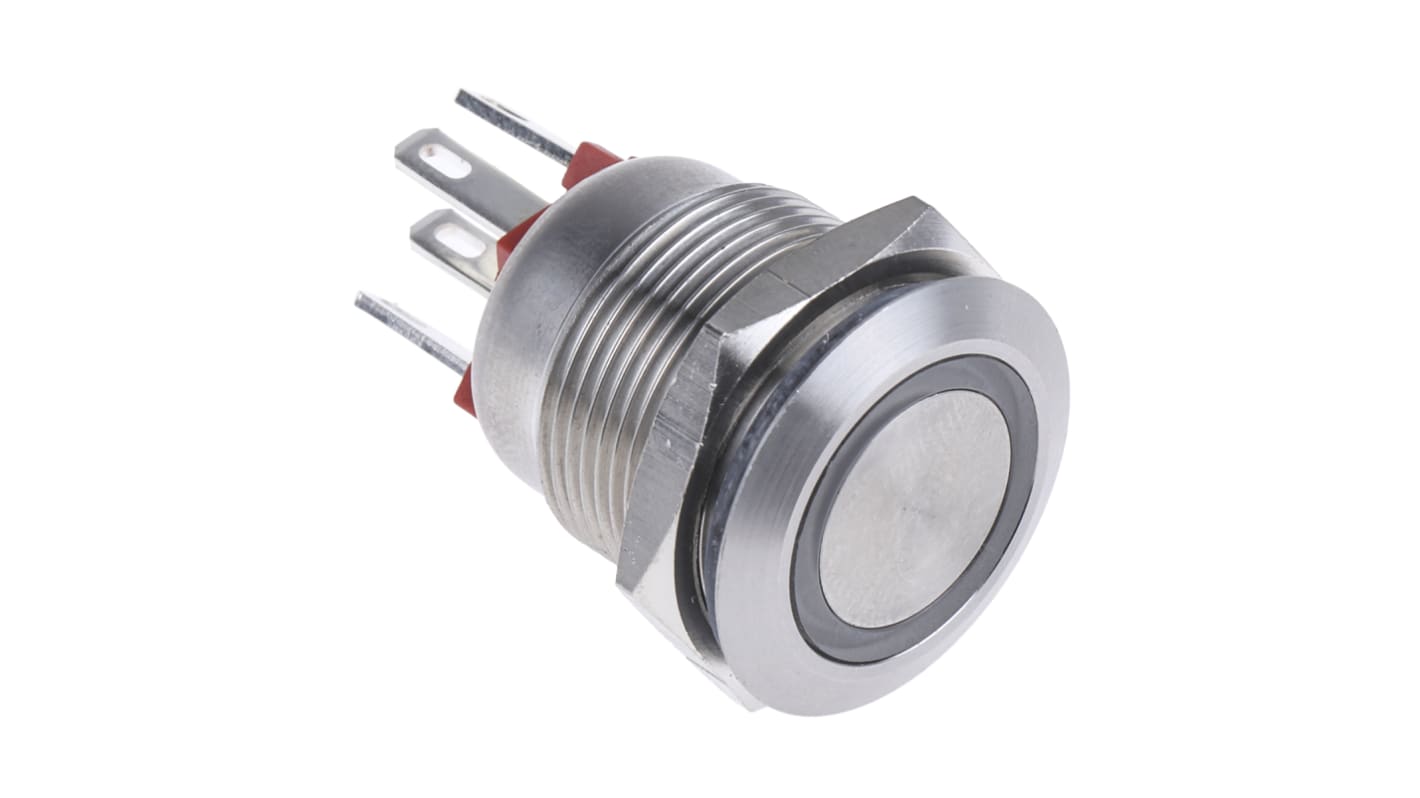

Bulgin MPI002 Series Illuminated Push Button Switch, Momentary, Panel Mount, 19.2mm Cutout, SPST, Red LED, 24V dc, IP66
- RS Stock No.:
- 708-3049
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- MPI002/28/RD
- ผู้ผลิต / Manufacturer:
- Bulgin
15 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB1,445.11
(exc. VAT)
THB1,546.27
(inc. VAT)
| Units | Per unit |
| 1 - 9 | THB1,445.11 |
| 10 - 49 | THB1,401.73 |
| 50 - 99 | THB1,358.39 |
| 100 - 249 | THB1,329.48 |
| 250 + | THB1,300.59 |
- RS Stock No.:
- 708-3049
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- MPI002/28/RD
- ผู้ผลิต / Manufacturer:
- Bulgin
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- TN
รายละเอียดสินค้า / Product Details
Stainless Steel Vandal Resistant Illuminated Pushbutton
Vandal resistant stainless steel switch body and button
Dot or ring illumination
Single pole, push to make
Bright Daylight LEDs
Separate LED terminals
750,000 mechanical operations minimum
Dot or ring illumination
Single pole, push to make
Bright Daylight LEDs
Separate LED terminals
750,000 mechanical operations minimum
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Warning
Illumination Voltage:
Suffix
/6 → 6Vdc
/12 → 12Vdc
/24 → 24Vdc
/no suffix → The resistor is not installed. The user must select and connect an appropriate resistor in series.
See the datasheet for more details.
Suffix
/6 → 6Vdc
/12 → 12Vdc
/24 → 24Vdc
/no suffix → The resistor is not installed. The user must select and connect an appropriate resistor in series.
See the datasheet for more details.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Switch Operation | Momentary |
| Illuminated | Yes |
| Panel Cut Out Diameter | 19.2mm |
| Mounting Type | Panel Mount |
| Push Button Colour | Silver |
| Contact Configuration | Single Pole Single Throw (SPST) |
| Voltage Rating | 24V dc |
| Push Button Style | Round |
| LED Colour | Red |
| IP Rating | IP66 |
| Series | MPI002 |
| Contact Current Rating | 50 mA @ 24 V dc |
| Manufacturer Part No. | MPI002/28/RD |
