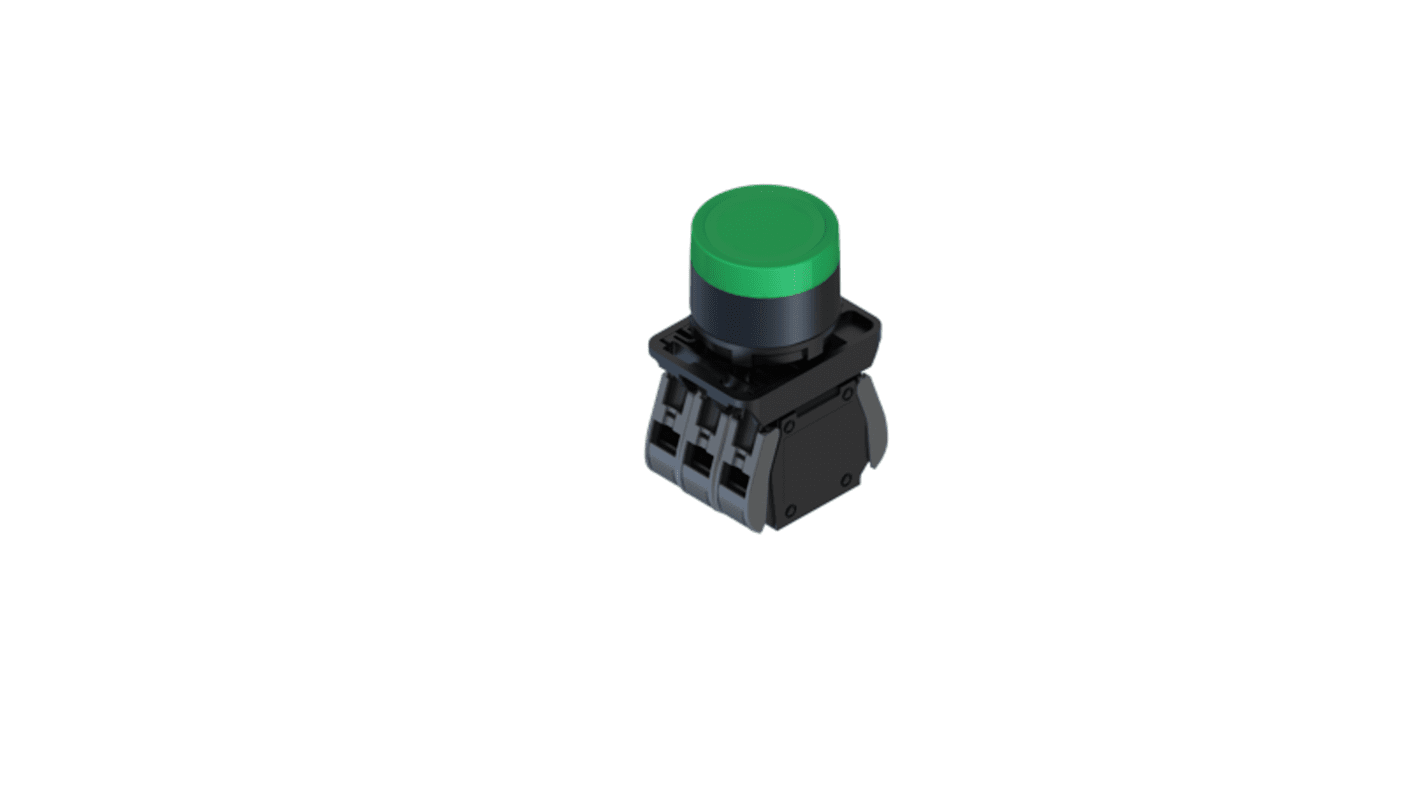

RS PRO ECX4 Series Illuminated Push Button Complete Unit, Panel, 22.5 mm Cutout Green, 1 NO/1 NC, IP65

ดู Push Button Switches ทั้งหมด

ยอดรวมย่อย (1 ชิ้น)*

THB790.92

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB846.28

(รวมภาษีมูลค่าเพิ่ม)

Add to Basket
เลือกหรือพิมพ์จำนวน
ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้
ชิ้น
ต่อหน่วย
1 +THB790.92

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:
239-8206
ผู้ผลิต:
RS PRO
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

RS PRO

Product Type

Push Button Complete Unit

Illuminated

Yes

Series

ECX4

Cutout Diameter

22.5mm

Push Button Actuation

Momentary

Mount Type

Panel

Push Button Colour

Green

Contact Configuration

1 NO/1 NC

Push Button Style

Round

Terminal Type

Screw

IP Rating

IP65

Illumination Voltage

24 V

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

70°C

Standards/Approvals

CE, EN, UKCA, UL

Hazardous Area Certification

No

Body Material

Thermoplastic

COO (Country of Origin):
IT

RS PRO Illuminated Push Button Complete Units


RS PRO is proud to introduce a new series of illuminated push buttons units. These round push buttons complete units are made from the highest quality materials and include a momentary actuation, contact block, and support base.

Upon inspection, the push button heads are illuminated, have a Chrome-Plated Zamak casing and the contact blocks are available in 1NO & 1NO+1NC configurations and the support base mounts securely into panels up to 6mm thick eliminating movement in the mounting hole.

Push buttons units are mechanical devices designed to open or close electrical contacts. They are commonly used in start/stop machine applications. They are front panel mounted via a 22 mm cut-out and should be connected to a support base secured with screws.

Features and Benefits


  • Front panel mount

  • Round push button head

  • Illuminated

  • Push button Actuation: Momentary

  • Colour: Red, Blue, Green, White and Yellow available

  • 24 VAC/VDC

  • Contact Configuration: 1NO, 1NO/1NC available

  • Support base

  • Connecting Terminals: Screw with captive cable clamp

  • Cut-out Diameter: 22.5 mm

  • Outer diameter: 30 mm

  • IP65 rating

    • Applications


  • Automotive

  • Building and Public Works

  • Industrial Controls

  • Control System

  • Lighting Controls

  • Medical Equipment

    • Why would you choose RS PRO Push Button Units?


    RS PRO offer a comprehensive range of push button complete units which include non-illuminated and illuminated. Each unit is of the high-quality, available in a variety of switch actuations designed to suit your application. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards, they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
