Siemens SIRIUS ACT 3SU11 Series Push Button Complete Unit, Panel Mount, 22mm Cutout, SPST

RS Stock No.:: 173-6792
Mfr. Part No.:: 3SU1150-0AB10-1CA0
Brand:: Siemens

Siemens SIRIUS ACT 3SU11 Series Push Button Complete Unit, Panel Mount, 22mm Cutout, SPST

Subtotal (1 unit)*

THB975.57

(exc. VAT)

THB1,043.86

(inc. VAT)

ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้

Units	Per unit
1 +	THB975.57

*price indicative

Better World

กลุ่มผลิตภัณฑ์ Better World ของเรานำเสนอผลิตภัณฑ์ที่ช่วยให้คุณตัดสินใจเลือกผลิตภัณฑ์ที่เป็นมิตรต่อสิ่งแวดล้อมและน่าเชื่อถืออย่างง่ายดาย คลิกที่นี่เพื่อดูข้อมูลเพิ่มเติม

RS Stock No.:: 173-6792
Mfr. Part No.:: 3SU1150-0AB10-1CA0
Brand:: Siemens

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Siemens
	Panel Cut Out Diameter	22mm
	Series	SIRIUS ACT 3SU11
	Mounting Type	Panel Mount
	Push Button Colour	Black
	Contact Configuration	SPST
	Push Button Style	Round
	Push Button Diameter	29.45mm
	Push Button Material	Plastic
	Better World Product	Yes
	Better World Claim	Extended product life, Low carbon manufacture
	Manufacturer Part No.	3SU1150-0AB10-1CA0
	Maximum Operating Temperature	+70°C
	Maximum DC Voltage	500V
	Minimum Operating Temperature	-25°C
	Terminal Type	Screw
	Body Material	Metal
	Maximum AC Voltage	500V

	Select all
	Brand Siemens
	Panel Cut Out Diameter 22mm
	Series SIRIUS ACT 3SU11
	Mounting Type Panel Mount
	Push Button Colour Black
	Contact Configuration SPST
	Push Button Style Round
	Push Button Diameter 29.45mm
	Push Button Material Plastic
	Better World Product Yes
	Better World Claim Extended product life, Low carbon manufacture
	Manufacturer Part No. 3SU1150-0AB10-1CA0
	Maximum Operating Temperature +70°C
	Maximum DC Voltage 500V
	Minimum Operating Temperature -25°C
	Terminal Type Screw
	Body Material Metal
	Maximum AC Voltage 500V

COO (Country of Origin):: DE

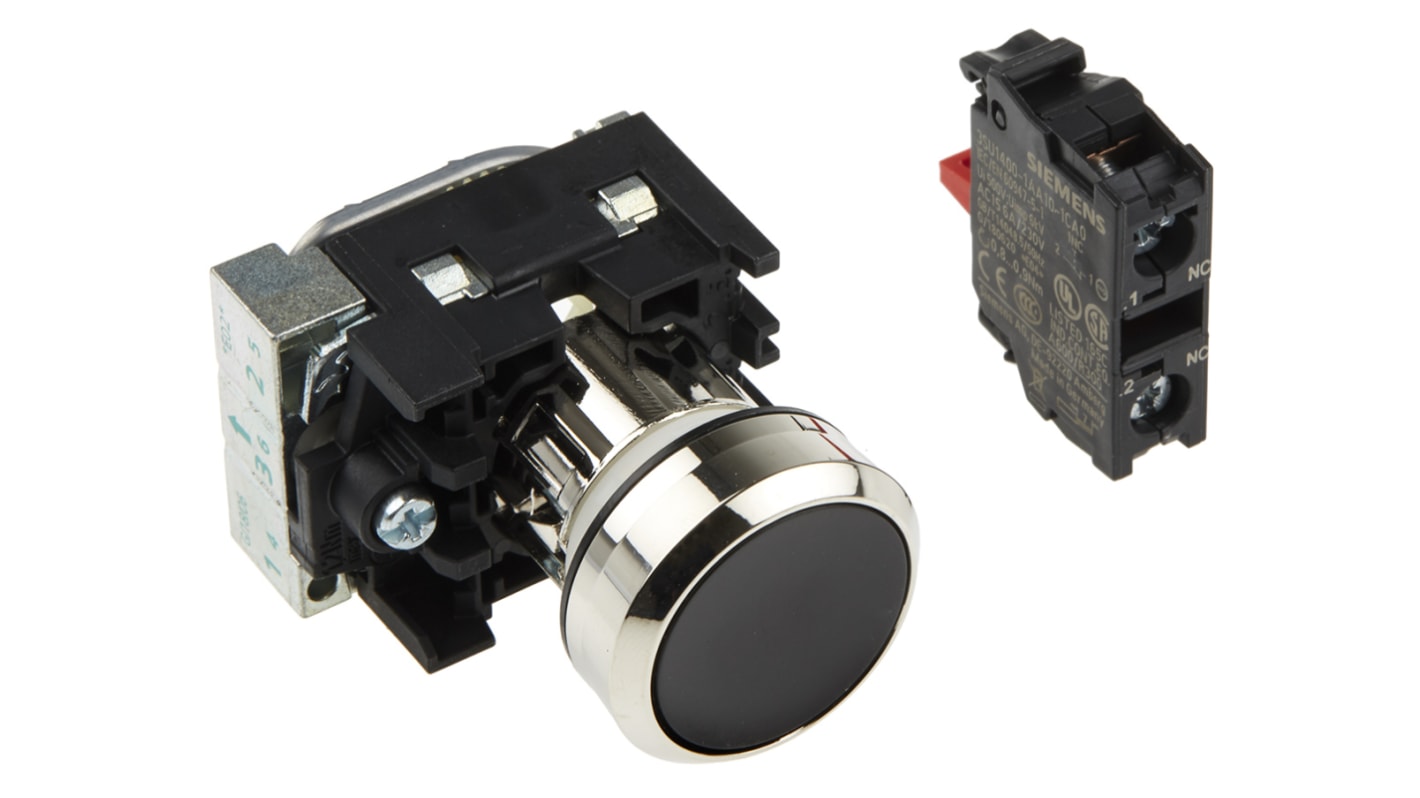

Siemens pushbutton Complete Unit

The Siemens SIRIUS ACT normally closed (NC) panel mount non-illuminated pushbutton has a 22mm cut-out diameter. Its body is made of plastic, is shiny and round in shape.

Features and Benefits

• 1-NC contact
• Available in black colour
• Connection is screw terminal
• Flat style button
• Operating temperature ranges between -25°C and 70°C
• Operating voltage ranges up to 500VAC/VDC
• Switching method is momentary with a holder

Applications

• AS-interface
• Hazardous areas
• IO-link
• Marine applications
• Safety circuits
• Safety emergency stop pushbutton
• Standard industrial applications

Certifications

• EC/EN 60947-1 certified
• IEC/EN 60947-5-1 certified
• IEC/EN 60947-5-5 certified
• IP20 rated
• IP66 rated
• IP67 rated
• IP69 rated
• IP69K rated
