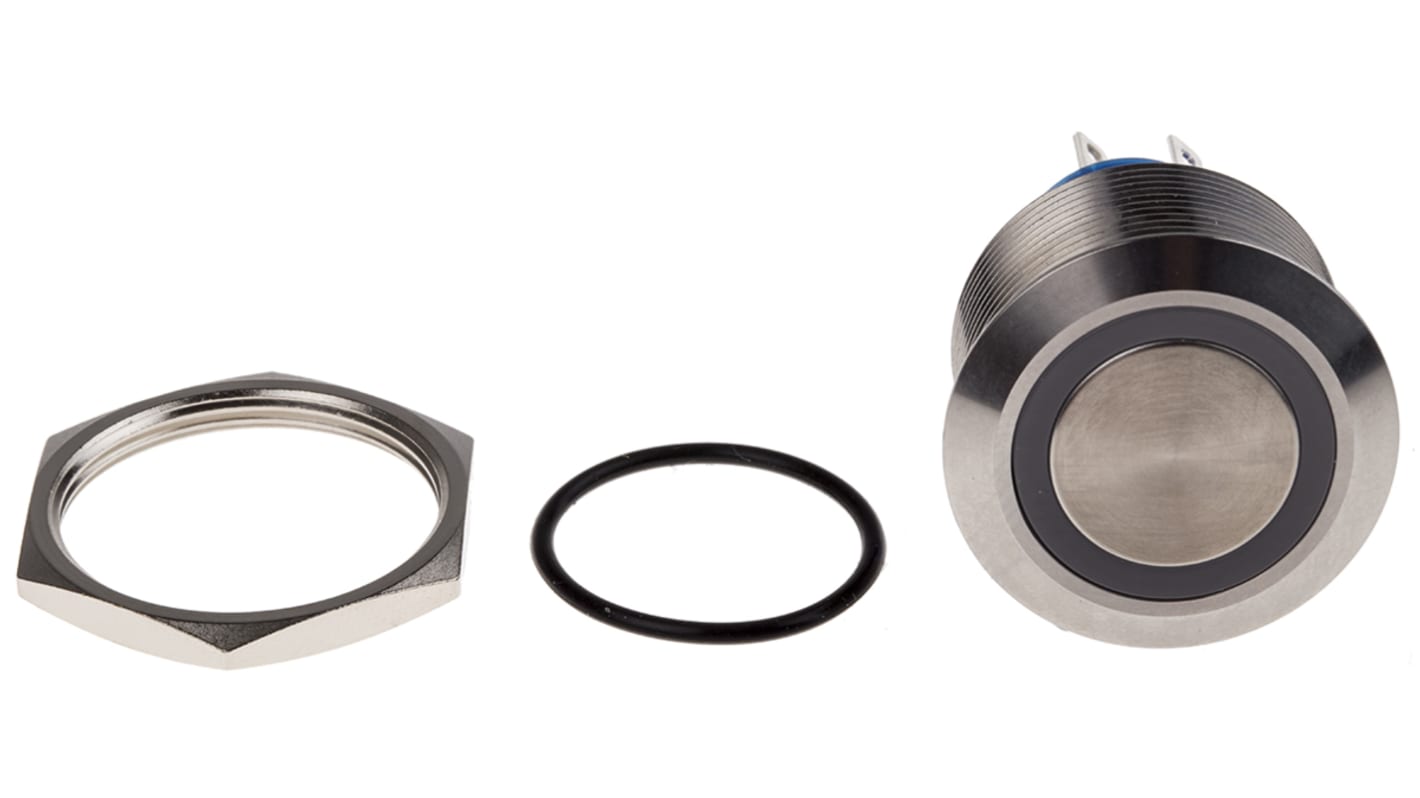

KNITTER-SWITCH Illuminated Vandal Proof Push Button Switch, Momentary, Panel Mount, 25mm Cutout, SPDT, Red LED, 28 V
- RS Stock No.:
- 164-9519
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- MAV25A0F10E-312-JQ
- ผู้ผลิต / Manufacturer:
- KNITTER-SWITCH
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 22/10/2024, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each (In a Tray of 50)
THB907.636
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB971.171
(รวมภาษีมูลค่าเพิ่ม)
Units | ต่อหน่วย | Per Tray* |
---|---|---|
50 - 50 | THB907.636 | THB45,381.80 |
100 - 150 | THB887.668 | THB44,383.40 |
200 + | THB868.608 | THB43,430.40 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 164-9519
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- MAV25A0F10E-312-JQ
- ผู้ผลิต / Manufacturer:
- KNITTER-SWITCH
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
รายละเอียดสินค้า / Product Details
The Knitter-Switch MAV25 series, single pole double throw (SPDT), momentary red LED recessed push button switch has M25x1 bushing size, 12V LED voltage, 250V AC & 28V DC contact voltage rating and 3A contact current rating.
Stainless steel button material
Ring shape lens style
IP67 protection rating
Solder lugs terminals
Silver solder tab surface
Operating temperature ranging from -20 °C to +55 °C
Ring shape lens style
IP67 protection rating
Solder lugs terminals
Silver solder tab surface
Operating temperature ranging from -20 °C to +55 °C
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Switch Operation | Momentary |
Illuminated | Yes |
Panel Cut Out Diameter | 25mm |
Mounting Type | Panel Mount |
Push Button Colour | Silver |
Contact Configuration | SPDT |
Voltage Rating | 28 V dc, 250V ac |
Push Button Style | Round |
LED Colour | Red |
IP Rating | IP67 |
Contact Current Rating | 3 A |
Contact Material | Copper Alloy |
Contact AC Voltage Rating | 250V |
Contact DC Voltage Rating | 28V |
Manufacturer Part No. | MAV25A0F10E-312-JQ |
Terminal Type | Solder Lug |
