RS PRO Push Button Complete Unit, Panel Mount, 22mm Cutout, SPDT, IP65
- RS Stock No.:
- 145-0611
- ผู้ผลิต:
- RS PRO
ยอดรวมย่อย (1 ชิ้น)*
THB409.75
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB438.43
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 152 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB409.75 |
*price indicative
- RS Stock No.:
- 145-0611
- ผู้ผลิต:
- RS PRO
ข้อมูลทางเทคนิค
Technical data sheets
Legislation and Compliance
Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | RS PRO | |
| Illuminated | No | |
| Panel Cut Out Diameter | 22mm | |
| Mounting Type | Panel Mount | |
| Push Button Colour | Red | |
| Contact Configuration | SPDT | |
| Push Button Style | Round | |
| IP Rating | IP65 | |
| Push Button Material | Plastic | |
| Manufacturer Part No. | EE04FD3R | |
| Terminal Type | Screw | |
| Maximum AC Voltage | 230V | |
| Body Material | Plastic | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand RS PRO | ||
Illuminated No | ||
Panel Cut Out Diameter 22mm | ||
Mounting Type Panel Mount | ||
Push Button Colour Red | ||
Contact Configuration SPDT | ||
Push Button Style Round | ||
IP Rating IP65 | ||
Push Button Material Plastic | ||
Manufacturer Part No. EE04FD3R | ||
Terminal Type Screw | ||
Maximum AC Voltage 230V | ||
Body Material Plastic | ||
- COO (Country of Origin):
- IN

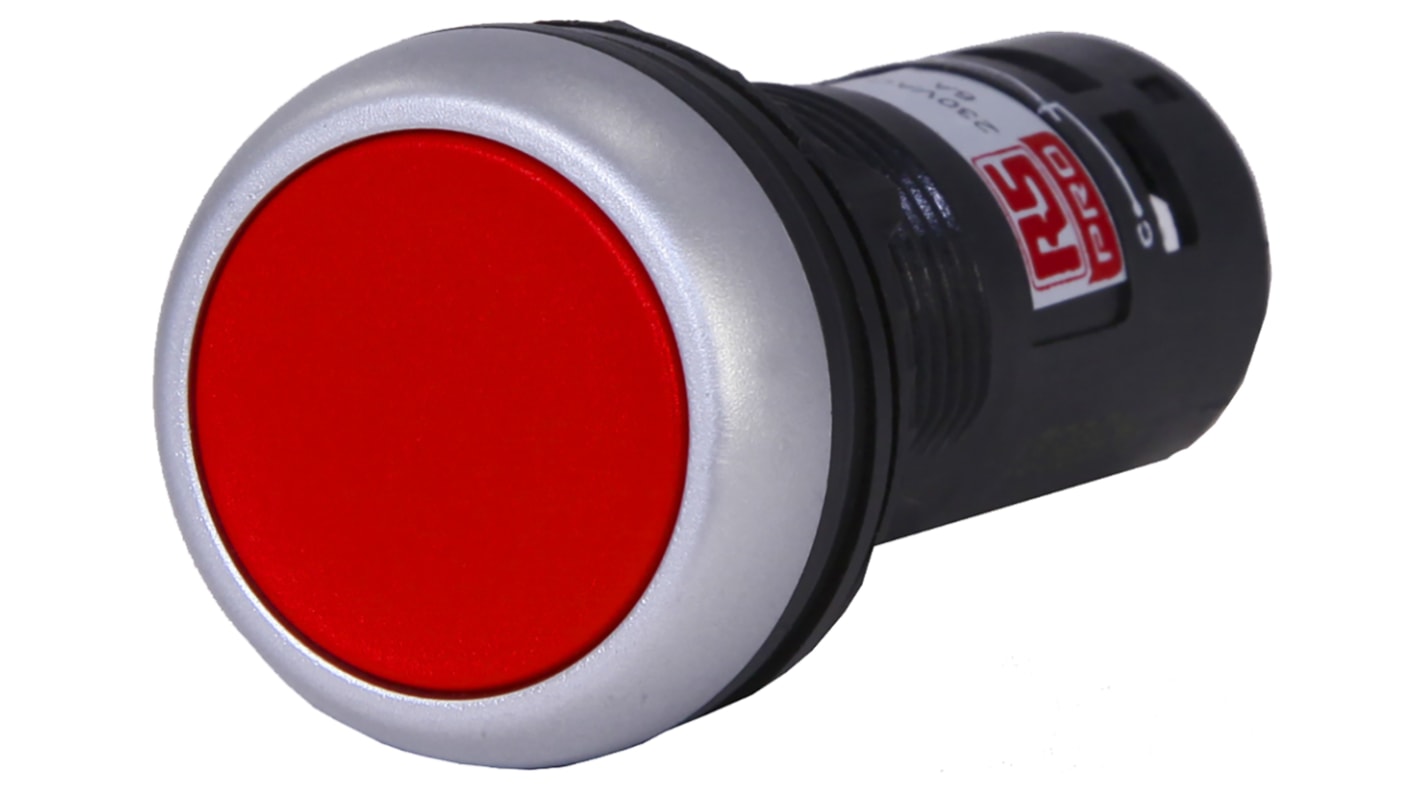

RS PRO Non-Illuminated Red Flush, 1RT, 22 mm Momentary Screw
This RS PRO push button includes a spring-loaded button actuator, mounting collar and built-in contact block for quick and easy installation. Push buttons like this one may be used to start and stop machinery in a wide range of large-scale industries as well as smaller commercial environments.
The device is spherical in form and has a red flush button to make sure it stands out. As it's a panel-mounting component, you can easily attach it to your panel.
This push button is protected against dust and low-pressure water jets as it has an IP65 rating. It also meets the electrostatic discharge (ESD) criteria of the United States (ANSI/ESD S20.20:2014) and the United Kingdom (BS EN 61340-5-1:2007) to ensure that the danger of discharge is minimised.
The device is spherical in form and has a red flush button to make sure it stands out. As it's a panel-mounting component, you can easily attach it to your panel.
This push button is protected against dust and low-pressure water jets as it has an IP65 rating. It also meets the electrostatic discharge (ESD) criteria of the United States (ANSI/ESD S20.20:2014) and the United Kingdom (BS EN 61340-5-1:2007) to ensure that the danger of discharge is minimised.
Features and Benefits
- Plastic body material
- Contact configuration of 1RT (normally open)
- Cutout diameter of 22 mm
- Not illuminated
- IP65 rated
- Maximum AC voltage of 230 V
- Maximum current of 6 A
- Panel mounting type
- Momentary push button actuation
- Red push button colour
- Plastic push button material
- Round push button shape
- Flush push button style
- Screw terminal type
