Eaton C22 Series Illuminated Push Button, Panel Mount, 22mm Cutout, SPST, IP67, IP69K

RS Stock No.:: 123-6377
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: 181300 C22-DL-G-K10-24-P5
ผู้ผลิต:: Eaton

Eaton C22 Series Illuminated Push Button, Panel Mount, 22mm Cutout, SPST, IP67, IP69K

ยอดรวมย่อย (1 ชิ้น)*

THB3,222.46

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB3,448.03

(รวมภาษีมูลค่าเพิ่ม)

ส่งฟรีหากซื้อเกิน ฿2,500.00

มีในสต็อก

4 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
เพิ่มอีก 13 ชิ้นจะส่งได้หลังจากวันที่ 20 มกราคม 2569 ไปอีกประมาณ 7 วันทำการ

ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง

ชิ้น	ต่อหน่วย
1 +	THB3,222.46

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 123-6377
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: 181300 C22-DL-G-K10-24-P5
ผู้ผลิต:: Eaton

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Eaton
	Illuminated	Yes
	Series	C22
	Panel Cut Out Diameter	22mm
	Mounting Type	Panel Mount
	Push Button Colour	Green
	Contact Configuration	SPST
	Push Button Style	Round
	IP Rating	IP67, IP69K
	Push Button Diameter	29.7mm
	Push Button Material	Plastic
	Manufacturer Part No.	181300 C22-DL-G-K10-24-P5
	Minimum Operating Temperature	-25°C
	Maximum DC Voltage	220V
	Maximum AC Voltage	230V
	Body Material	Plastic
	Operating Temperature Range	- 25 → +70°C
	Maximum Operating Temperature	+70°C

	เลือกทั้งหมด
	Brand Eaton
	Illuminated Yes
	Series C22
	Panel Cut Out Diameter 22mm
	Mounting Type Panel Mount
	Push Button Colour Green
	Contact Configuration SPST
	Push Button Style Round
	IP Rating IP67, IP69K
	Push Button Diameter 29.7mm
	Push Button Material Plastic
	Manufacturer Part No. 181300 C22-DL-G-K10-24-P5
	Minimum Operating Temperature -25°C
	Maximum DC Voltage 220V
	Maximum AC Voltage 230V
	Body Material Plastic
	Operating Temperature Range - 25 → +70°C
	Maximum Operating Temperature +70°C

Datasheet

COO (Country of Origin):: DE

Eaton Series C22 Push-Button, Panel Mount, IP67 and IP69K - 181300 C22-DL-G-K10-24-P5

This push-button by Eaton is a high-quality product designed for various applications in multiple industries. It features a durable plastic body material, momentary push-button actuation, a green illuminated round style with a 29.7 mm diameter, and panel mount installation. With an IP rating of IP67 and IP69K, this push-button is suitable for use in harsh environments with a wide operating temperature range of -25 to +70 °C. The maximum AC voltage it can handle is 230V, while the maximum DC voltage is 220V, making it a versatile and reliable choice for different projects.

Features & Benefits

• Durable plastic construction ensures longevity and reliability

• Momentary push-button actuation for quick and precise operation

• Green illuminated round push-button with a 29.7 mm diameter for easy visibility

• Panel mount design for secure and convenient installation

• IP67 and IP69K rating for protection against dust, water, and high-pressure cleaning

• Wide operating temperature range of -25 to +70 °C allows for use in various environments

Applications

• Ideal for control panel applications requiring a reliable and durable push-button

• Suitable for industrial machinery, automation systems, and electrical equipment

• Can be used in outdoor environments where protection against dust and water is essential

Can it withstand harsh environmental conditions?

This push-button is IP67 and IP69K rated, making it suitable for use in environments with dust and water exposure.

Will it fit securely on a control panel?

Yes, this push-button features a panel mount design for secure and convenient installation.

Is the momentary actuation feature easy to operate?

The momentary push-button actuation ensures quick and precise operation for user convenience.

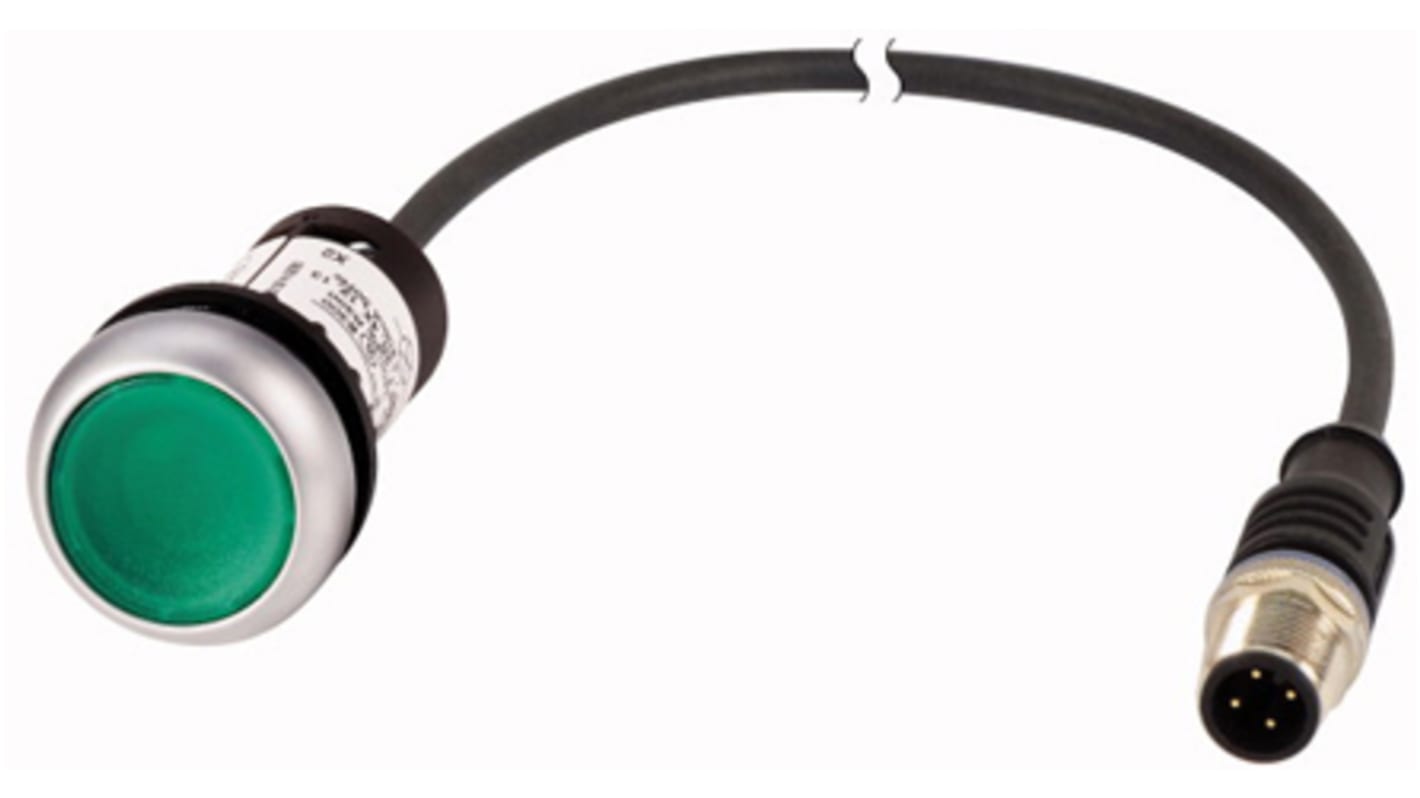

C22 Compact Illuminated Push Buttons With Flying Lead

Eaton's C22 compact illuminated push buttons, also known as a push button switch or control, come complete with flying lead attached. They offer an array of functional, attractive, and ergonomically designed all-in-one push buttons. The complete illuminated push buttons feature LEDs to ensure high-quality brightness and up to 100000 hours of LED illumination.

The C22 series complete unit design with integral contact block, LED and operator provides a simple solution for all industrial push button requirements. Available as momentary or maintained switching, with maintained push buttons field convertible to momentary.

Applications:

Push buttons are often used as part of a control station to operated machinery switching them from on to off. They are often provided with a rugged casing for the buttons, which offers protection from rigorous use and in potentially hazardous environments.

Features and Benefits

0.5 m or 1 m flying lead with M12A 4 pole connector

LED illumination

Heavy-duty corrosion resistant construction

Silver coloured nylon bezel

Notched hole mounting with anti-rotation tab and central nut mounting on each operator

Rated for up to 5 million mechanical operations

Note

Eaton formerly known as Moeller
