RS PRO AV01 Series Illuminated Push Button Switch, Momentary, Panel, 12 mm Cutout, SPST, Green LED, IP65, IP67, 36 V dc
- RS Stock No.:
- 111-6529
- ผู้ผลิต:
- RS PRO
มีส่วนลดเมื่อซื้อจำนวนมาก
ยอดรวมย่อย (1 ชิ้น)*
THB633.53
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB677.88
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 547 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 - 9 | THB633.53 |
| 10 - 24 | THB620.87 |
| 25 - 49 | THB608.45 |
| 50 - 249 | THB596.29 |
| 250 + | THB490.74 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 111-6529
- ผู้ผลิต:
- RS PRO
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | RS PRO | |
| Actuator Colour | Silver | |
| Switch Operation | Momentary | |
| Product Type | Push Button Switch | |
| Illuminated | Yes | |
| Series | AV01 | |
| Panel Cutout Size | 12 mm | |
| Mount Type | Panel | |
| Contact Configuration | SPST | |
| LED Colour | Green | |
| Terminal Type | Quick Connect | |
| IP Rating | IP65, IP67 | |
| Contact DC Voltage | 36V dc | |
| Actuator Style | Round | |
| Minimum Operating Temperature | -20°C | |
| Switch Configuration | SPST | |
| Maximum Operating Temperature | 55°C | |
| Switch Contact Current | 15 mA | |
| Standards/Approvals | RoHS | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand RS PRO | ||
Actuator Colour Silver | ||
Switch Operation Momentary | ||
Product Type Push Button Switch | ||
Illuminated Yes | ||
Series AV01 | ||
Panel Cutout Size 12 mm | ||
Mount Type Panel | ||
Contact Configuration SPST | ||
LED Colour Green | ||
Terminal Type Quick Connect | ||
IP Rating IP65, IP67 | ||
Contact DC Voltage 36V dc | ||
Actuator Style Round | ||
Minimum Operating Temperature -20°C | ||
Switch Configuration SPST | ||
Maximum Operating Temperature 55°C | ||
Switch Contact Current 15 mA | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- TW

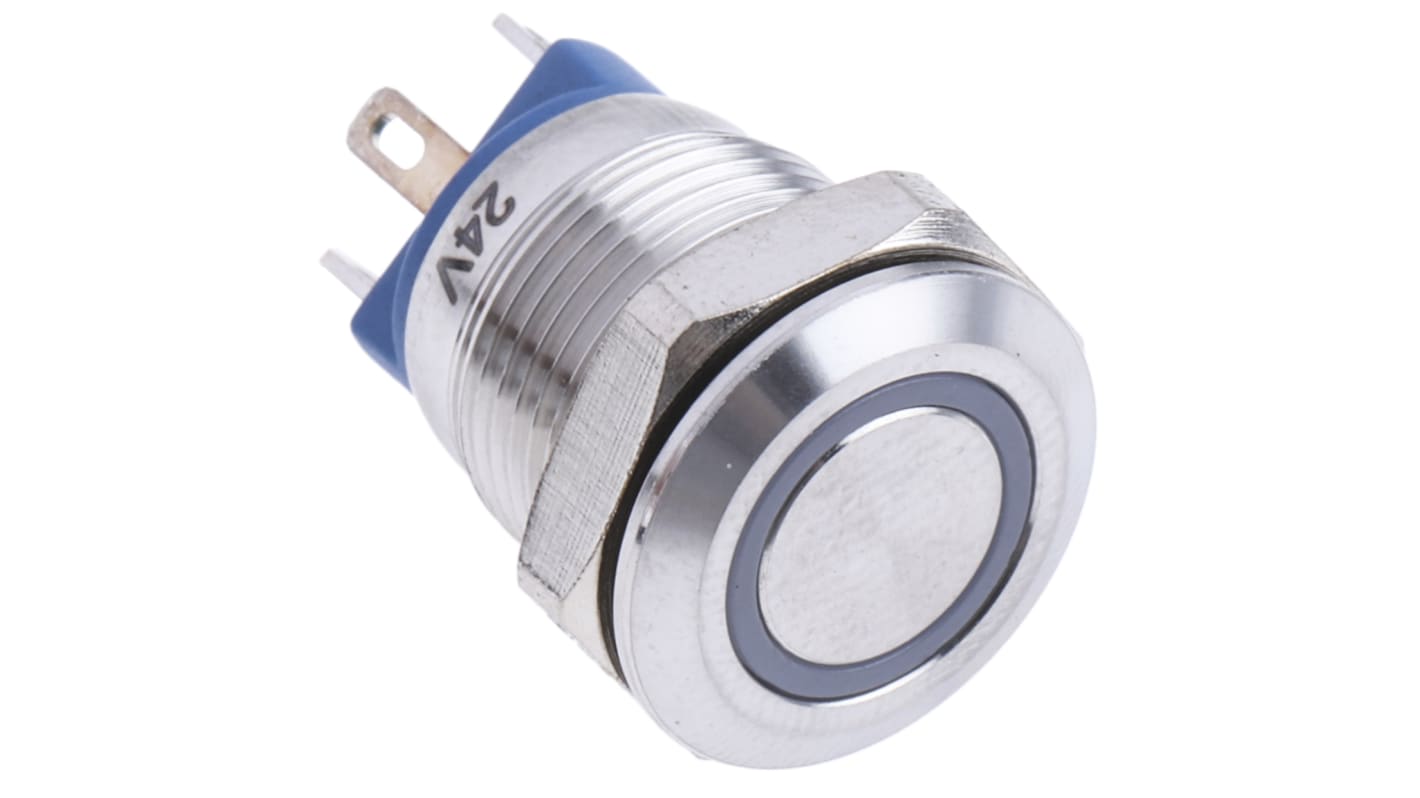

RS PRO Single Pole Single Throw (SPST) Momentary Green LED Push Button Switch, IP65, IP67, 12 (Dia.) mm, Panel Mount
This vandal-resistant RS PRO stainless-steel push-button switch is rugged enough to withstand substantial wear and tear. This type of switch is often found in security keypads and the button needs to remain pressed for an action to take place.
This unit has a flat actuator that sits flush with its surrounds and it's illuminated with a green LED light. Note that our RS PRO momentary switches feature different coloured rings so you can identify them easily.
The SPST (single-pole single-throw) panel-mount switch has silver alloy contacts that offer excellent conductivity. When you install it, you'll need a cutout diameter of 12 mm for this panel-mount unit. It has a contact DC rating of 36 V.
It's IP65 and IP67 rated so the model dust-tight and water-resistant. These types of switches are often used for public ticket dispensers.
Features and Benefits
• Momentary, stainless-steel push-button switch
• Panel cut out size of 12 mm (diameter)
• Contact configuration of single pole single throw (SPST)
• Flat, round actuator that is silver in colour
• LED colour of green
• Panel cut out diameter of 12 mm
• Contact current rating of 15 mA
• Panel mount
• Contact DC voltage rating of 36 V
• Illuminated switch
• Quick connect terminal type
• Silver alloy contact material
• IP rating of IP65 and IP67
• Silver alloy contacts
• RoHS (Restriction of Hazardous Substances) compliant
