    Otto Momentary Push Button Switch, Panel Mount, SPDT

    RS Stock No.:
    512-972
    หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
    P9213128W
    ผู้ผลิต / Manufacturer:
    Otto
    Otto
    ดู Push Button Switches ทั้งหมด
    มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
    Add to Basket
    Units

    ราคา / Price Each

    THB670.29

    (exc. VAT)

    THB717.21

    (inc. VAT)

    UnitsPer unit
    1 - 49THB670.29
    50 - 99THB650.19
    100 - 249THB630.07
    250 - 499THB616.67
    500 +THB603.25
    RS Stock No.:
    512-972
    หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
    P9213128W
    ผู้ผลิต / Manufacturer:
    Otto

    ข้อมูลทางเทคนิค / Technical Data Sheets


    Legislation and Compliance


    รายละเอียดสินค้า / Product Details

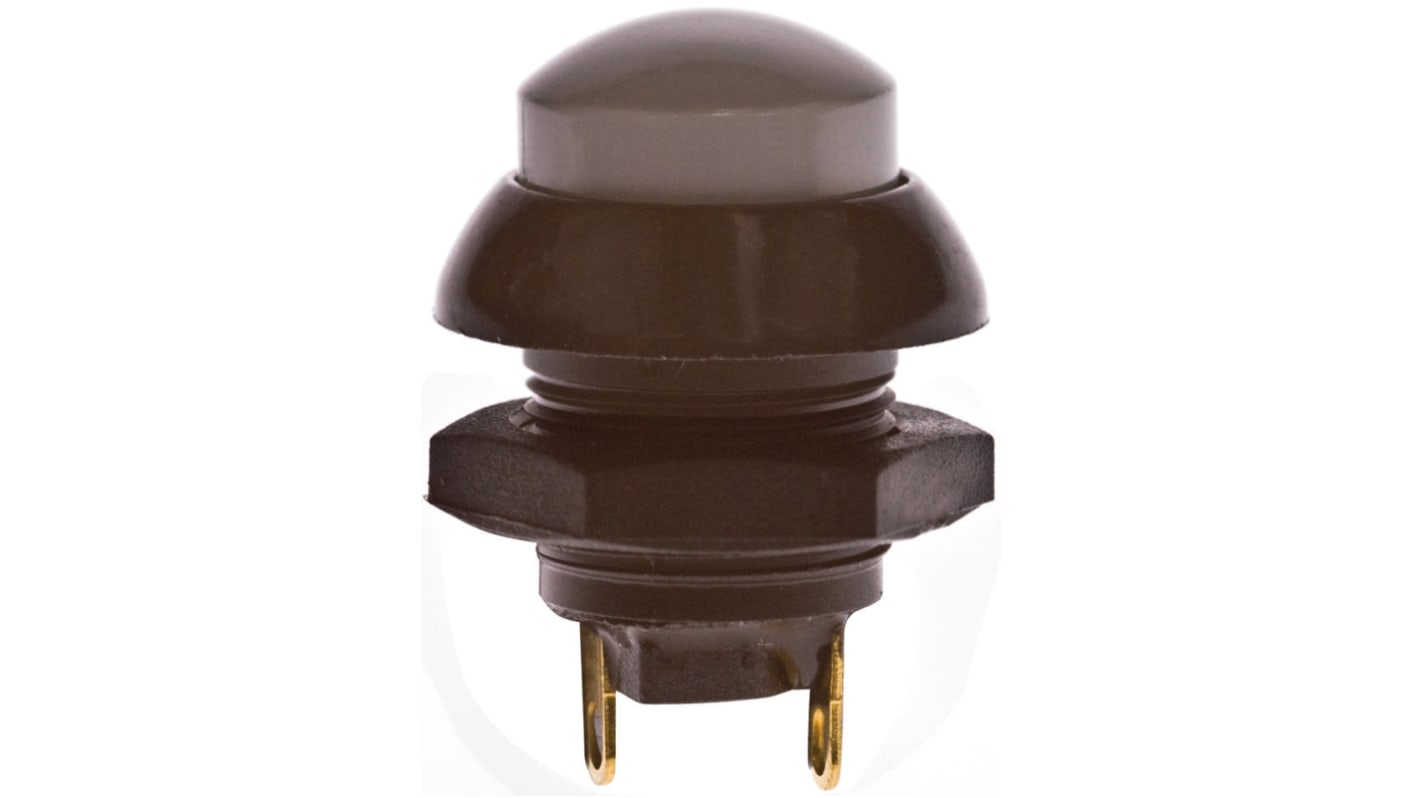

    Otto P9 - Black Body Push Button Switch IP68


    Momentary action P9 series push button switches feature a contoured dome style push button in either a low button profile or a high button profile with a threaded case for hex nut mounting and a short behind panel depth of approximately 12mm. At a full rated load of 5 amps resistive or 3 amps inductive the P9 life is approximately one million mechanical operations with an electrical life of 25,000 operations. The P9 series has a low contact resistance for low level switching capability as well as being a precision designed switch for use in panels, control grips, computers, instruments, heavy equipment and other demanding applications where attractive rugged push button switches are required.


    Sealed to IP68 Watertight (submersible to 1 meter water pressure)
    1 N/O + 1 N/C momentary contacts (form Z)
    Flush and raised dome button styles available in a wide choice of colours.
    Matt or standard finish available
    Threaded body (panel knock out 12.827mm)
    Small size with black bezel and body
    Supplied with nut & panel seal gasket
    Operating Temperature: -55 to +85°C
    Contact Rating: 5A @ 28Vdc or 115Vac; 2.5A @ 250Vac


    Note

    For white body versions see stock number 737-3787 typically.
    For panel sealing use gasket stock number 737-3863.

    Approvals

    UL; CSA


    คุณสมบัติ / Specifications

    คุณสมบัติValue
    Switch OperationMomentary
    Mounting TypePanel Mount
    Contact ConfigurationSingle Pole Double Throw (SPDT)
    Actuator ColourGrey
    Contact Current Rating5 A @ 28 V dc
    Actuator ShapeDome
    Actuator TypeButton
    Terminal TypeSolder
