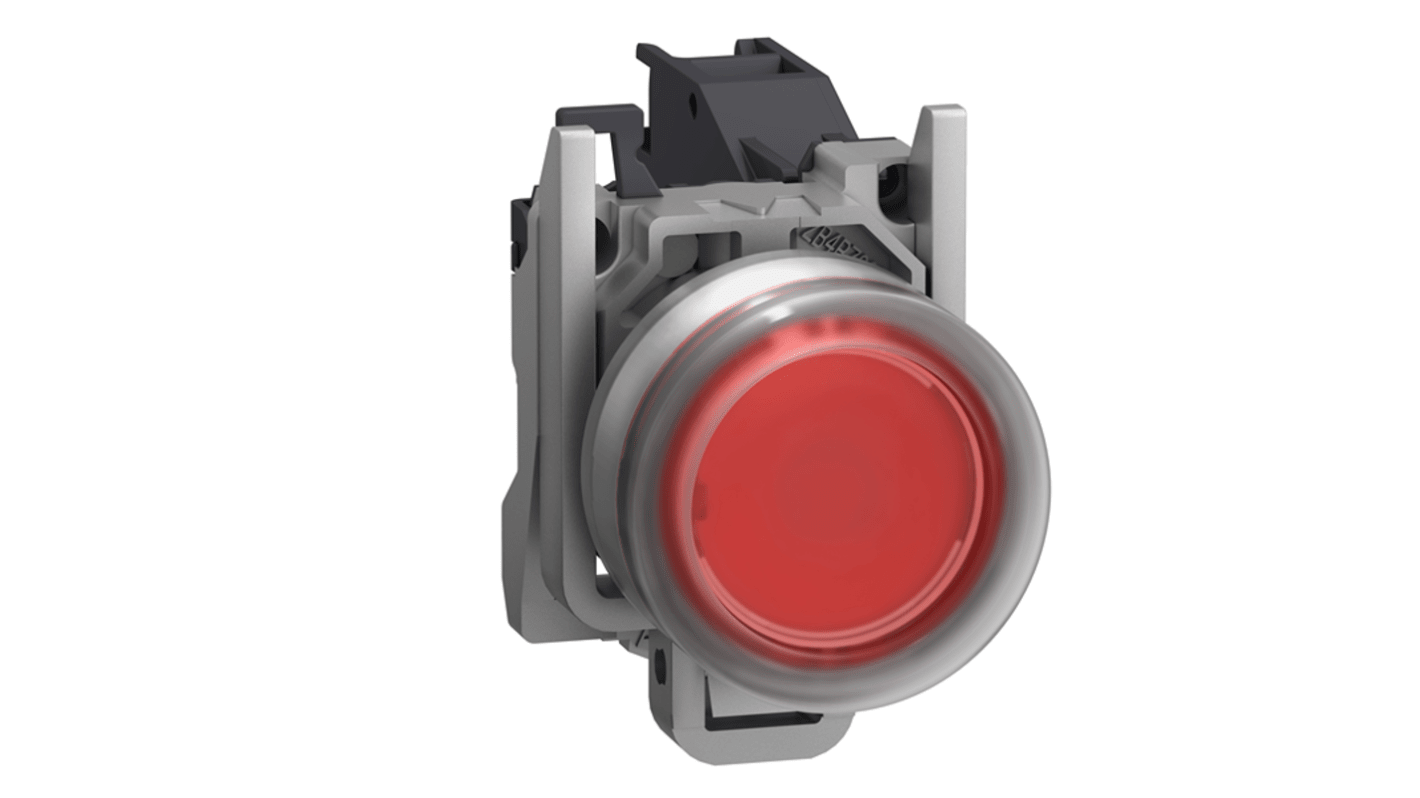

Schneider Electric XB4B Series Push Button Switch, Spring Return, Through Hole, 22 mm Cutout, 1 NC, Red LED, IP66, 415 V

RS Stock No.:: 340-735
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: XB4BP482GEX
ผู้ผลิต:: Schneider Electric

Schneider Electric XB4B Series Push Button Switch, Spring Return, Through Hole, 22 mm Cutout, 1 NC, Red LED, IP66, 415 V

ยอดรวมย่อย (1 ชิ้น)*

THB5,651.33

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB6,046.92

(รวมภาษีมูลค่าเพิ่ม)

ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้ - โปรดกลับมาตรวจสอบอีกครั้งภายหลัง

ชิ้น	ต่อหน่วย
1 +	THB5,651.33

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 340-735
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: XB4BP482GEX
ผู้ผลิต:: Schneider Electric

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Schneider Electric
	Actuator Colour	Red
	Product Type	Push Button Switch
	Switch Operation	Spring Return
	Illuminated	No
	Series	XB4B
	Panel Cutout Size	22 mm
	Mount Type	Through Hole
	Contact Configuration	1 NC
	LED Colour	Red
	Terminal Type	Screw
	IP Rating	IP66
	Contact AC Voltage	415V ac
	Contact DC Voltage	415V dc
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	75°C
	Height	30mm
	Length	72mm
	Switch Contact Current	10A
	Width	46.2mm
	Standards/Approvals	UL 60079-1, UL 60079-31, CSA C22.2 Nr. 213, ANSI/ISA 12.12.01, EN/IEC 60079-1:2009, IEC 60079-0:2009, IEC 60079-31:2009, IEC 60079-7:2009, UL 60079-0
	Legend	Blank

	เลือกทั้งหมด
	Brand Schneider Electric
	Actuator Colour Red
	Product Type Push Button Switch
	Switch Operation Spring Return
	Illuminated No
	Series XB4B
	Panel Cutout Size 22 mm
	Mount Type Through Hole
	Contact Configuration 1 NC
	LED Colour Red
	Terminal Type Screw
	IP Rating IP66
	Contact AC Voltage 415V ac
	Contact DC Voltage 415V dc
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 75°C
	Height 30mm
	Length 72mm
	Switch Contact Current 10A
	Width 46.2mm
	Standards/Approvals UL 60079-1, UL 60079-31, CSA C22.2 Nr. 213, ANSI/ISA 12.12.01, EN/IEC 60079-1:2009, IEC 60079-0:2009, IEC 60079-31:2009, IEC 60079-7:2009, UL 60079-0
	Legend Blank

COO (Country of Origin):: FR

Schneider Electric Harmony Series Push Button Switch, 22mm Panel Cut Out Diameter, 10A Current Rating - XB4BP482GEX

This push button switch is a versatile control solution designed for automation and electrical applications. With a panel cut-out diameter of 22mm, it features a red push button in a round style. The switch operates using a spring return mechanism, ensuring ease of use and responsiveness during operation. This model offers a contact configuration of 1NC and has been rated for a maximum voltage of 415V, making it suitable for high-performance environments. It is characterised by its robust IP66 rating, ensuring protection against dust and water ingress.

Features & Benefits

• Spring return mechanism allows quick reset between operations
• 22mm push button size is standard for easy installation
• Red push button enables high visibility in various settings
• Designed for efficient performance with a contact current rating of 10A
• Utilises Durable silver alloy contact material for enhanced longevity

Applications

• Ideal for use in industrial control panels for quick operation
• Suitable for automation equipment where reliable switching is required
• Utilised in machinery needing a robust and weatherproof control mechanism
• Appropriate for commercial electrical installations that require safety compliance

What is the suitable temperature range for reliable operation?

The product operates effectively within a temperature range from -20°C to +75°C, accommodating a variety of environments.

What type of Terminal connection does this product use?

It employs a screw clamp Terminal type, facilitating secure and straightforward wiring connections for easy installation and maintenance.

How does the device ensure durability in harsh conditions?

An IP66 rating indicates its strong resistance to dust and water, making it suitable for outdoor or industrial applications where exposure is common.

What is the significance of having a 1NC contact configuration?

The 1NC configuration allows for a normally closed circuit, making it Ideal for applications where power should be cut when the button is not pressed, enhancing safety.
