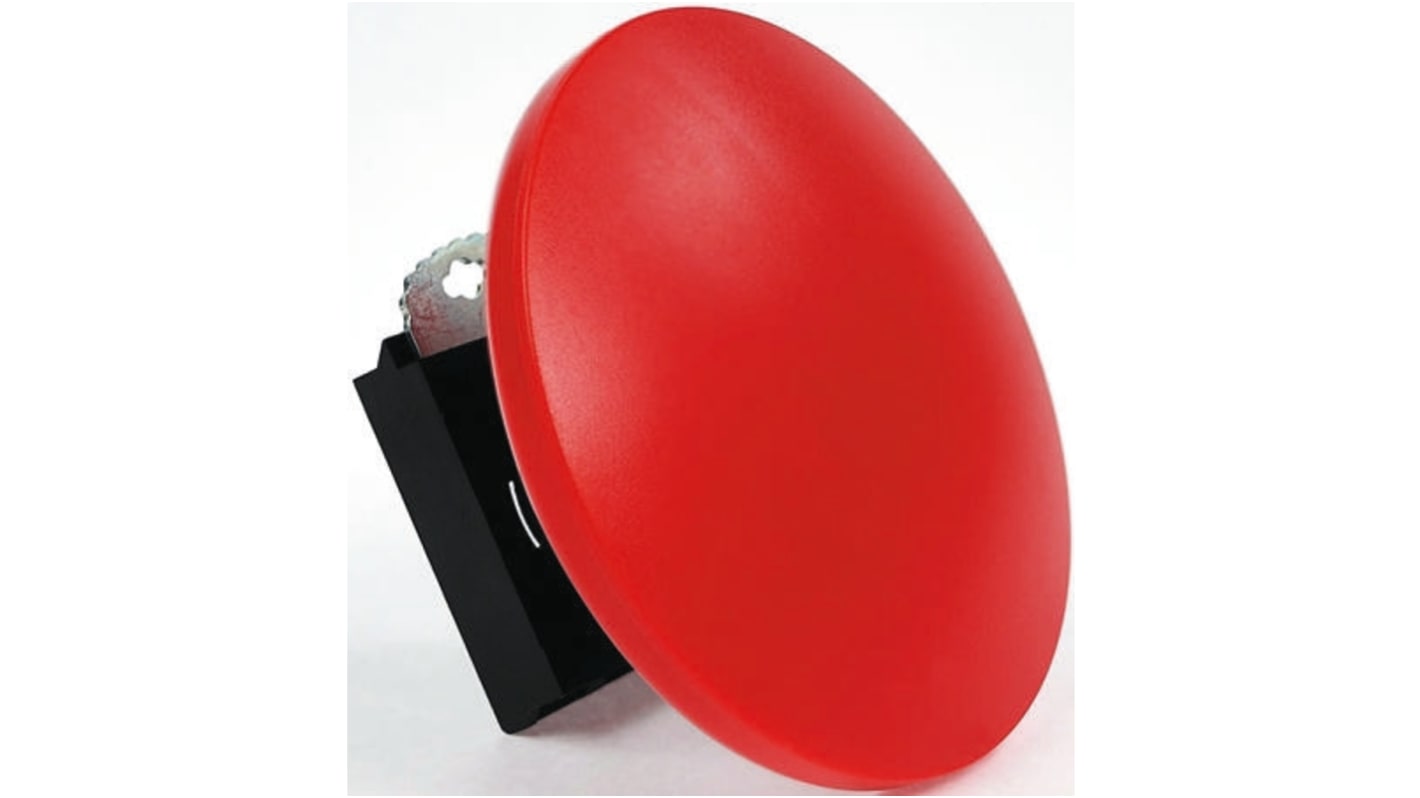

BACO Red Spring Return Push Button Head, 22 mm Cutout, IP66
- RS Stock No.:
- 260-283
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- L21AE01
- ผู้ผลิต:
- BACO
ยอดรวมย่อย (1 ชิ้น)*
THB1,154.48
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB1,235.29
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- เพิ่มอีก 4 ชิ้นจะส่งได้หลังจากวันที่ 09 กุมภาพันธ์ 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB1,154.48 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 260-283
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- L21AE01
- ผู้ผลิต:
- BACO
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | BACO | |
| Series | BACO | |
| Product Type | Push Button Head | |
| Cutout Diameter | 22mm | |
| Push Button Colour | Red | |
| Push Button Shape | Round | |
| Push Button Actuation | Spring Return | |
| Push Button Style | Mushroom | |
| Push Button Material | Plastic | |
| IP Rating | IP66 | |
| Push Button Marking | Unmarked | |
| Push Button Diameter | 70mm | |
| Body/Fixing Collar Included | No | |
| Standards/Approvals | IEC 60947-1, EN 60947-5-5, EN 60947-5-4, EN 60947-5-1, EN 60947-1, EN 418, CSA, CE, CCC, UR/UL, UL 508, NEMA ICS-5 | |
| Hazardous Area Certification | No | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand BACO | ||
Series BACO | ||
Product Type Push Button Head | ||
Cutout Diameter 22mm | ||
Push Button Colour Red | ||
Push Button Shape Round | ||
Push Button Actuation Spring Return | ||
Push Button Style Mushroom | ||
Push Button Material Plastic | ||
IP Rating IP66 | ||
Push Button Marking Unmarked | ||
Push Button Diameter 70mm | ||
Body/Fixing Collar Included No | ||
Standards/Approvals IEC 60947-1, EN 60947-5-5, EN 60947-5-4, EN 60947-5-1, EN 60947-1, EN 418, CSA, CE, CCC, UR/UL, UL 508, NEMA ICS-5 | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- FR
Mushroom Push Buttons
Range available in pull reset, turn reset, key reset, illuminated and spring return
Key version uses Ronis455 key form (all locks and keys cut to same profile)
Twist to release
Key version includes anti-vibration ring
Baco Push Buttons
All actuators have matt chromed bezels and ingress protection to IP65 as standard. Contact blocks, LED modules and transformers can all be purchased separately.
Note
For suitable contact blocks see 260-104, 260-154
Supplied with
333E Clip
