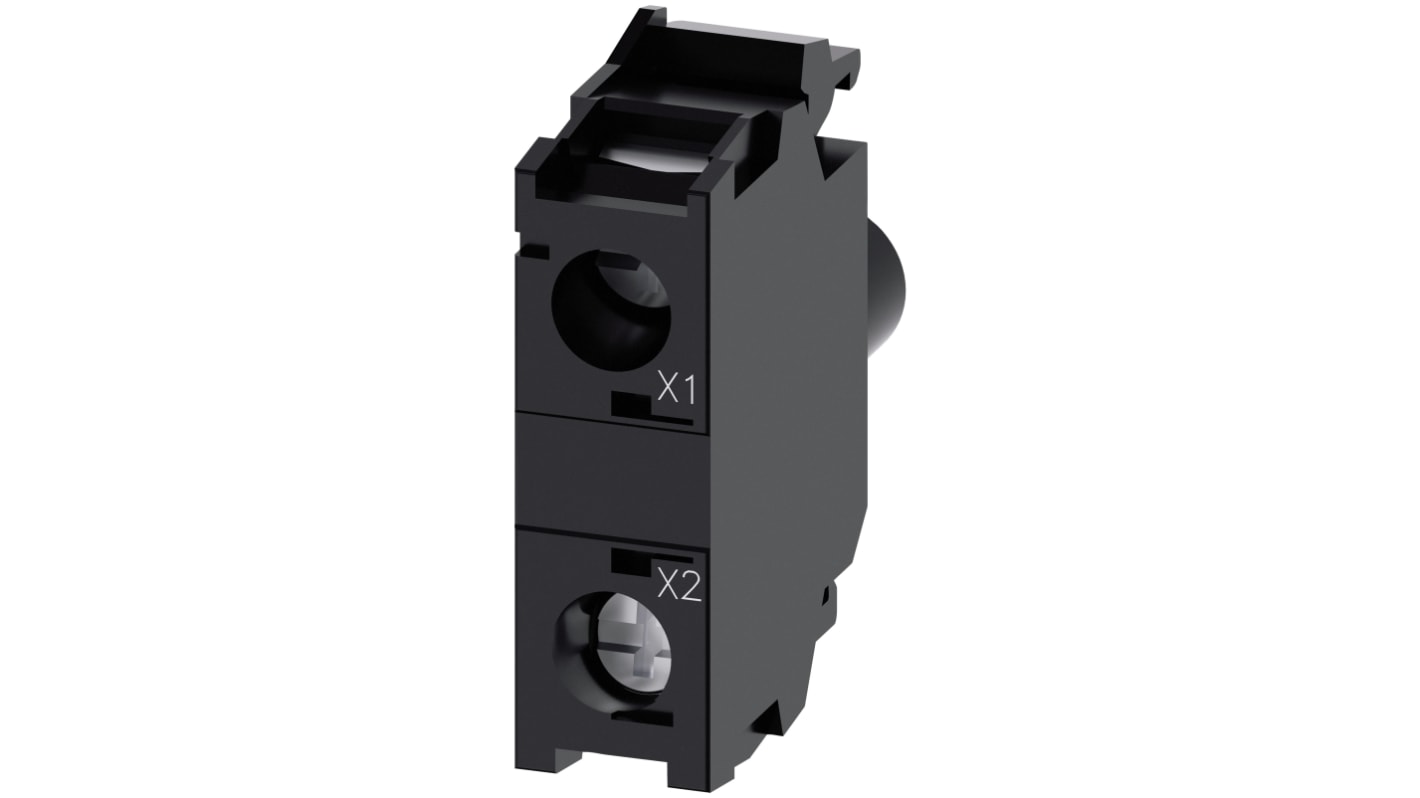

Siemens SIRIUS ACT 3SU14 Series, 230V ac, Red Light

รับส่วนลดสำหรับการซื้อจำนวนมาก

เพิ่มอีก 5 ชิ้นเพื่อประหยัดได้ 17%

ดูตัวเลือกการกำหนดราคาในการซื้อปริมาณมาก

ยอดรวมย่อย (1 ชิ้น)*

THB1,291.54

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB1,381.95

(รวมภาษีมูลค่าเพิ่ม)

Add to Basket
เลือกหรือพิมพ์จำนวน
มีในสต็อก
  • 20 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง

ชิ้น
ต่อหน่วย
การประหยัด
1 - 4THB1,291.54-
5 +THB1,062.9217%

*ตัวบ่งบอกราคา / price indicative

กลุ่มผลิตภัณฑ์ Better World ของเรานำเสนอผลิตภัณฑ์ที่ช่วยให้คุณตัดสินใจเลือกผลิตภัณฑ์ที่เป็นมิตรต่อสิ่งแวดล้อมและน่าเชื่อถืออย่างง่ายดาย

เรียนรู้เพิ่มเติมเกี่ยวกับผลิตภัณฑ์ RS Better World

RS Stock No.:
874-2263
Distrelec หมายเลขบทความ:
300-21-216
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
3SU1401-1BF20-1AA0
ผู้ผลิต:
Siemens
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

Siemens

Product Type

LED Module

Voltage

230V ac

Illumination Colour

Red

Series

SIRIUS ACT 3SU14

Illumination Type

LED

LED Included

Yes

Terminal Type

Screw

Body/Fixing Collar Included

No

Current Rating

20mA

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

70°C

Width

9.8mm

Standards/Approvals

UL, RoHS, EAC, CSA, CE, CCC

Height

33.2mm

Better World Product

Yes

Better World Claim

Extended Product Life, Low Carbon Manufacture

COO (Country of Origin):
CZ

Siemens SIRIUS ACT 3SU14 Series Led Module, 230V operating voltage, Red Illumination - 3SU1401-1BF20-1AA0


This LED module provides a panel-mounted red indicator for control circuits, using an integrated LED driven from 230 V AC. It is intended for front-plate installation and delivers a Compact Visual signal for industrial panels with screw-terminal connections. The device is suited to continuous operation in demanding ambient conditions and conforms to multiple international approvals.

Features and Benefits:


• 20 mA current rating minimises power draw during signalling
• 4 kV surge resistance protects against transient spikes
• 100000 h typical service life reduces maintenance intervals
• IP40 enclosure and IP20 Terminal separation aids safe use
• −25 °C to 70 °C operating range supports wide temperature duties

Applications


• Suitable for control panels requiring 230 V Visual feedback
• Used with screw-terminal wiring in industrial switchgear
• Ideal for signalling in transport and rail equipment
• Can be used in systems needing UL, RoHS and CE approvals
• Suitable for Compact panels where frontal mounting is required

What connection types are supported for wiring?


It accepts screw terminals for two conductors and supports solid and finely stranded conductors up to 1.5 mm² and AWG 18 to 14.

How does it perform under mechanical stress?


The unit withstands sinusoidal shock of 15 g/11 MS and vibration up to 5 g across 10 to 500 Hz and meets EN 61373 Category 1 Class B for rail use.

What optical output can be expected from the LED?


The red LED provides 450 to 1120 mcd of light intensity for clear indication.

How does the product address environmental impact?


An Environmental Product Declaration reports a total global warming potential of 0.787 kg CO2‑eq across its lifecycle.
