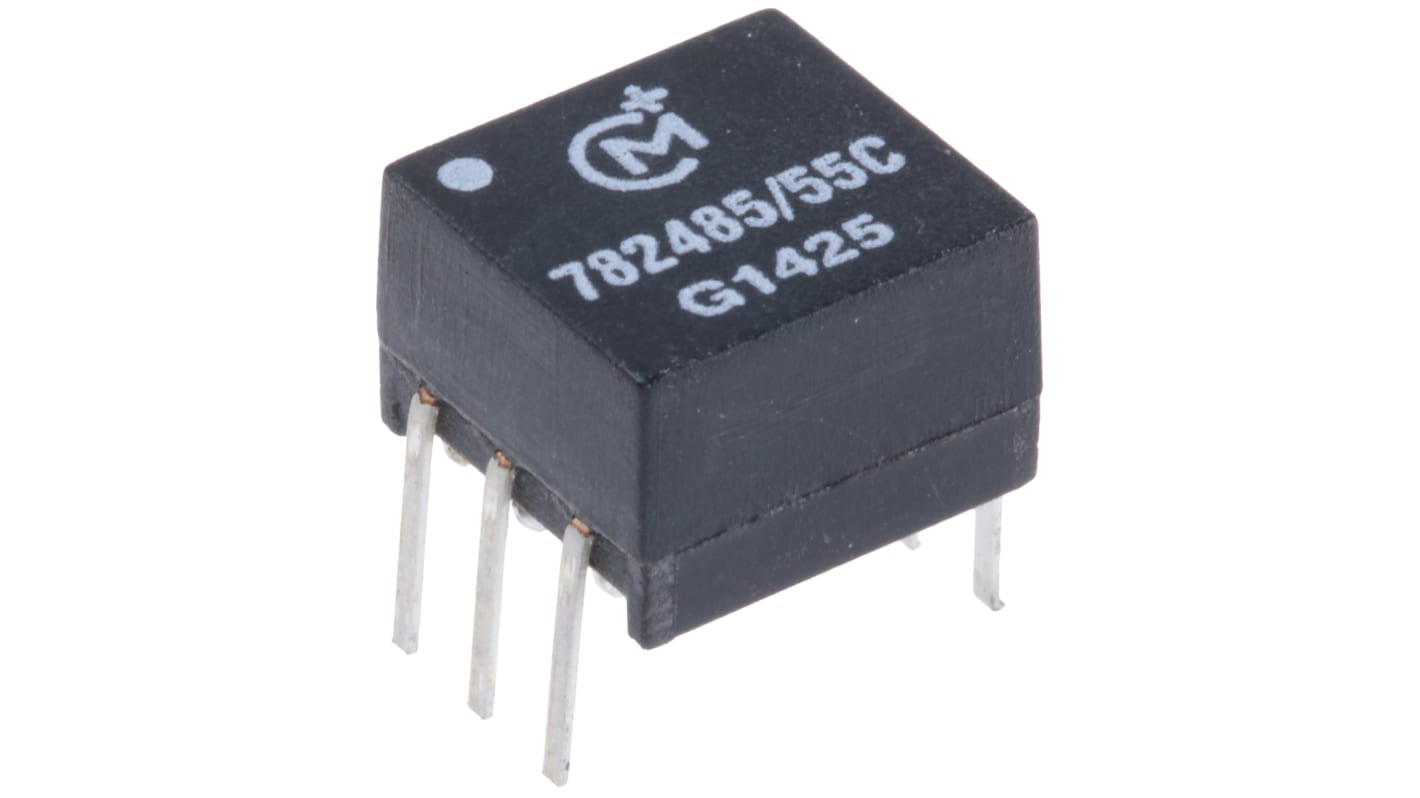

Murata Power Solutions Through Hole Pulse Transformer 1:1.5 Turns Ratio, 513μH Prim. Inductance, 0.6Ω Prim. Resistance
- RS Stock No.:
- 715-6908
- Mfr. Part No.:
- 782485/55C
- Brand:
- Murata Power Solutions
Image representative of range
Bulk discount available
Subtotal (1 unit)*
THB62.99
(exc. VAT)
THB67.40
(inc. VAT)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- เพิ่มอีก 40 ชิ้นจะส่งได้หลังจากวันที่ 15 ธันวาคม 2568 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
Units | Per unit |
|---|---|
| 1 - 12 | THB62.99 |
| 13 - 24 | THB61.43 |
| 25 + | THB60.49 |
*price indicative
- RS Stock No.:
- 715-6908
- Mfr. Part No.:
- 782485/55C
- Brand:
- Murata Power Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata Power Solutions | |
| Primary Inductance | 513µH | |
| Primary DC Resistance | 0.6Ω | |
| Turns Ratio | 1:1.5 | |
| Mounting Type | Through Hole | |
| Leakage Inductance | 0.192µH | |
| Dimensions | 9.14 x 10.46 x 6.35mm | |
| Depth | 6.35mm | |
| Length | 9.14mm | |
| Width | 10.46mm | |
| Maximum Temperature | +85°C | |
| Minimum Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Murata Power Solutions | ||
Primary Inductance 513µH | ||
Primary DC Resistance 0.6Ω | ||
Turns Ratio 1:1.5 | ||
Mounting Type Through Hole | ||
Leakage Inductance 0.192µH | ||
Dimensions 9.14 x 10.46 x 6.35mm | ||
Depth 6.35mm | ||
Length 9.14mm | ||
Width 10.46mm | ||
Maximum Temperature +85°C | ||
Minimum Temperature -40°C | ||
- COO (Country of Origin):
- CN
ADM2452E RS485/232 Isolation transformer
Isolation converter transformer with isolation voltage of 2.5 kVrms (78485 types) and 4 kVrms (78482 types)
Specifically designed to provide isolated RS-485 and RS-232 interface
Analog Devices integrated circuit AMD2452E compatable
Industry standard pinout, low profile package
3.3V and 5V versions with frequency range up to 500 kHz
Specifically designed to provide isolated RS-485 and RS-232 interface
Analog Devices integrated circuit AMD2452E compatable
Industry standard pinout, low profile package
3.3V and 5V versions with frequency range up to 500 kHz
