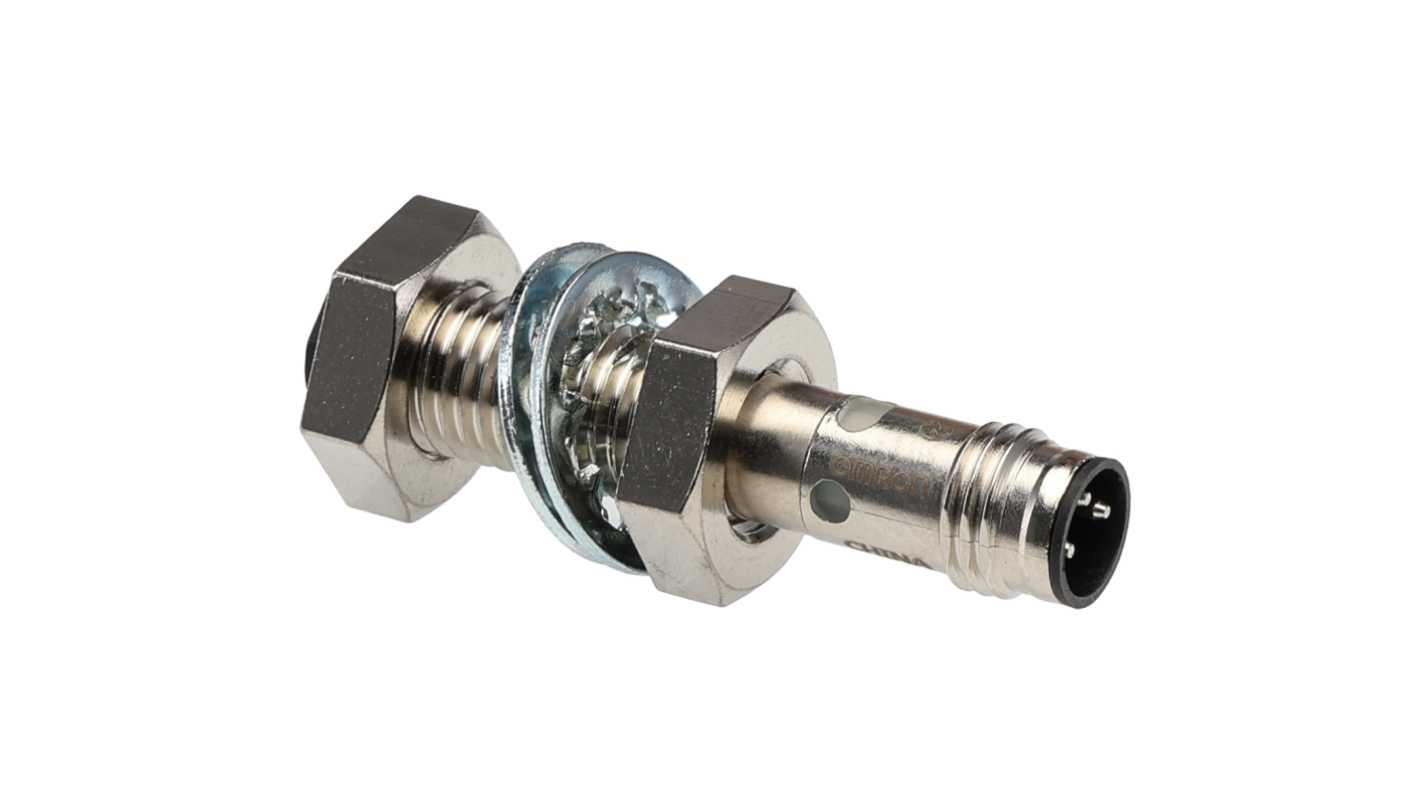

Omron Inductive Threaded Barrel Proximity Sensor, M8, 4 mm Detection, PNP NO, 10 → 30 V dc

RS Stock No.:: 188-9166
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: E2E-X4B1T8-M5
ผู้ผลิต:: Omron

Omron Inductive Threaded Barrel Proximity Sensor, M8, 4 mm Detection, PNP NO, 10 → 30 V dc

ยอดรวมย่อย (1 ชิ้น)*

THB2,590.90

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB2,772.26

(รวมภาษีมูลค่าเพิ่ม)

ส่งฟรีหากซื้อเกิน ฿2,500.00

มีในสต็อก

33 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ

ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง

ชิ้น	ต่อหน่วย
1 +	THB2,590.90

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 188-9166
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: E2E-X4B1T8-M5
ผู้ผลิต:: Omron

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Omron
	Thread Size	M8
	Sensor Technology	Inductive
	Body Style	Threaded Barrel
	Detection Range	4 mm
	Output Function	NO
	Digital Switching Output Type	PNP
	Connection Type	M8
	Supply Voltage	10 → 30 V dc
	IP Rating	IP67/IP69K
	Length	39mm
	Mounting Type	Quasi-Flush
	Housing Material	Brass, Nickel Plated
	Width	8mm
	Maximum DC Voltage	30V
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	+70°C
	Shielding	Shielded
	Maximum Switching Frequency	700Hz
	Reverse Polarity Protection	Yes
	Switching Frequency	700 Hz
	Series	E2E-NEXT
	Switching Current	16 mA
	Communication Protocol	IO-LINK
	Short Circuit Overload Protection	Yes
	Depth	13mm

	เลือกทั้งหมด
	Brand Omron
	Thread Size M8
	Sensor Technology Inductive
	Body Style Threaded Barrel
	Detection Range 4 mm
	Output Function NO
	Digital Switching Output Type PNP
	Connection Type M8
	Supply Voltage 10 → 30 V dc
	IP Rating IP67/IP69K
	Length 39mm
	Mounting Type Quasi-Flush
	Housing Material Brass, Nickel Plated
	Width 8mm
	Maximum DC Voltage 30V
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature +70°C
	Shielding Shielded
	Maximum Switching Frequency 700Hz
	Reverse Polarity Protection Yes
	Switching Frequency 700 Hz
	Series E2E-NEXT
	Switching Current 16 mA
	Communication Protocol IO-LINK
	Short Circuit Overload Protection Yes
	Depth 13mm

Omron E2E-NEXT Series Proximity Sensor, 4mm Detection Range, PNP Output - E2E-X4B1T8-M5

This inductive proximity sensor features a threaded barrel design suitable for various industrial applications. With a compact length of 39mm and an 8mm diameter, it offers a 4mm detection range, making it ideal for precise sensing tasks. The device operates effectively within a voltage range of 10 to 30V DC, ensuring versatility across different environments.

Features & Benefits

• IO-Link enabled sensor simplifies data acquisition and integration
• Robust IP67/IP69K rating ensures protection against harsh conditions
• Quasi-flush mount sensor design allows easy installation in tight spaces
• Reverse polarity and short-circuit overload protection enhance reliability
• Shielded proximity sensor minimises interference for accurate readings
• PNP output proximity sensor supports straightforward connection to control systems

Applications

• Ideal for automated assembly lines and robotic
• Suitable for detecting the presence of metal components in machining
• Commonly used in welding processes for reliable part detection
• Effective for monitoring positions in conveyor systems

What communication capabilities does this sensor provide for industrial applications?

The sensor uses the IO-Link V1.1 protocol, allowing for real-time data transfer and integration into smart factory systems. This enables predictive maintenance and efficient data analysis to improve operational performance.

How does the IP67/IP69K rating benefit its use in industrial environments?

The IP67/IP69K rating protects against dust ingress and low-pressure water jets, making it suitable for use in almost any industrial setting, including those exposed to moisture and debris.

What are the key advantages of the PNP output configuration in this sensor?

PNP output provides a simple connection to various automation systems, allowing for easy integration while enabling efficient power management within the connected network.
