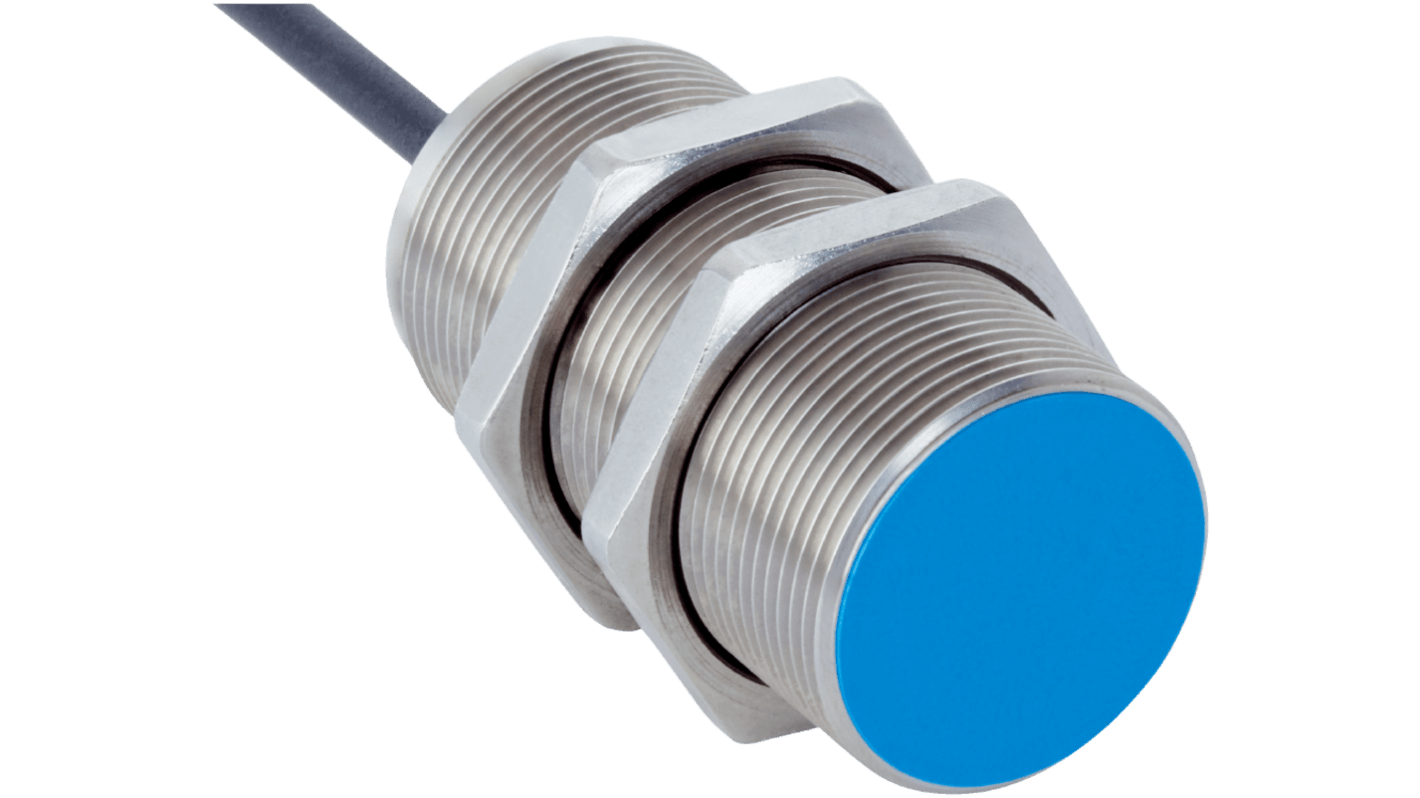

SICK IMG30-15BNOZU2S / 1135654 Barrel Inductive Proximity Sensor, M30 NPN IMG30 30V 15 mm 30 V dc 200mA

RS Stock No.:: 444-844
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: IMG30-15BNOZU2S / 1135654
ผู้ผลิต:: SICK

ยอดรวมย่อย (1 ชิ้น)*

THB2,363.69

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB2,529.15

(รวมภาษีมูลค่าเพิ่ม)

ส่งฟรีหากซื้อเกิน ฿2,500.00

สินค้าใหม่ - พรีออเดอร์วันนี้

ส่งจากวันที่ 30 ตุลาคม 2569

ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง

ชิ้น	ต่อหน่วย
1 +	THB2,363.69

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 444-844
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: IMG30-15BNOZU2S / 1135654
ผู้ผลิต:: SICK

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	SICK
	Thread Size	M30
	Product Type	Inductive Proximity Sensor
	Body Style	Barrel
	Length	60.7mm
	IP Rating	IP68
	Mount Type	PCB
	Terminal Type	4-Pin M12 Male Connector
	Housing Material	Nickel Plated Brass
	Maximum Supply Voltage	30V
	Minimum Operating Temperature	-40°C
	Materials Detected	Steel, Stainless Steel, Copper, Brass, Aluminium
	Maximum DC Voltage	30V dc
	Maximum Detection	15mm
	Maximum Operating Temperature	85°C
	Standards/Approvals	UL File No. E181493, ISO 20653:2013-03, EN 60947-5-2, EN 60529, EN 60068-2-64, EN 60068-2-6, EN 60068-2-52, EN 60068-2-27, EN 60068-2-14
	Series	IMG30
	Output Type	NPN
	Switching Current	200mA
	Maximum Switching Frequency	500Hz
	Depth	60.7mm

	เลือกทั้งหมด
	Brand SICK
	Thread Size M30
	Product Type Inductive Proximity Sensor
	Body Style Barrel
	Length 60.7mm
	IP Rating IP68
	Mount Type PCB
	Terminal Type 4-Pin M12 Male Connector
	Housing Material Nickel Plated Brass
	Maximum Supply Voltage 30V
	Minimum Operating Temperature -40°C
	Materials Detected Steel, Stainless Steel, Copper, Brass, Aluminium
	Maximum DC Voltage 30V dc
	Maximum Detection 15mm
	Maximum Operating Temperature 85°C
	Standards/Approvals UL File No. E181493, ISO 20653:2013-03, EN 60947-5-2, EN 60529, EN 60068-2-64, EN 60068-2-6, EN 60068-2-52, EN 60068-2-27, EN 60068-2-14
	Series IMG30
	Output Type NPN
	Switching Current 200mA
	Maximum Switching Frequency 500Hz
	Depth 60.7mm

COO (Country of Origin):: HU

Overview

The IMG inductive proximity sensor precisely detects metallic objects even in harsh usage environments. In price-sensitive mobile applications and automation solutions, it is suitable as a switch for end position determination of speed measurement. Using the IMG, fault-free processes can be ensured even with high temperature fluctuations. The fully-encapsulated sensor is impervious to mechanical shocks as well as vibrations and with its IP69K rating is protected against water as well as oils, coolants and all kinds of contamination.

This makes the IMG an economical solution for challenging outdoor uses and machine construction. Thanks to plug and play, the sensor can also be commissioned quickly.

At a glance

Types: M12, M18, M30

Extended sensing ranges: 4 to 20 mm

Electrical configuration: DC, 3-wire

Enclosure rating: IP67, IP68, IP69K

Temperature range: –40 to +85 °C

Nickel-plated brass housing, plastic sensing face (LCP)

Resistant to oil and cooling lubricants; suitable for use outdoors

Your Benefit

High availability and long service life thanks to rugged design according to enclosure ratings IP68 and IP69K

For harsh environments and demanding weather conditions with high humidity, extreme temperatures or constant vibrations

Reliable detection thanks to SICK ASIC technology

Optimized price/performance ratio due to incorporating only the essentials but with high-quality components and features

Fast commissioning without prior parameterization

Fault-free signal transmission thanks to high electromagnetic compatibility

Applications

Fields of application :

Speed detection for vehicles, fans and conveyor systems

Detection of flap position

Position detection for tool turrets

Tool detection on a turret

Detection of the locked and unlocked position of the turret

Consumer goods :

Position detection

Logistics :

Simple detection of the end positions and relevant intermediate positions of the load handling device

Positioning workpiece carriers

Machines and materials :

Speed measurement

Positioning workpiece carriers

Outdoor automation :

Detection and positioning tasks in balers

Position and speed detection on combine harvesters

Position detection on grape harvesters

Angle detection on the crane boom

Detection of slewing ring position
