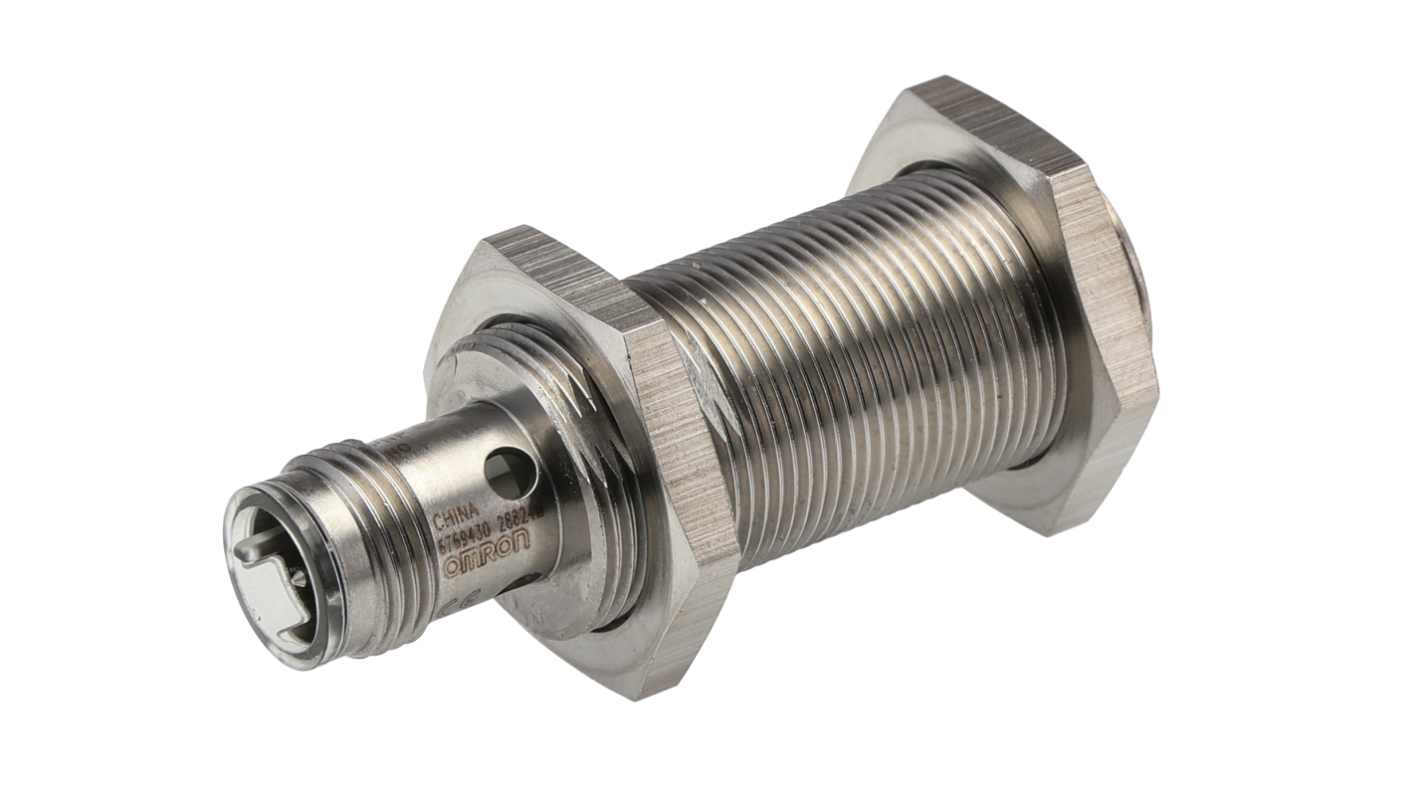

Omron Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, PNP NO, 12 → 24 V dc
- RS Stock No.:
- 404-869
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- E2A-S18KS08-M1-B1
- ผู้ผลิต:
- Omron
มีส่วนลดเมื่อซื้อจำนวนมาก
ยอดรวมย่อย (1 ชิ้น)*
THB3,036.22
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB3,248.76
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 15 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
- เพิ่มอีก 9 ชิ้นจะส่งได้หลังจากวันที่ 08 มกราคม 2569 ไปอีกประมาณ 7 วันทำการ
- เพิ่มอีก 25 ชิ้นจะส่งได้หลังจากวันที่ 22 มกราคม 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 - 5 | THB3,036.22 |
| 6 + | THB3,007.05 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 404-869
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- E2A-S18KS08-M1-B1
- ผู้ผลิต:
- Omron
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Omron | |
| Thread Size | M18 | |
| Sensor Technology | Inductive | |
| Body Style | Threaded Barrel | |
| Detection Range | 8 mm | |
| Output Function | NO | |
| Digital Switching Output Type | PNP | |
| Connection Type | M12 | |
| Supply Voltage | 12 → 24 V dc | |
| Length | 53mm | |
| IP Rating | IP67 | |
| Mounting Type | Flush Mount | |
| Housing Material | Stainless Steel | |
| Maximum DC Voltage | 32V | |
| Minimum Operating Temperature | -40°C | |
| Short Circuit Overload Protection | Yes | |
| Series | E2A | |
| Maximum Switching Frequency | 500Hz | |
| Reverse Polarity Protection | Yes | |
| Switching Current | 200 mA | |
| Switching Frequency | 500 Hz | |
| Shielding | Shielded | |
| Standards Met | IEC 60529 | |
| Maximum Operating Temperature | +70°C | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Omron | ||
Thread Size M18 | ||
Sensor Technology Inductive | ||
Body Style Threaded Barrel | ||
Detection Range 8 mm | ||
Output Function NO | ||
Digital Switching Output Type PNP | ||
Connection Type M12 | ||
Supply Voltage 12 → 24 V dc | ||
Length 53mm | ||
IP Rating IP67 | ||
Mounting Type Flush Mount | ||
Housing Material Stainless Steel | ||
Maximum DC Voltage 32V | ||
Minimum Operating Temperature -40°C | ||
Short Circuit Overload Protection Yes | ||
Series E2A | ||
Maximum Switching Frequency 500Hz | ||
Reverse Polarity Protection Yes | ||
Switching Current 200 mA | ||
Switching Frequency 500 Hz | ||
Shielding Shielded | ||
Standards Met IEC 60529 | ||
Maximum Operating Temperature +70°C | ||
สถานะRoHS: ได้รับการยกเว้น
- COO (Country of Origin):
- CN
E2A Short Body Stainless Steel
PBTP sensing face material
LED indication
Current consumption 15mA
Maximum switching current 200mA
Short circuit and reverse polarity protection
LED indication
Current consumption 15mA
Maximum switching current 200mA
Short circuit and reverse polarity protection
Omron E2A Series Proximity Sensor, 8mm Detection Range, Inductive Technology - E2A-S18KS08-M1-B1
This inductive proximity sensor is designed for applications requiring precise detection and reliable performance. With an M18 threaded barrel construction, it offers a compact length of 53mm and operates in demanding environments. This sensor is suited for automation and industrial applications, featuring a robust stainless steel housing that ensures durability.
Features & Benefits
• Detects objects within an 8mm sensing range
• Equipped with a PNP output for easy integration
• IP67 rated for superior dust and water protection
• Supports a wide supply voltage range of 12 to 24V DC
• Flush mount design for seamless installation in machinery
• Short circuit overload and reverse polarity protection enhance reliability
• Equipped with a PNP output for easy integration
• IP67 rated for superior dust and water protection
• Supports a wide supply voltage range of 12 to 24V DC
• Flush mount design for seamless installation in machinery
• Short circuit overload and reverse polarity protection enhance reliability
Applications
• Ideal for use in automated assembly lines
• Suitable for position detection in packaging machinery
• Effective in controlling access for industrial equipment
• Utilised in robotics for object detection and avoidance
• Suitable for position detection in packaging machinery
• Effective in controlling access for industrial equipment
• Utilised in robotics for object detection and avoidance
How does the design support installation flexibility in various setups?
The flush mount design allows for easy integration into equipment, reducing space requirements and enhancing aesthetics. Its versatile M18 thread also accommodates different mounting scenarios.
What electrical specifications should be taken into account when incorporating this sensor?
It operates with a supply voltage between 12 to 24V DC, making it compatible with a variety of control systems that specify PNP output, while providing up to 200 mA of switching current.
What operational temperatures can this sensor withstand in an industrial setting?
It functions effectively in a temperature range from -40 °C to +70 °C, making it suitable for both extreme cold and heat typical in industrial conditions.
What protections are built into the sensor to enhance its operational safety?
It features short circuit overload protection and reverse polarity protection, ensuring longevity and consistent performance even in fluctuating electrical environments.
Note
See typically (RS stock no. 7788757) for connectors compatible with the plug-in sensors
