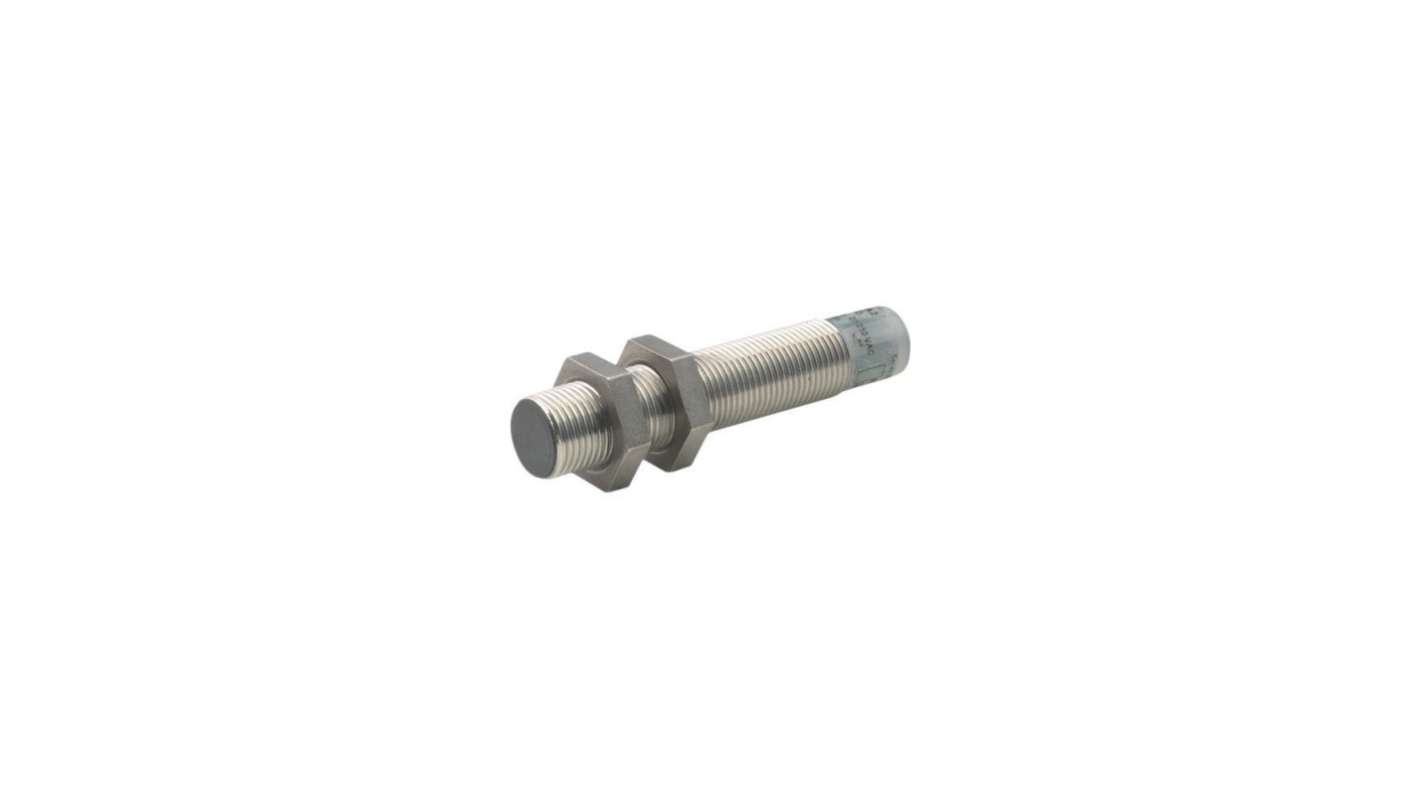

Eaton 136033 E57LBL12A2SA Threaded Barrel Inductive Proximity Sensor, M12 2-Wire E57 250V 2 mm 250 V ac 24 V dc 250mA
- RS Stock No.:
- 243-433
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 136033 E57LBL12A2SA
- ผู้ผลิต:
- Eaton
ยอดรวมย่อย (1 ชิ้น)*
THB5,435.57
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB5,816.06
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อกของผู้ผลิต
- พร้อมส่งจากวันที่ 01 กุมภาพันธ์ 2570
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB5,435.57 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 243-433
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 136033 E57LBL12A2SA
- ผู้ผลิต:
- Eaton
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Eaton | |
| Product Type | Inductive Proximity Sensor | |
| Thread Size | M12 | |
| Body Style | Threaded Barrel | |
| Length | 68mm | |
| IP Rating | IP67 | |
| Mount Type | Flush | |
| Terminal Type | M12 | |
| Maximum Supply Voltage | 250V | |
| Width | 45.72mm | |
| Housing Material | Stainless Steel | |
| Maximum Detection | 2mm | |
| Minimum Operating Temperature | -25°C | |
| Maximum DC Voltage | 24V dc | |
| Materials Detected | Metallic Object | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | CE UL 508 CSA | |
| Depth | 81.28mm | |
| Maximum Switching Frequency | 20Hz | |
| Shielding | Shielded | |
| Series | E57 | |
| Switching Current | 250mA | |
| Output Type | 2-Wire | |
| Maximum AC Voltage | 250V ac | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Eaton | ||
Product Type Inductive Proximity Sensor | ||
Thread Size M12 | ||
Body Style Threaded Barrel | ||
Length 68mm | ||
IP Rating IP67 | ||
Mount Type Flush | ||
Terminal Type M12 | ||
Maximum Supply Voltage 250V | ||
Width 45.72mm | ||
Housing Material Stainless Steel | ||
Maximum Detection 2mm | ||
Minimum Operating Temperature -25°C | ||
Maximum DC Voltage 24V dc | ||
Materials Detected Metallic Object | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals CE UL 508 CSA | ||
Depth 81.28mm | ||
Maximum Switching Frequency 20Hz | ||
Shielding Shielded | ||
Series E57 | ||
Switching Current 250mA | ||
Output Type 2-Wire | ||
Maximum AC Voltage 250V ac | ||
สถานะRoHS: ได้รับการยกเว้น
- COO (Country of Origin):
- MX
The Eaton E57 Proximity Sensor is engineered for precision and robustness. Designed to excel in demanding environments, the inductive sensor is ideal for applications that require reliable performance without compromising safety. Its flush mounting capability, combined with a plug in connection type, ensures a quick and seamless installation.
Status indication through a red LED simplifies monitoring
Designed for optimal performance across various voltages
No requirement for external controllers simplifies installation
Shock resistance gives it an edge in rugged environments
Offers excellent repeatability for precise measurements
IP67 rating guarantees protection against dust and water ingress
