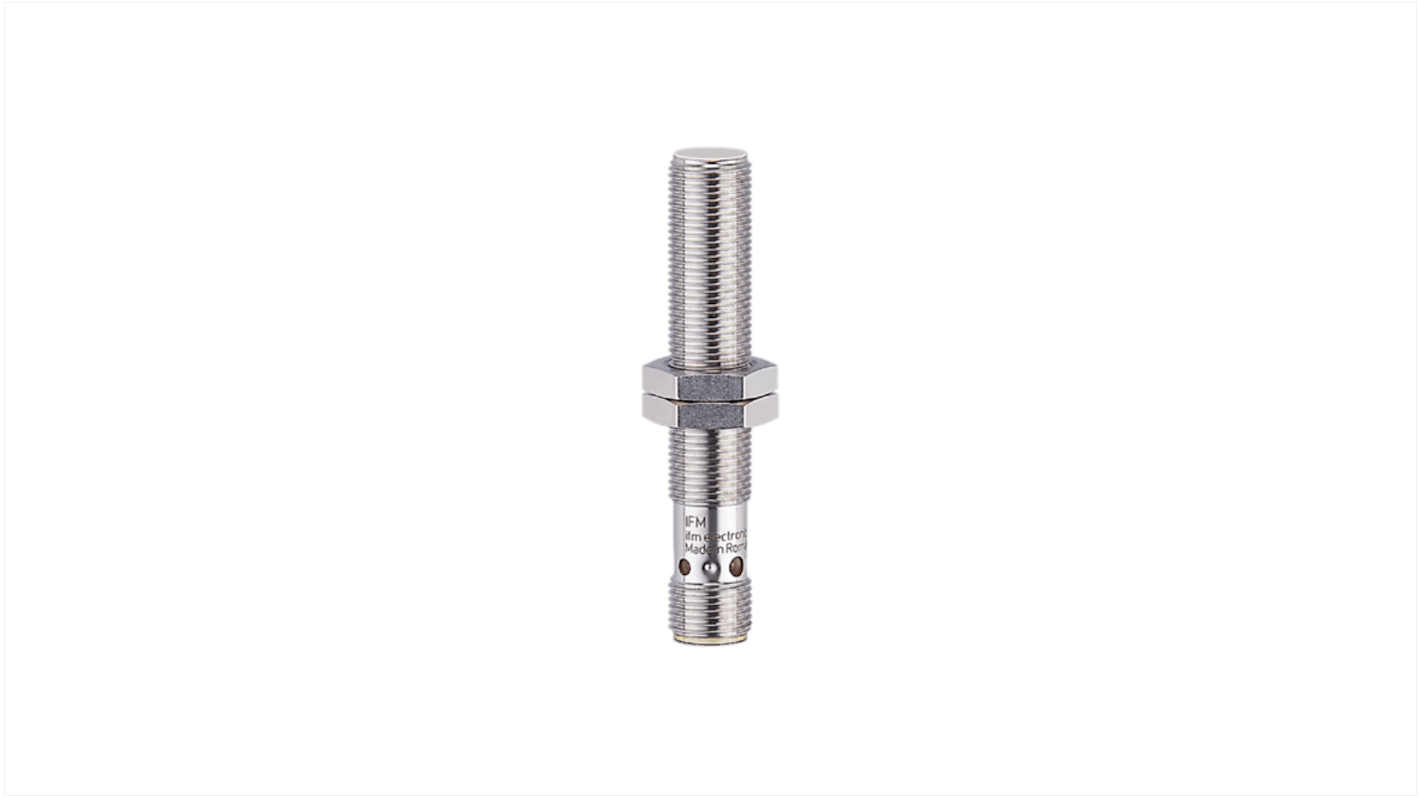

ifm electronic Inductive Threaded Barrel Proximity Sensor, M12, 7 mm Detection, PNP/NPN NC, 10 → 60 V dc
- RS Stock No.:
- 188-064
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- IFM223
- ผู้ผลิต:
- ifm electronic
ยอดรวมย่อย (1 ชิ้น)*
THB3,528.58
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB3,775.58
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 2 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB3,528.58 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 188-064
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- IFM223
- ผู้ผลิต:
- ifm electronic
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | ifm electronic | |
| Thread Size | M12 | |
| Sensor Technology | Inductive | |
| Detection Range | 7 mm | |
| Body Style | Threaded Barrel | |
| Digital Switching Output Type | PNP/NPN | |
| Output Function | NC | |
| Connection Type | M12 | |
| Supply Voltage | 10 → 60 V dc | |
| IP Rating | IP67, IP69K | |
| Length | 70mm | |
| Mounting Type | Flush | |
| Shielding | Unshielded | |
| Switching Current | 200 mA | |
| Series | IFM | |
| Switching Frequency | 400 Hz | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand ifm electronic | ||
Thread Size M12 | ||
Sensor Technology Inductive | ||
Detection Range 7 mm | ||
Body Style Threaded Barrel | ||
Digital Switching Output Type PNP/NPN | ||
Output Function NC | ||
Connection Type M12 | ||
Supply Voltage 10 → 60 V dc | ||
IP Rating IP67, IP69K | ||
Length 70mm | ||
Mounting Type Flush | ||
Shielding Unshielded | ||
Switching Current 200 mA | ||
Series IFM | ||
Switching Frequency 400 Hz | ||
- COO (Country of Origin):
- DE
The ifm electronic inductive sensor combines outstanding performance with exceptional durability to meet the demanding requirements of mobile and harsh environments. Designed for versatility, it operates effectively across a wide voltage range of 10 to 60V DC, making it suitable for various applications. Its robust threaded housing, made from stainless steel, ensures reliability and protection against harsh conditions, achieving an impressive IP67 and IP69K rating. The sensor excels with a sensing range of up to 4mm, providing enhanced detection capabilities. Features such as gold-plated contacts and reverse polarity protection further elevate its reliability, ensuring operational integrity under challenging circumstances. With a compact design and the ability to withstand temperature variations from -40 to 85°C, this sensor is a top choice for industries demanding precision and resilience.
High shock and vibration resistance for use in mobile machines
E1 type approval by the Kraftfahrt-Bundesamt (German Federal Motor Transport Authority)
High noise immunity
Large operating temperature and operating voltage range
High ingress protection for the requirements of harsh environmental conditions
E1 type approval by the Kraftfahrt-Bundesamt (German Federal Motor Transport Authority)
High noise immunity
Large operating temperature and operating voltage range
High ingress protection for the requirements of harsh environmental conditions
