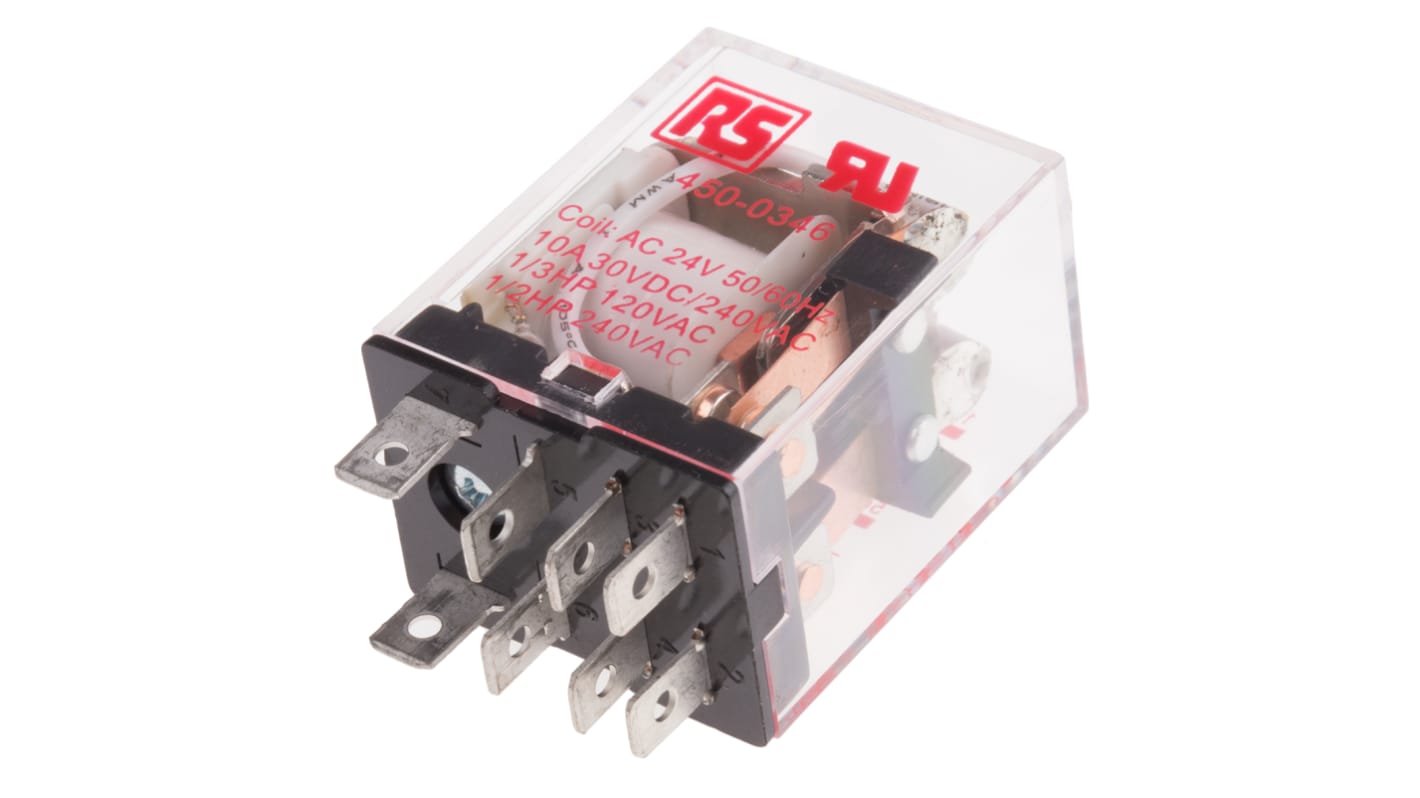

RS PRO Plug In Power Relay, 24V ac Coil, 10A Switching Current, DPDT
- RS Stock No.:
- 450-0346
- ผู้ผลิต / Manufacturer:
- RS PRO
629 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB397.47
(exc. VAT)
THB425.29
(inc. VAT)
| Units | Per unit |
| 1 - 99 | THB397.47 |
| 100 - 499 | THB386.10 |
| 500 + | THB317.76 |
- RS Stock No.:
- 450-0346
- ผู้ผลิต / Manufacturer:
- RS PRO
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
รายละเอียดสินค้า / Product Details
10A, 12A, 15A Industrial Relay
Contact resistance: 50mΩ max.
Mechanical life: 10 million operations
Electrical life: 100000 operations
Mechanical life: 10 million operations
Electrical life: 100000 operations
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Coil Voltage | 24V ac |
| Contact Configuration | DPDT |
| Mounting Type | Plug In |
| Switching Current | 10A |
| Number of Poles | 2 |
| Latching | No |
| Terminal Type | PCB Pin |
| Maximum Switching Voltage AC | 240V ac |
| Maximum Switching Voltage DC | 30V dc |
| Length | 28mm |
| Coil Resistance | 180 Ω |
| Coil Power | 1.2W |
| Standards Met | CUR E125370, UL E125370 |
| Contact Material | Silver Alloy |
| Height | 36mm |
| Life | 1000000 (Electrical) cycles, 10000000 (Mechanical) cycles |
| Maximum Operating Temperature | +55°C |
| Depth | 21.5mm |
| Isolation Coil To Contact | 1.5kV ac |
| Minimum Operating Temperature | -45°C |
| Maximum Switching Power DC | 300 W |
| Maximum Switching Power AC | 2.4 kVA |
| Application | Power |
