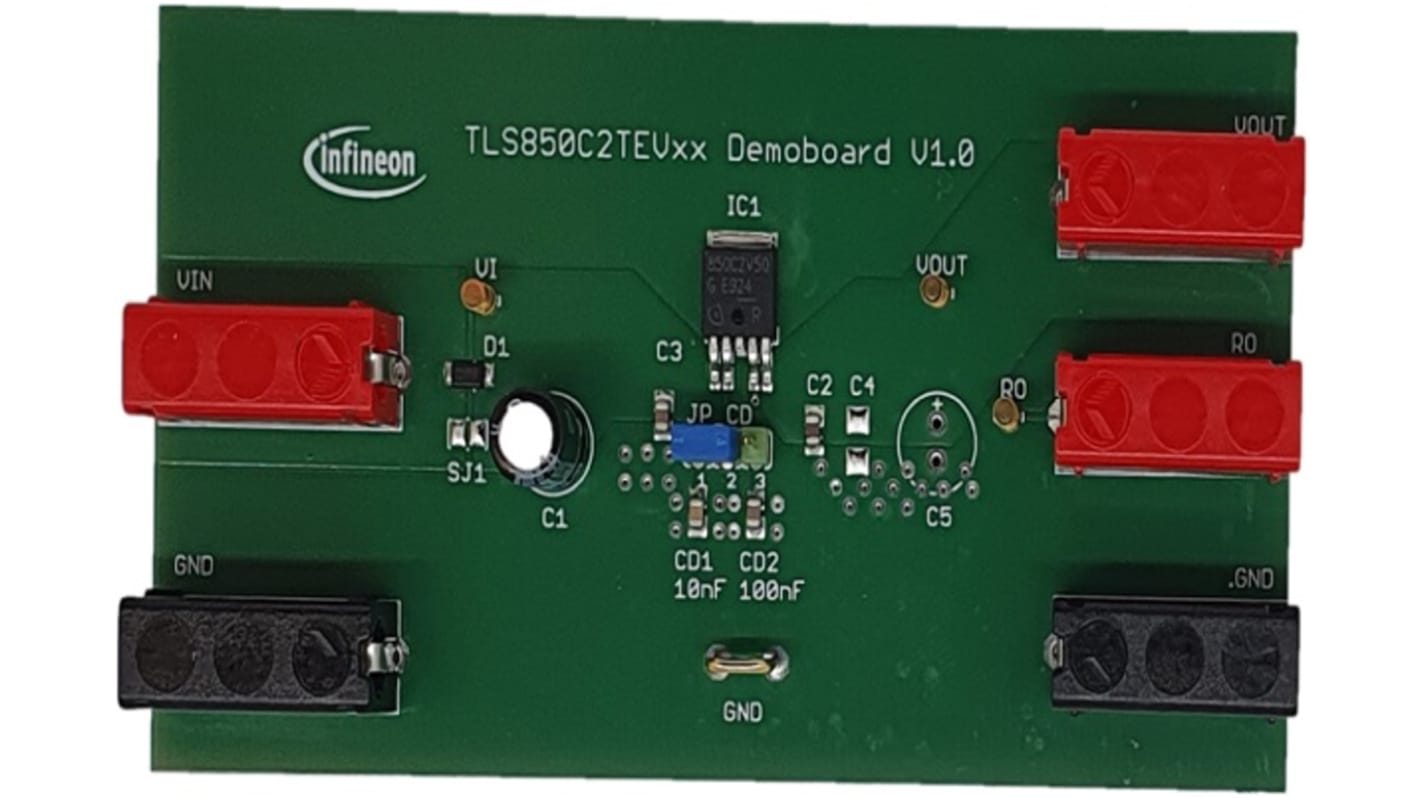

Infineon TLS850C2TE V33 Board LDO Voltage Regulator for OPTIREGTM Linear TLS850C2TEVxx DemoBoard for TLS850C2TE V33

The Infineon demo board enables evaluation of Infineon’s latest high performance automotive LDO of the OPTIREG™ family. With an input voltage range of 3 V to 40 V and very this regulator is perfectly suitable for automotive or other supply systems permanently connected to battery. The very low quiescent current of only 20 μA makes the TLS850C2TE particularly suitable for always-on applications. The reset feature supervises the output voltage, including under-voltage reset and delayed reset at power-on. The demo board allows for an easy plug and plan solution to evaluate the TLS850C2TE V33 with all necessary external components already mounted on the board. The delay timing of the Reset functionality is selectable between 2 values by using the delay capacitance jumper. For additional design verification, placeholder Sockets for additional output capacitance is available. Dedicated test points allow advanced verification on the Input, Output and Reset Output.

Plug and play evaluation capability
