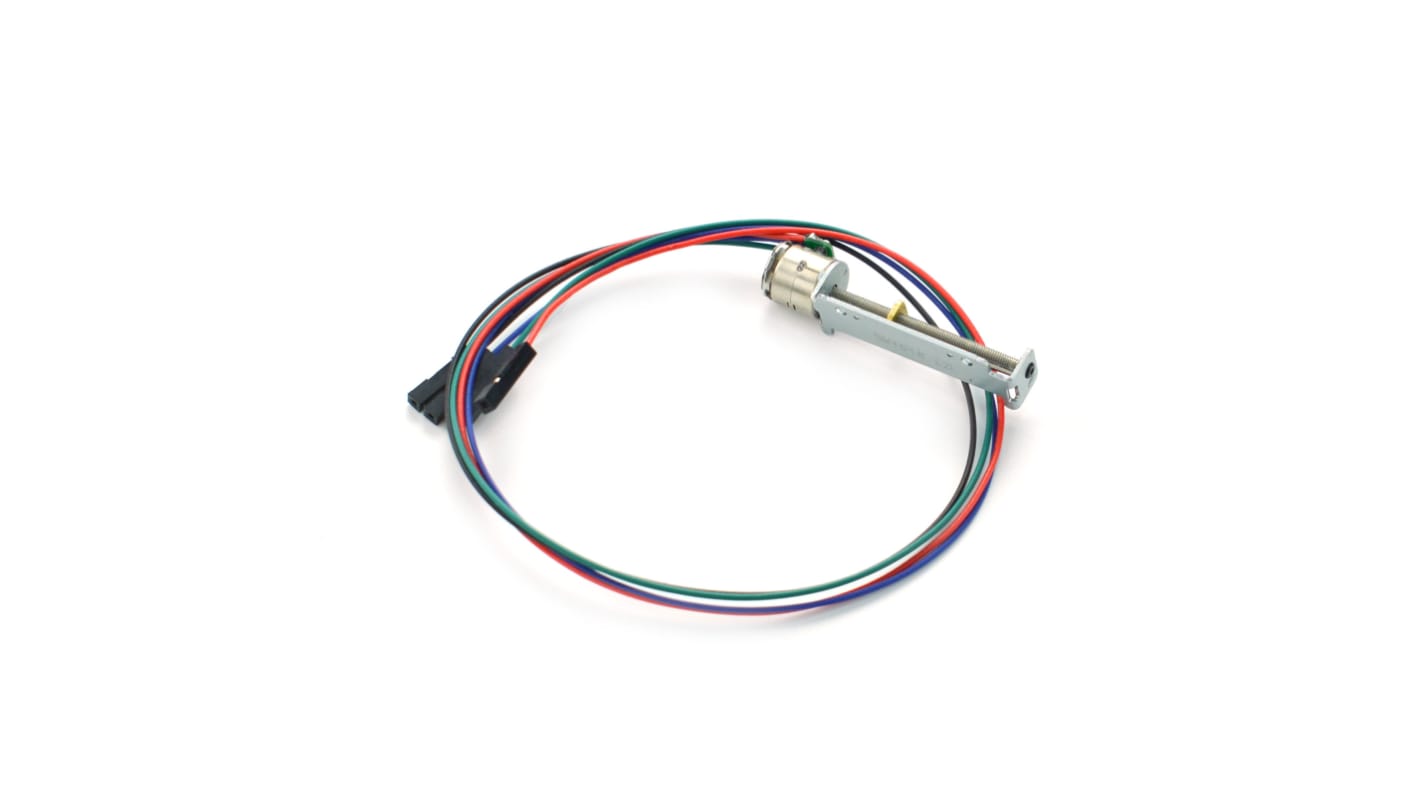

18° Micro Stepper Motor for Arduino

The DFRobot 10mm micro stepper motor offers 18° per step and 2-phase 4-wire. No special driver board required, the stepper motor can directly work with main-controllers like Arduino, ESP32, etc. There is a metal slider on the motor’s slide rod, which makes it applicable to projects like automatic door-lock, camera propeller, and DIY smart home.

Driving voltage DC3.3-5V
Coil resistance 20Ω±10%
Phase 2
Step angle 18°/step
Excitation 2-2 phase excitation
Driving method bipolar drive
Max auto-start frequency 1500PPS Min
Insulation grade E CLASS
Withstand voltage 100V AC,1S
