Infineon EVAL_PS_DP_MAIN IGBT Gate Driver for 1ED60H12AH for REF-SIC-D2PAK-BP/EVAL-1ED020I12F2-DB

ดูหมวดหมู่นี้
ไม่พร้อมจำหน่ายในตอนนี้
เราไม่ทราบว่าสินค้านี้จะกลับมาในสต็อกหรือไม่ RS ตั้งใจที่จะลบสินค้านี้ออกจากกลุ่มผลิตภัณฑ์ในเร็วๆ นี้
RS Stock No.:
238-7883
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
EVALPSDPMAINTOBO1
ผู้ผลิต:
Infineon
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

Infineon

Power Management Function

IGBT Gate Driver

Product Type

Evaluation Board

For Use With

REF-SIC-D2PAK-BP/EVAL-1ED020I12F2-DB

Kit Classification

Evaluation Board

Featured Device

1ED60H12AH

Kit Name

EVAL_PS_DP_MAIN

Standards/Approvals

No

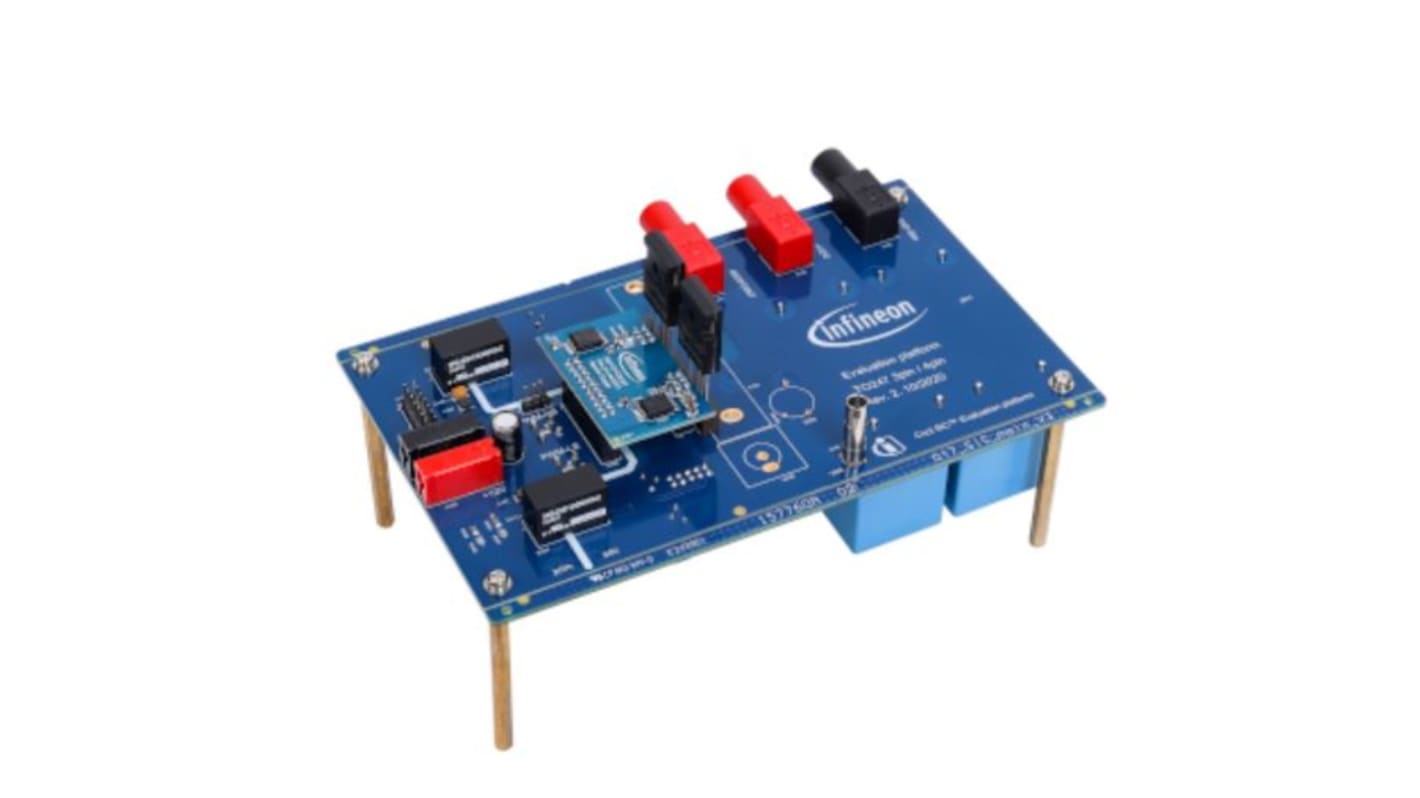

Universal discrete Power Semiconductor 600 V - 1200 V in TO-247 3-/4-pin evaluation platform


The Universal evaluation platform including EiceDRIVER™ gate driver IC was developed to show the driving options of the Discrete Power Semiconductors in TO247 3-pin and 4-pin. To show these options, the design was split into this motherboard and currently, two drive cards. The modular approach was chosen to allow the platform to be expanded with new drive cards in the future. The first drive card (REF-1EDC20I12MHDPV2 (coming soon)) contains the EiceDRIVER™ 1EDC Compact 1EDC20I12MH with an integrated active Miller clamp preventing parasitic turn-on. The second drive card (REF-1EDC60H12AHDPV2 (coming soon)) includes the EiceDRIVER™ 1EDC Compact 1EDC60H12AH allowing a bipolar supply, where VCC2 is +15 V and GND2 is negative. The motherboard was designed for a maximum voltage of 800 V and a maximum pulsed current of 130 A.

Summary of Features


  • VCC2 gate drive voltage supply from -5 V to +20 V

  • VCC1 supply fixed at +5 V

  • Gate connection via SMA-BNC connector

  • Current measurement via optional Coaxialshunt

  • Optimized commutation loop

  • External load inductor connection

  • Heatsink design allows testing at various temperatures

    • Benefits


  • Customer can use the drivecard layout as a reference for their own designs

  • It is possible to benchmark all TO-247 3-pin and 4-pin packages (independent from base material technology or manufacturer)

  • A modular approach of the motherboard allows future extensions of the platform

    • Applications : General Engineering Testing

    Board Type : Evaluation Board

    Dimensions : 180x100x60 mm

    Family : IGBT Discrete ; CoolSiC™ MOSFET

    Input Type : DC

    Product Description : The Main evaluation platform including EiceDRIVER™ gate driver IC was developed to show the driving options of the Infineon Discrete Power Semiconductors in 3-pin and 4-pin configurations.

    Product Name : EVAL_PS_DP_MAIN

    Topology : Half Bridge
