Infineon REF-AIRCON-C302A-IM564 MOSFET for IMD111T-6F040 for Motors

ดูหมวดหมู่นี้
ไม่พร้อมจำหน่ายในตอนนี้
ขออภัย เราไม่ทราบว่าสินค้านี้จะกลับมาในสต็อกเมื่อใด
RS Stock No.:
225-1578
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
REF-AIRCON-C302A-IM564
ผู้ผลิต:
Infineon
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

Infineon

Product Type

Gate Driver Module

Power Management Function

MOSFET

For Use With

Motors

Kit Classification

Reference Design

Featured Device

IMD111T-6F040

Kit Name

REF-AIRCON-C302A-IM564

Standards/Approvals

RoHS

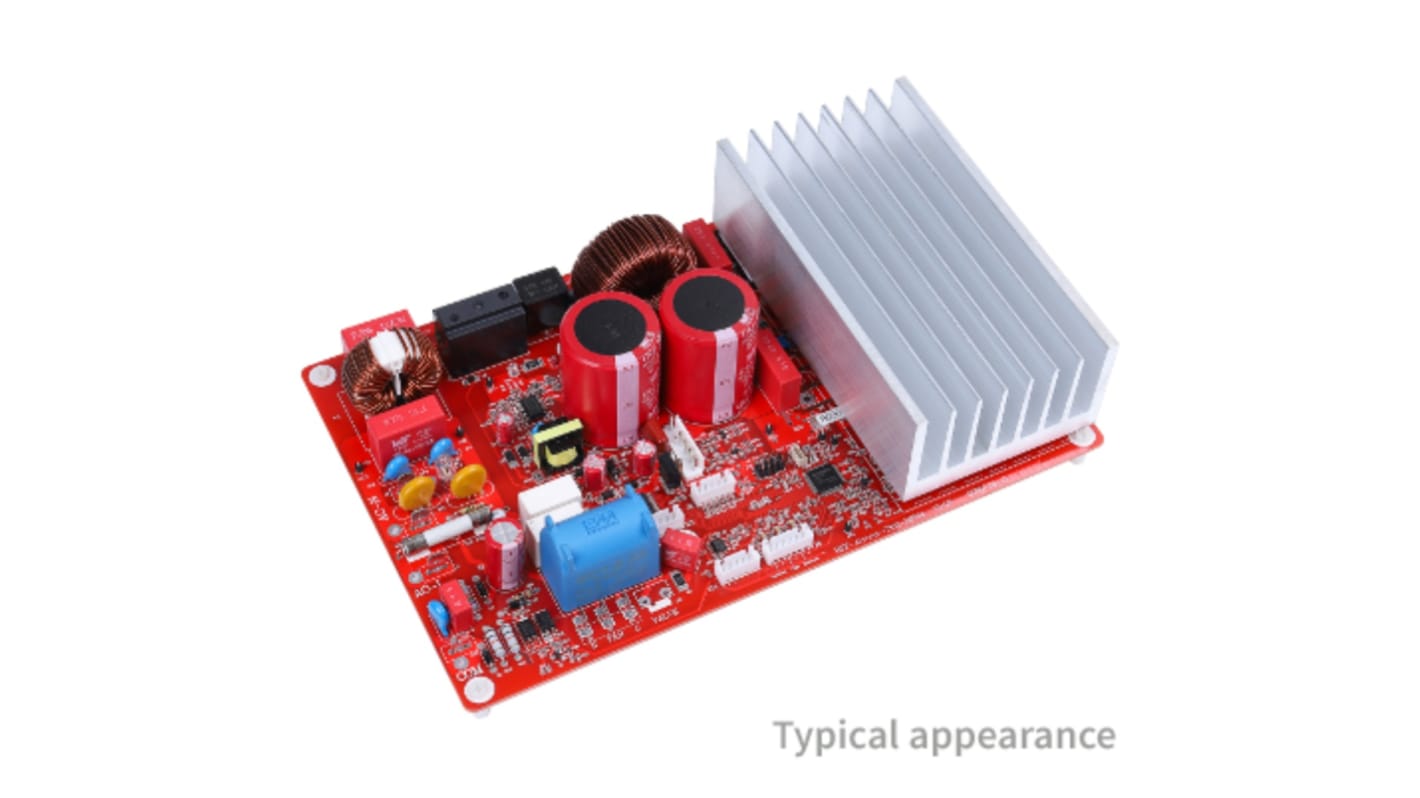

The Infineon REF-AIRCON-C302-IM564 is a 3-phase turnkey motor drive for air conditioner outdoor units (ODU) with an IMC302 iMOTION controller, a CIPOS Mini IPM IM564-X6D inverter with integrated PFC stage, a 1ED44175 gate driver for the PFC stage and a CoolSET™ ICE5AR4770BZS for the auxiliary supply. The reference board enables customer to design more efficient ODUs with smaller form factors compared to discrete implementations. Moreover the IMC302 iMOTION controller provides a fully featured motor control which allows to reduce development cycle time by concentrating on application development rather than on basic motor control.

Excellent PFC performance (PF=0999 and THD=34% measured for typical use case of 1400 W)

Up to 15% PCB space savings compared to discrete implementation

All interfaces for a complete system solution are on-board and can be controlled by Software

Ready-to-use motor control algorithms (incl PFC) for high-efficiency permanent magnet synchronous motors (PMSM)
