STMicroelectronics USB Type C Power Delivery Sink Expansion Board Based on TCPP01-M12 for STM32 Nucleo USB Power Switch
- RS Stock No.:
- 225-0007
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- X-NUCLEO-SNK1M1
- ผู้ผลิต:
- STMicroelectronics
มีส่วนลดเมื่อซื้อจำนวนมาก
ยอดรวมย่อย (1 ชิ้น)*
THB1,158.09
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB1,239.16
(รวมภาษีมูลค่าเพิ่ม)
ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้
ชิ้น | ต่อหน่วย |
|---|---|
| 1 - 4 | THB1,158.09 |
| 5 - 9 | THB1,113.63 |
| 10 + | THB1,099.68 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 225-0007
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- X-NUCLEO-SNK1M1
- ผู้ผลิต:
- STMicroelectronics
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | Evaluation Board | |
| Power Management Function | USB Power Switch | |
| For Use With | STM32 Nucleo-64 | |
| Kit Classification | Expansion Board | |
| Featured Device | TCPP01-M12 | |
| Kit Name | USB Type C Power Delivery Sink Expansion Board Based on TCPP01-M12 for STM32 Nucleo | |
| Standards/Approvals | RoHS Compliant, USB-IF Certified | |
| Distrelec Product Id | 302-93-652 | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type Evaluation Board | ||
Power Management Function USB Power Switch | ||
For Use With STM32 Nucleo-64 | ||
Kit Classification Expansion Board | ||
Featured Device TCPP01-M12 | ||
Kit Name USB Type C Power Delivery Sink Expansion Board Based on TCPP01-M12 for STM32 Nucleo | ||
Standards/Approvals RoHS Compliant, USB-IF Certified | ||
Distrelec Product Id 302-93-652 | ||

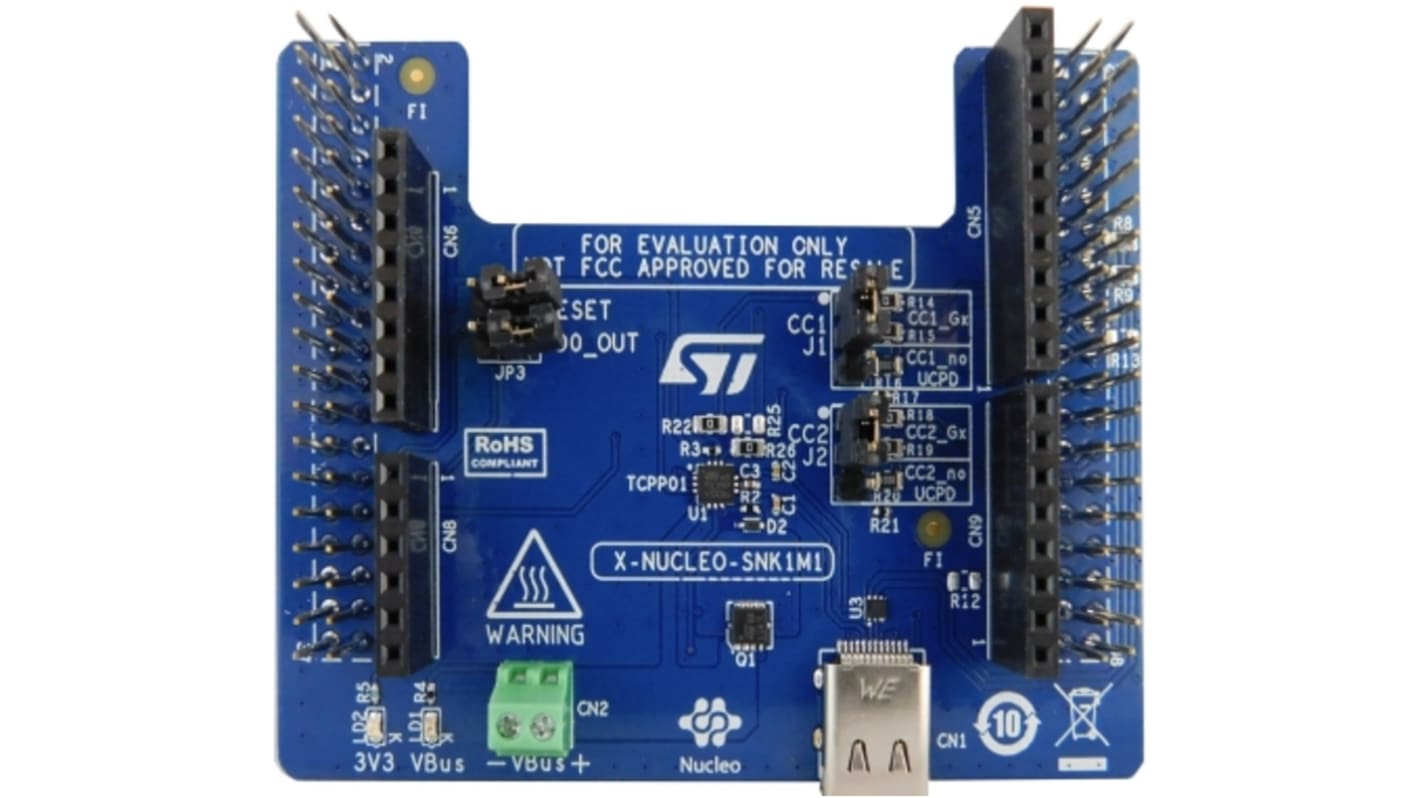

The STMicroelectronics X-NUCLEO-SNK1M1 expansion board allows evaluating the features ofTCPP01-M12 and the USB Type-C overvoltage protection for VBUS and CC lines suitable for Sink applications. The expansion board is designed to be stacked on top of any STM32 Nucleo-64development board exploiting the characteristics of the USB Type-C and Power Delivery (UCPD) peripheral embedded in their microcontrollers. It can also be stacked on other STM32 Nucleo development boards not supporting the UCPD peripheral to demonstrate the Type-C basic operations (attach, detach and power supply current capability recognition).
On-board TCPP01-M12 protection for USB Type-C and PD Sink applications
Surge protection (8/20 μs) and system-level ESD protection on VBUS
Common mode filter and ESD protection on USB 2.0 High Speed data lines
System level ESD protection on CC lines as per IEC61000-4-2 level 4 (±8 kV contact discharge)
Low power mode for battery operation allowing zero current consumption when no cable is attached
Integrated dead battery management when the device battery is fully depleted
Over temperature protection (OTP)
