Microchip FWD, PD with PD70211 12V 4.2A Power Detector for PD70211 for PD70211

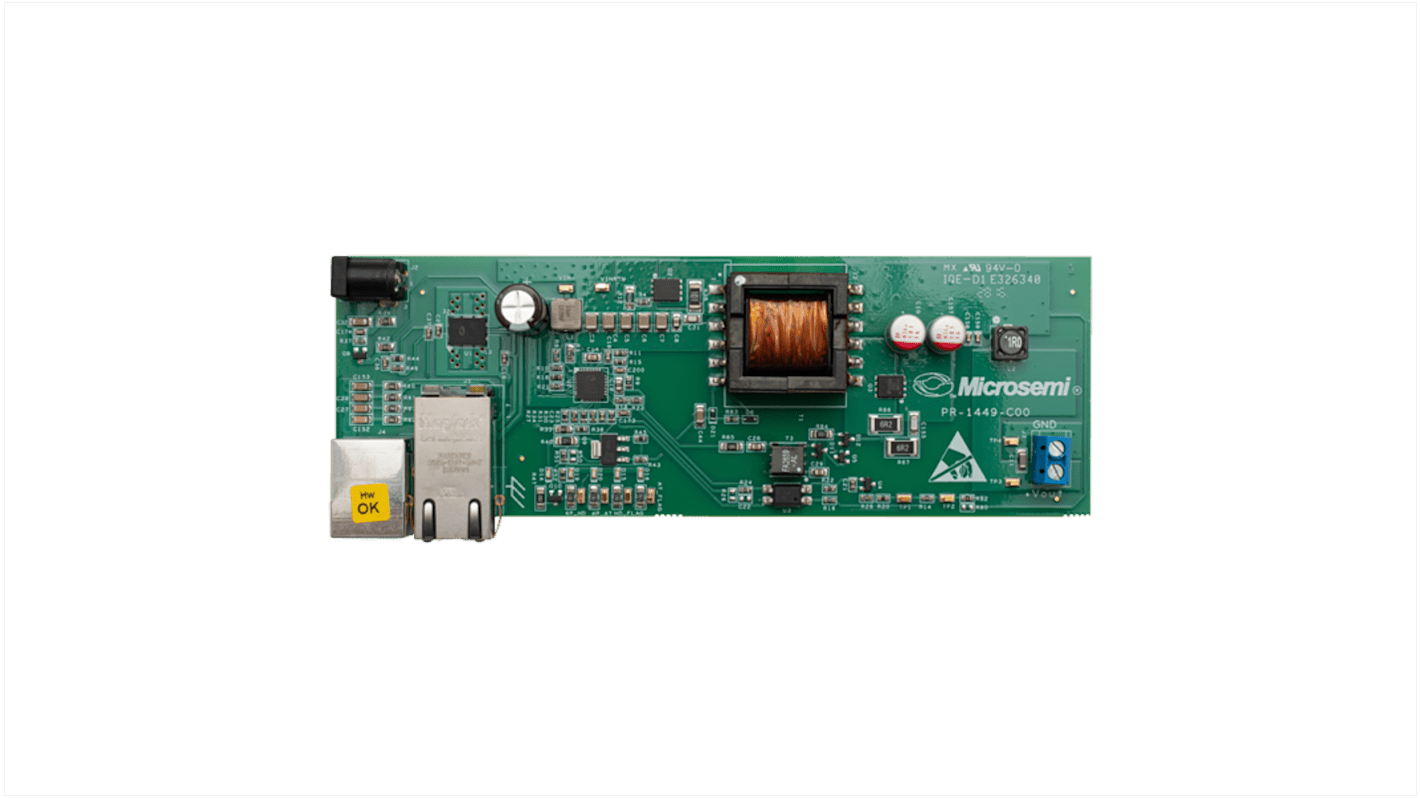

The Microchip PD70211EVB51F-12 evaluation board provides designers with an environment needed for evaluating the performance and implementation of PD applications based on PD70211 controller. The board is using a single PD controller, PD70211ILQ, to support the Detection, Class, and Power Supplying phases on the 4 pairs of the Cat5 cable. The board supports sync detection of the 4 pairs. PD70211ILQ supports the current of the HDBaseT over 4 pairs, which is more than twice the power of a standard IEEE 802.3at Type 2 interface.

Featuring PD70211 and PD70224
IEEE 802.3af/at/Dual-AT/POH standard compliant
51W - 12V / 4.25A output voltage / current
Fly back topology Wall adaptor support
Power is supplied through the 4-pairs of the Cat5 cable
