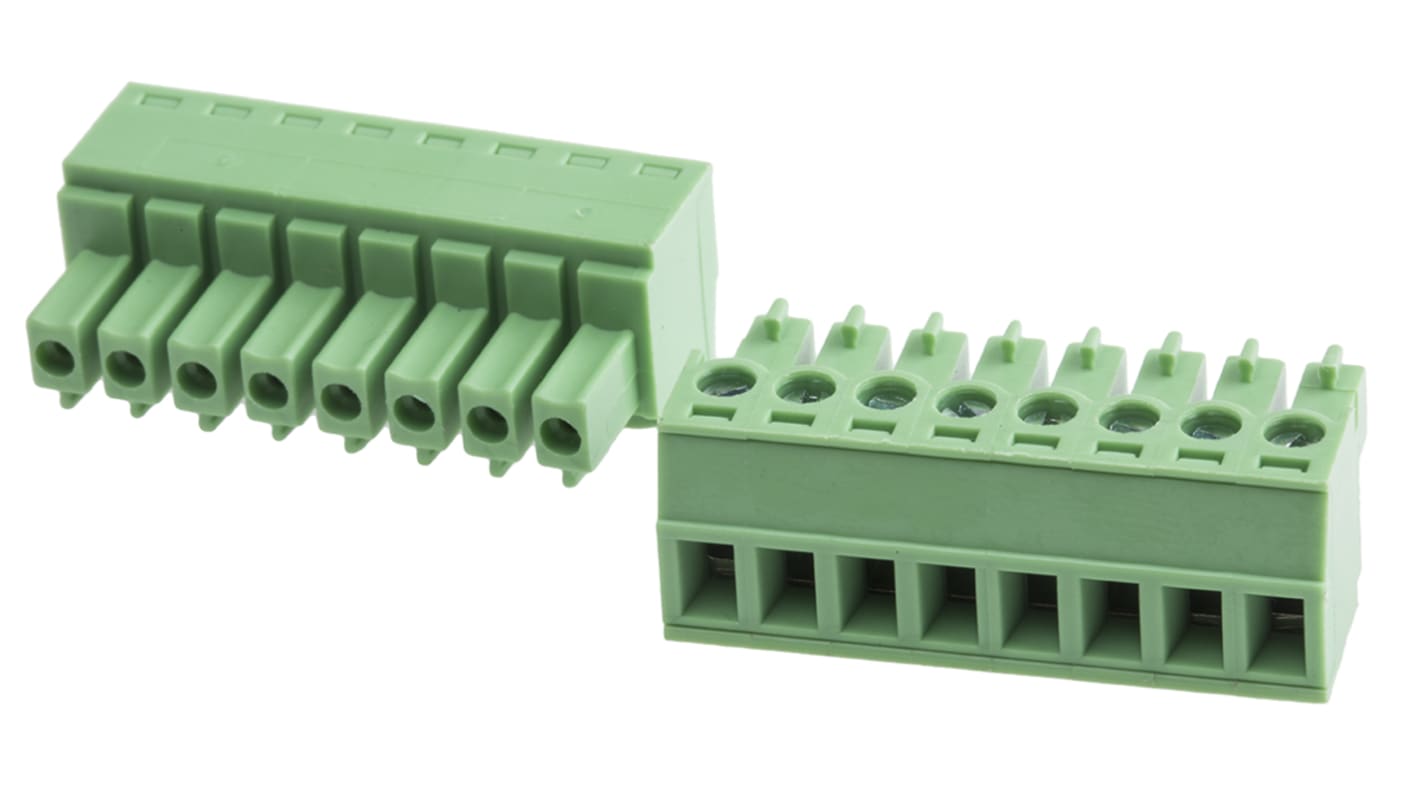

RS PRO CTB922HE Series Pluggable Terminal Block, 8-Contact, 3.81 mm Pitch, 1 Row

ดูหมวดหมู่นี้
มีส่วนลดเมื่อซื้อจำนวนมาก

ยอดรวมย่อย (1 แพ็ค แพ็คละ 5 ชิ้น)*

THB648.56

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB693.96

(รวมภาษีมูลค่าเพิ่ม)

Add to Basket
เลือกหรือพิมพ์จำนวน
ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้ - โปรดกลับมาตรวจสอบอีกครั้งภายหลัง
ชิ้น
ต่อหน่วย
ต่อแพ็ค*
5 - 95THB129.712THB648.56
100 - 495THB127.118THB635.59
500 +THB104.616THB523.08

*ตัวบ่งบอกราคา / price indicative

TH - SK- PDP
RS Stock No.:
897-1092
ผู้ผลิต:
RS PRO
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

RS PRO

Product Type

Pluggable Terminal Block

Number of Contacts

8

Pitch

3.81mm

Number of Rows

1

Current

8A

Housing Material

Polyamide

Minimum Wire Size mm²

0.13mm²

Maximum Wire Size mm²

1.31mm²

Minimum Wire Size AWG

16 AWG

Maximum Wire Size AWG

26 AWG

Orientation

Right Angle

Wire Connection Method

Screw

Colour

Green

Voltage

125 V

Depth

15.5mm

Standards/Approvals

No

Series

CTB922HE

Length

30.48mm

Width

11.2 mm

COO (Country of Origin):
CN

RS PRO 3.81 mm Pitch, 8-way PCB Terminal Block


An efficient and straightforward way to connect two or more wires, this 8-way printed circuit board (PCB) terminal block is used in conjunction with PCB header blocks. It can be mounted directly onto a PCB and is versatile and installation is straightforward.

For easy connection and quick removal should any issues arise, this terminal block is pluggable. Its screw termination method means that connections can be secured in a simple and reliable fashion, with the swift tightening of a screw. Thanks to its through-hole mounting method, it's also very straightforward to set up. Finally, it accepts strained and solid cable and a wire size range of 0.13 mm² to 1.3 mm².

An indication of high resistance to flames, the green polyamide (PA66) material that its housing is made from boasts a UL94-V0 certification. This versatile component is found across electronic systems – from domestic devices to industrial applications.

Features and Benefits


• 8 contacts

• Pitch of 3.81 mm

• Single row

• Through-hole mounting

• Female

• Screw termination method

• Right angle body orientation

• Voltage rating of 125 V

• Current rating of 8 A

• Made of polyamide (green)

• Dimensions of 31.27 mm (L) x 11.2 mm (W) 15.5 mm (D)

RS PRO


RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
