RS PRO Communication Module for Use with RS PRO Logic Modules, 110 → 240 V ac Supply, RS485 Protocol (D-), RS485

RS Stock No.:: 917-6383
ผู้ผลิต:: RS PRO

RS PRO Communication Module for Use with RS PRO Logic Modules, 110 → 240 V ac Supply, RS485 Protocol (D-), RS485

ยอดรวมย่อย (1 ชิ้น)*

THB1,509.56

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB1,615.23

(รวมภาษีมูลค่าเพิ่ม)

ส่งฟรีหากซื้อเกิน ฿2,500.00

มีในสต็อก

เพิ่มอีก 38 ชิ้นจะส่งได้หลังจากวันที่ 08 ธันวาคม 2568 ไปอีกประมาณ 7 วันทำการ

ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง

ชิ้น	ต่อหน่วย
1 +	THB1,509.56

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 917-6383
ผู้ผลิต:: RS PRO

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	RS PRO
	Number of Inputs	1
	Output Type	RS485 Protocol (D-), RS485 Protocol (D+), RS485 Protocol (Two Wires)
	For Use With	RS PRO Logic Modules
	Supply Voltage	110 → 240 V ac
	Input Type	TTL Level
	Number of Outputs	1
	Network Type	ModBus
	Communication Port Type	RS485
	Maximum Operating Temperature	+55°C
	Number of Communication Ports	1
	Programming Language Used	Ladder Programming
	Mounting Type	DIN Rail
	Width	36mm
	Length	90mm
	Program Capacity	250 lines
	Depth	60mm
	Standards Met	CE, cULus Listed
	Dimensions	36 x 90 x 60 mm
	Minimum Operating Temperature	-10°C
	Programming Interface	Computer

	เลือกทั้งหมด
	Brand RS PRO
	Number of Inputs 1
	Output Type RS485 Protocol (D-), RS485 Protocol (D+), RS485 Protocol (Two Wires)
	For Use With RS PRO Logic Modules
	Supply Voltage 110 → 240 V ac
	Input Type TTL Level
	Number of Outputs 1
	Network Type ModBus
	Communication Port Type RS485
	Maximum Operating Temperature +55°C
	Number of Communication Ports 1
	Programming Language Used Ladder Programming
	Mounting Type DIN Rail
	Width 36mm
	Length 90mm
	Program Capacity 250 lines
	Depth 60mm
	Standards Met CE, cULus Listed
	Dimensions 36 x 90 x 60 mm
	Minimum Operating Temperature -10°C
	Programming Interface Computer

COO (Country of Origin):: IN

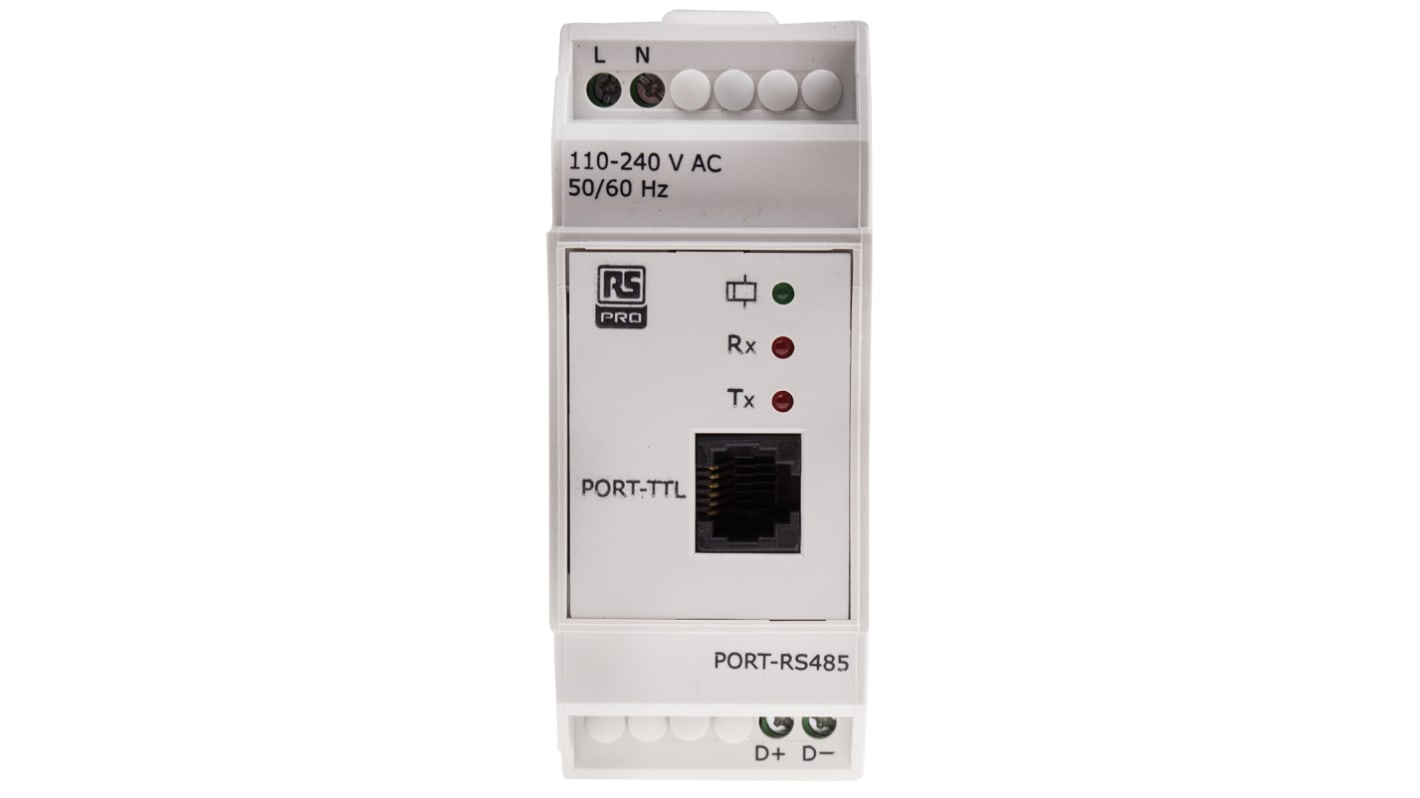

RS PRO Logic RS485 Communication Module

An RS485 communication module enabling communication between devices using the RS485 standard. The RS485 communications module provides Modbus communication and can be used to connect multiple devices making it ideal for use in automation applications in both commercial and industrial environments.

The controllers are expandable with NX-Comm RS485 Modules and suitable for use with RS PRO Logic Module 917-6361

Features and Benefits

Input TTL Level

Output RS485 Protocoll (2 wires)

Baudrate up to 9600 Baud

Modbus Communication RTU Slave

Red LED Indicators for TX & RX Green LED power indicator

DIN rail mounting

Weight of 80g

Applications

HVAC Controls

Machine Controls involving Motor, Pump and Valve

Vehicle Control Monitoring

Baggage handling

Conveyor systems and Elevators

Exhaust and Filtering Systems

Water-treatment plants

Printing and Packaging Machines

Interior and Exterior Lighting Control

Door, Gate, Shutter, Sun blinds and Awning control

Irrigation Control Systems

Automation of Compressors and Pumps for Air Conditioning requirements

Software

RS Pro Logic Module software is available as a free download via the following link:

http://auto.designspark.info/exe/RS_Logic_Module.zip

The free logic module software provides a user friendly interface that allows easy programming, simulation and debugging on a PC.
