- RS Stock No.:
- 917-6373
- ผู้ผลิต:
- RS PRO
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Logic Module | |
| Number of Inputs | 8 | |
| Output Type | Digital | |
| Input Type | Digital | |
| Number of Outputs | 4 | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 55°C | |
| Depth | 65mm | |
| Length | 90mm | |
| Standards/Approvals | CE, cULus Listed, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 61000-3-2, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-29, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6 | |
| Width | 72mm | |
| Number of Communication Ports | 1 | |
| Supply Voltage | 110, 240V ac | |
| Output Current | 8A | |
| Display Included | Yes | |
| Programming Language Used | Ladder Programming | |
| Mount Type | DIN Rail | |
| Battery Backup | Yes | |
| Communication Port Type | Computer, Modbus | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand RS PRO | ||
Product Type Logic Module | ||
Number of Inputs 8 | ||
Output Type Digital | ||
Input Type Digital | ||
Number of Outputs 4 | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 55°C | ||
Depth 65mm | ||
Length 90mm | ||
Standards/Approvals CE, cULus Listed, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 61000-3-2, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-29, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6 | ||
Width 72mm | ||
Number of Communication Ports 1 | ||
Supply Voltage 110, 240V ac | ||
Output Current 8A | ||
Display Included Yes | ||
Programming Language Used Ladder Programming | ||
Mount Type DIN Rail | ||
Battery Backup Yes | ||
Communication Port Type Computer, Modbus | ||
- COO (Country of Origin):
- IN

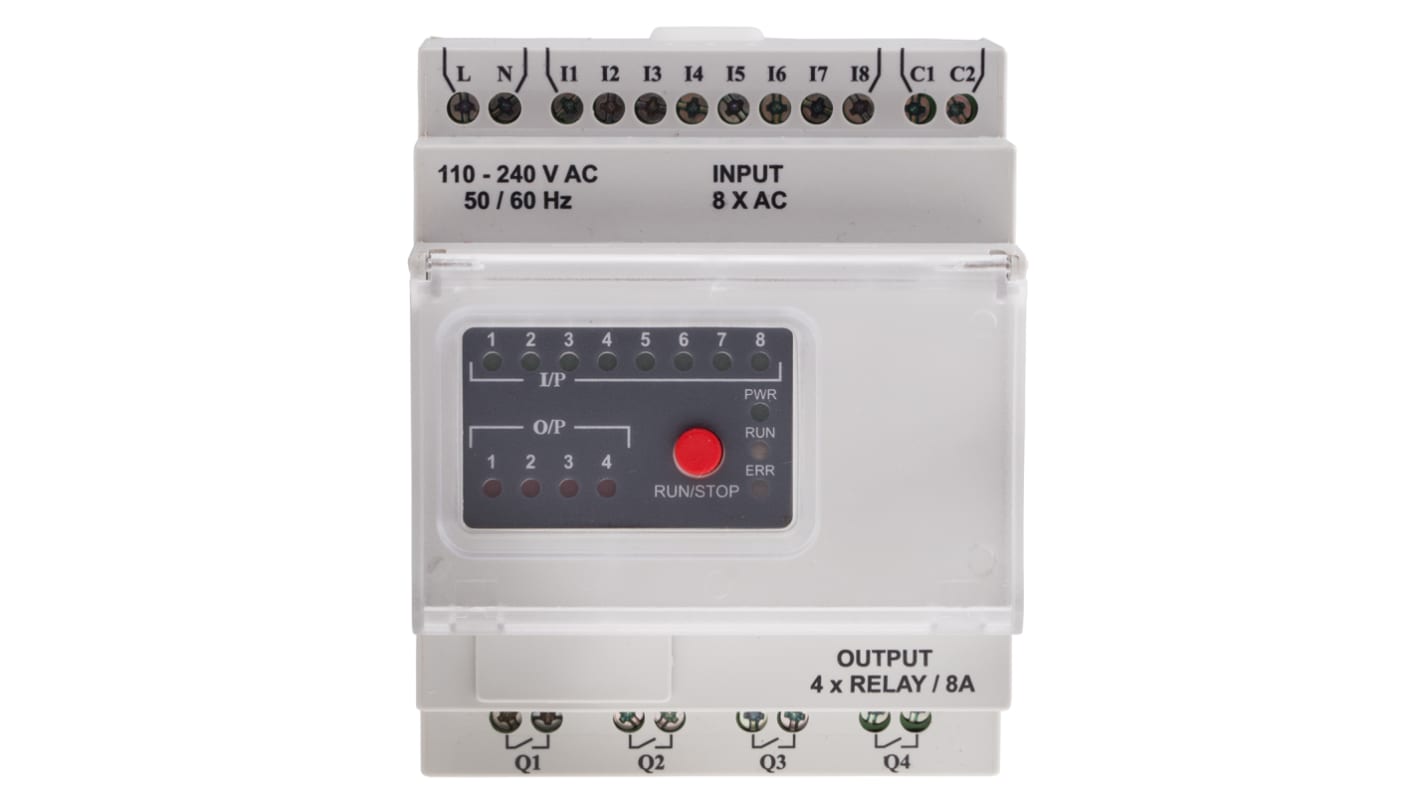

RS PRO Logic Module - 8 Inputs, 4 Outputs, Digital, Relay, ModBus Networking, Computer Interface
This logic module from RS PRO is designed to reduce the need for human intervention, allowing machines to perform functions independently. It's a good choice for use with equipment that runs multiple automated processes.
The intelligent controller needs few conducting wires to establish a connection, as it's fitted with a serial communication port. It's also suitable for use in a wide range of environments thanks to its broad operating temperature range of -10°C to +55°C.
This device has been rigorously tested for safety and quality by engineers. You'll often find it used in large-scale Heating, Ventilation and Air-Conditioning (HVAC) systems.
The RS PRO logic module software is available as a free download at the following link:
https://auto.designspark.info/exe/RS_Logic_Module.zip
The free logic module software provides a user-friendly Interface for easy programming, simulation and debugging on a PC.
Features and Benefits
For the suitable software download please see the RS PRO Software and Manuals download centre(https://www.rs-online.com/designspark/rs-pro-software-and-manuals)
