Siemens LOGO! Series I/O module for Use with LOGO! 8, LOGO! 8.2, 12 → 24 V dc Supply, 2-Input, Analogue Input
- RS Stock No.:
- 825-1694
- Distrelec หมายเลขบทความ:
- 110-95-455
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 6ED1055-1MA00-0BA2
- ผู้ผลิต:
- Siemens
ยอดรวมย่อย (1 ชิ้น)*
THB6,168.12
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB6,599.89
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- เพิ่มอีก 111 ชิ้นจะส่งได้หลังจากวันที่ 08 ธันวาคม 2568 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB6,168.12 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 825-1694
- Distrelec หมายเลขบทความ:
- 110-95-455
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 6ED1055-1MA00-0BA2
- ผู้ผลิต:
- Siemens
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Siemens | |
| Manufacturer Series | LOGO! | |
| Number of Inputs | 2 | |
| For Use With | LOGO! 8, LOGO! 8.2 | |
| Supply Voltage | 12 → 24 V dc | |
| Input Type | Analogue | |
| Width | 35.5mm | |
| Length | 90mm | |
| Depth | 58mm | |
| Standards Met | CE, CSA, FM | |
| Dimensions | 90 x 35.5 x 58 mm | |
| Minimum Operating Temperature | 0°C | |
| Programming Interface | Computer | |
| Number of Analogue Inputs | 2 | |
| Mounting Type | DIN Rail | |
| Maximum Operating Temperature | +55°C | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Siemens | ||
Manufacturer Series LOGO! | ||
Number of Inputs 2 | ||
For Use With LOGO! 8, LOGO! 8.2 | ||
Supply Voltage 12 → 24 V dc | ||
Input Type Analogue | ||
Width 35.5mm | ||
Length 90mm | ||
Depth 58mm | ||
Standards Met CE, CSA, FM | ||
Dimensions 90 x 35.5 x 58 mm | ||
Minimum Operating Temperature 0°C | ||
Programming Interface Computer | ||
Number of Analogue Inputs 2 | ||
Mounting Type DIN Rail | ||
Maximum Operating Temperature +55°C | ||
- COO (Country of Origin):
- CN

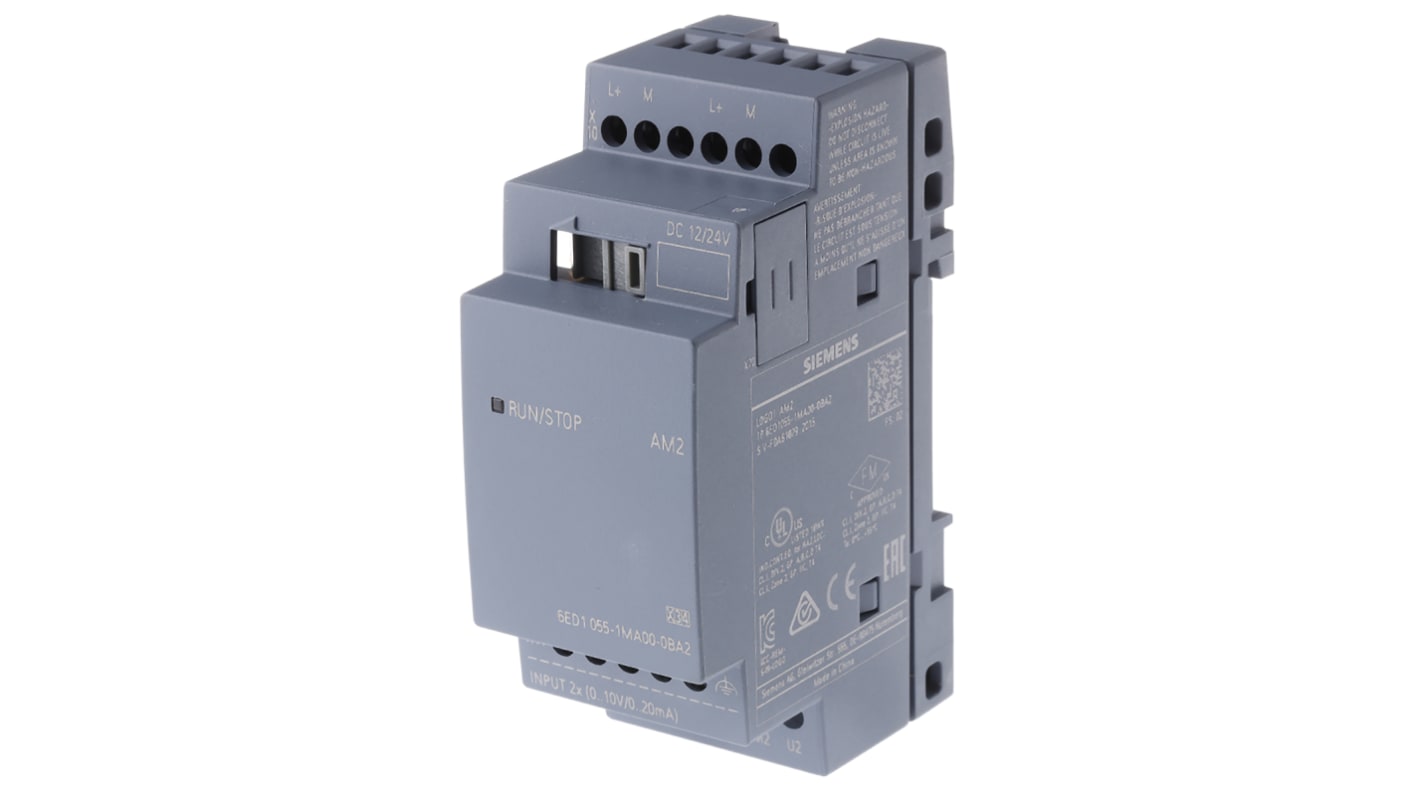

Siemens I/O Module For Use With LOGO! 8 and LOGO! 8.2 Series, Analogue, 12 to 24V DC Voltage Rating - 6ED1055-1MA00-0BA2
Achieve close control over your machines with this PLC I/O module from Siemens. By converting analogue inputs into readable information for your controller, it lets you use sensors and measuring equipment in your automated system. Two integrated ports mean the device supports two analogue appliances at once, so you can build an effective control setup. Thanks to a 12 to 24V DC voltage rating, it's compatible with common electrical supplies. An IP20 rating supports user safety through protection from solid objects larger than 12mm, including fingers. You can mount this module on a standard DIN rail mounting, making installation quick and easy.
• Narrow dimensions of 35.5 (width) x 90 (height) x 58mm (depth) to easily fit into busy systems
• Working temperature range between 0°C and +55°C to perform in demanding industrial settings
• Low current consumption of up to 20mA per input minimises power usage
• Working temperature range between 0°C and +55°C to perform in demanding industrial settings
• Low current consumption of up to 20mA per input minimises power usage
Can I use this input module with temperature sensors?
No, you can't, as they use special PT100/1000 inputs. If you need to use temperature sensors with your PLC, you should choose a suitable Siemens I/O module (825-1697).
