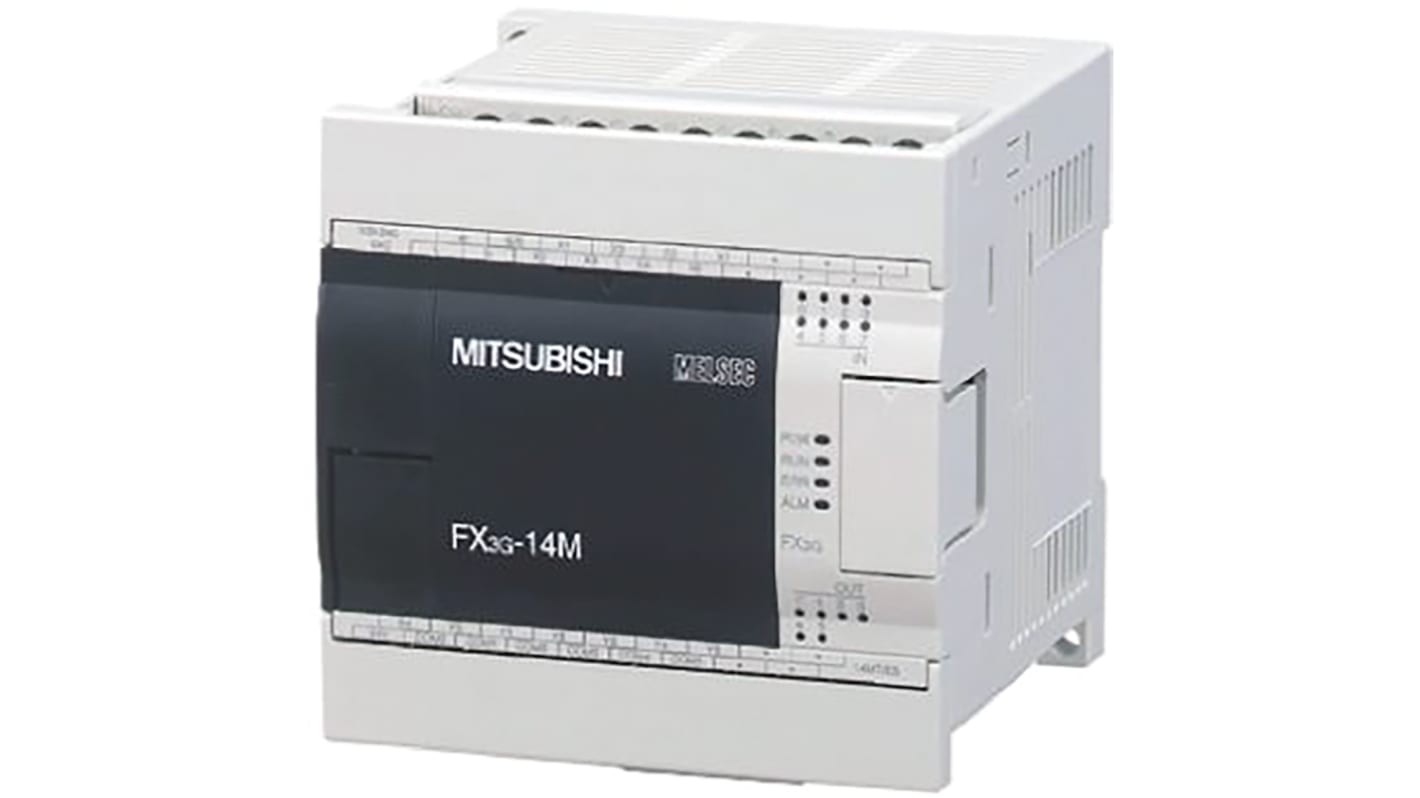

Mitsubishi Electric FX3G Series Logic Module, 8-Input, Sink Input, 6 Outputs, Transistor Output
- RS Stock No.:
- 705-4947
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- FX3G-14MT/DSS
- ผู้ผลิต:
- Mitsubishi Electric
ไม่พร้อมจำหน่ายในตอนนี้
เราไม่ทราบว่าสินค้านี้จะกลับมาในสต็อกหรือไม่ เนื่องจากผู้ผลิตกำลังจะยกเลิกการผลิตสินค้านี้
- RS Stock No.:
- 705-4947
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- FX3G-14MT/DSS
- ผู้ผลิต:
- Mitsubishi Electric
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Mitsubishi Electric | |
| Product Type | Logic Module | |
| Series | FX3G | |
| Number of Inputs | 8 | |
| Output Type | Transistor | |
| Input Type | Sink | |
| Number of Outputs | 6 | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 50°C | |
| Length | 90mm | |
| Standards/Approvals | UL, cUL, CE | |
| Depth | 86mm | |
| Width | 90mm | |
| Battery Backup | Yes | |
| Output Current | 800mA | |
| Display Included | Yes | |
| Programming Language Used | Ladder Logic | |
| Mount Type | DIN Rail | |
| Supply Voltage | 12V dc, 24V dc | |
| Communication Port Type | RS232C, RS422, RS485 | |
| Program Capacity | 32000Steps | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Mitsubishi Electric | ||
Product Type Logic Module | ||
Series FX3G | ||
Number of Inputs 8 | ||
Output Type Transistor | ||
Input Type Sink | ||
Number of Outputs 6 | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 50°C | ||
Length 90mm | ||
Standards/Approvals UL, cUL, CE | ||
Depth 86mm | ||
Width 90mm | ||
Battery Backup Yes | ||
Output Current 800mA | ||
Display Included Yes | ||
Programming Language Used Ladder Logic | ||
Mount Type DIN Rail | ||
Supply Voltage 12V dc, 24V dc | ||
Communication Port Type RS232C, RS422, RS485 | ||
Program Capacity 32000Steps | ||
- COO (Country of Origin):
- JP
FX3G CPU Base Units
The FX3G can be recognized as the successor to the FX1N that will continue the concept of combining performance with affordability. Furthermore backwards compatibly allows the FX3G to slip into existing FX1N applications with minimal redesign required.,FX3G CPU's are compatible with existing FX2N & FX3U expansion modules, including the recently introduced FX3U-ADP expansion modules, and may be used as a replacement for FX1N PLC's.This sub-compact PLC offers extremely fast program execution, accepts up to eight special function modules and provides maximum flexibility and control power for a wide range of automation applications.,The FX3G will be supported by GX-Developer FX from Version 8.72A onwards.
