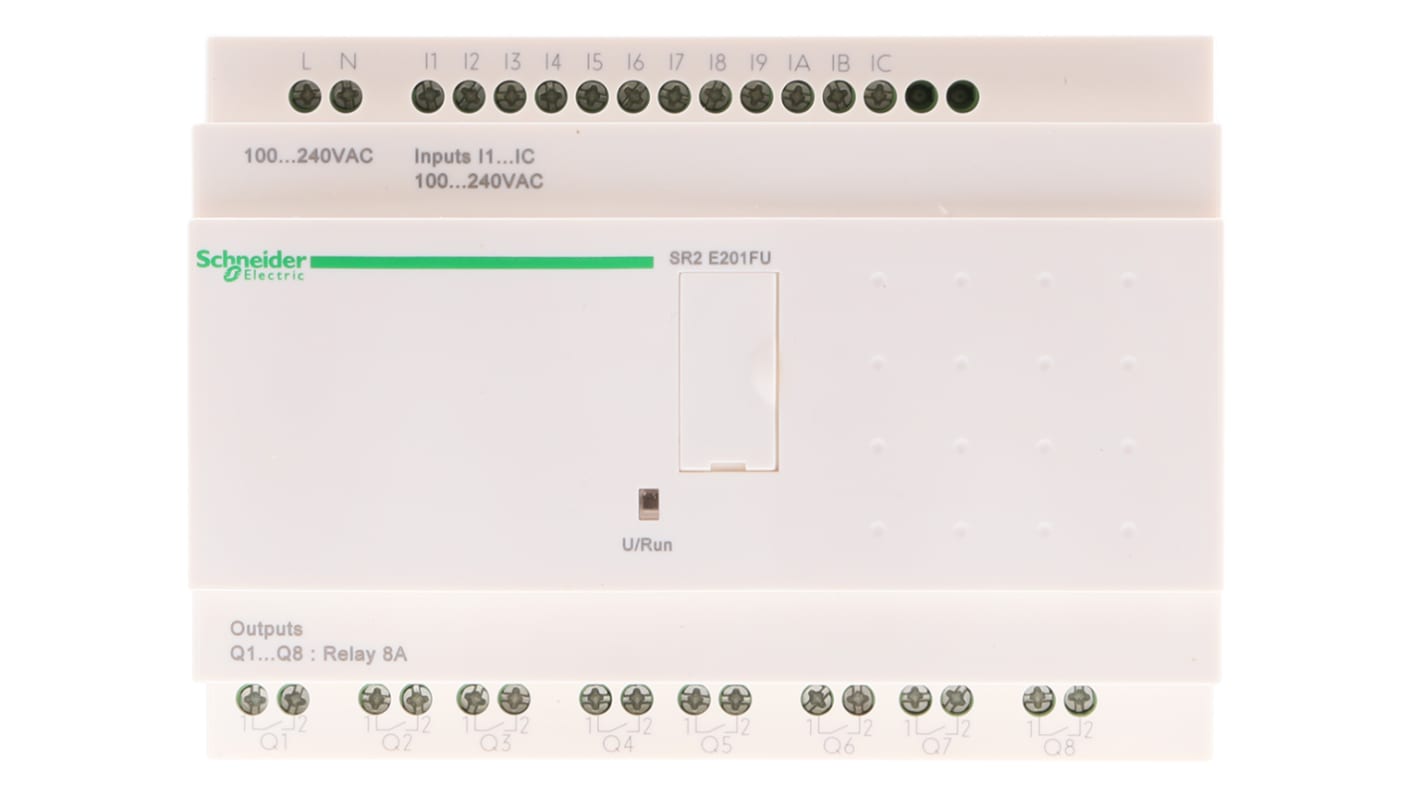

Schneider Electric Zelio Logic Series Logic Module, Relay Output, 12-Input, Discrete Input
- RS Stock No.:
- 479-6109
- Distrelec หมายเลขบทความ:
- 303-04-792
- ผู้ผลิต:
- Schneider Electric
ยอดรวมย่อย (1 ชิ้น)*
THB10,546.80
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB11,285.08
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
หมดสต็อกชั่วคราว
- จะส่งได้หลังจากวันที่ 30 เมษายน 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB10,546.80 |
*ตัวบ่งบอกราคา / price indicative
Better World
กลุ่มผลิตภัณฑ์ Better World ของเรานำเสนอผลิตภัณฑ์ที่ช่วยให้คุณตัดสินใจเลือกผลิตภัณฑ์ที่เป็นมิตรต่อสิ่งแวดล้อมและน่าเชื่อถืออย่างง่ายดาย คลิกที่นี่เพื่อดูข้อมูลเพิ่มเติม
- RS Stock No.:
- 479-6109
- Distrelec หมายเลขบทความ:
- 303-04-792
- ผู้ผลิต:
- Schneider Electric
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Logic Module | |
| Series | Zelio Logic | |
| Number of Inputs | 12 | |
| Output Type | Relay | |
| Input Type | Discrete | |
| Number of Outputs | 8 | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 55°C | |
| Depth | 59.5mm | |
| Standards/Approvals | UL, GL, GOST, CSA, C-Tick | |
| Width | 107.6 mm | |
| Length | 124.6mm | |
| Better World Product | Yes | |
| Display Included | Yes | |
| Battery Backup | Yes | |
| Programming Language Used | FBD, Ladder Logic | |
| Mount Type | DIN Rail | |
| Supply Voltage | 100 → 240 V ac | |
| Communication Port Type | Computer | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Logic Module | ||
Series Zelio Logic | ||
Number of Inputs 12 | ||
Output Type Relay | ||
Input Type Discrete | ||
Number of Outputs 8 | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 55°C | ||
Depth 59.5mm | ||
Standards/Approvals UL, GL, GOST, CSA, C-Tick | ||
Width 107.6 mm | ||
Length 124.6mm | ||
Better World Product Yes | ||
Display Included Yes | ||
Battery Backup Yes | ||
Programming Language Used FBD, Ladder Logic | ||
Mount Type DIN Rail | ||
Supply Voltage 100 → 240 V ac | ||
Communication Port Type Computer | ||
สถานะRoHS: ได้รับการยกเว้น
- COO (Country of Origin):
- FR
Schneider Electric | Zelio Logic SR2/SR3 Series | Logic Module
The Zelio Logic SR2/SR3 series by Schneider Electric provides an alternative to solutions based on cable logic or specific cards. This range is compact, with Modbus or Ethernet communication extension modules compatible with the device. Signal the device remotely, or on-site, you can control the module on your terms.
Features and benefits:
• Easily programmable interface, safe programming allows you to run coherence testing, simulations and monitoring modes to ensure complete control over your devices.
• 6 to 10 outputs & 4 to 10 inputs (depending on model) allowing you versatility in the number of stand-alone devices you need to input/output to.
• Low power consumption with a generous supply voltage ranging from 12 V dc up to 24 V dc (see specifications for model specific voltage).
• DIN Rail or panel mounting with screw terminals depending on your need.
• Cost-effective in reducing space needed with the compact models vs. other basic modules.
• Intuitive programming with Zelio Soft 2 software using function block diagram (FBD): this has 32 pre-programmed functions, 7 Grafcet functions, 6 logic functions
OR
contact language (LADDER): 12 pre-programmed functions.
Applications - where can I use it?
Logic modules are useful for when you need to perform a process without human intervention, therefore the list is not limited. Logic Modules may even be connected to other Logic Modules for example. Below you'll find some typical applications:
• Control systems for smaller machinery/replacement of controls
• Lighting management
• Heating and air conditioning controls
Schneider Electric Zelio Logic 2 Smart Relay - Additional Info:
Schneider Electric now offers a new generation of expandable intelligent relays, offering substantial advantages in flexibility and functionality. Zelio Logic 2 Smart Relay is the optimum solution to control tasks such as automating small machines within industry, lighting, HVAC and access control within buildings.
With the small footprint, simple programming, powerful control functions and the possibility of changing or modifying the program in case of changed application requirements, it offers great savings in space and price compared to other options.
Choose between two new series - Compact and Modular. The Compact series is not expandable and is available with the following I/O block sizes: 10 I/O, 12 I/O and 20 I/O.
The Modular series is available with 10 and 26 I/O basic units and is expandable up to 40 I/O with the latter. Apart from this flexibility both new series are programmable using FBD, ladder and Grafcet SFC programming languages.
User friendly design for easy programming and operation, either directly from the module using the navigation buttons or via Windows based software.
