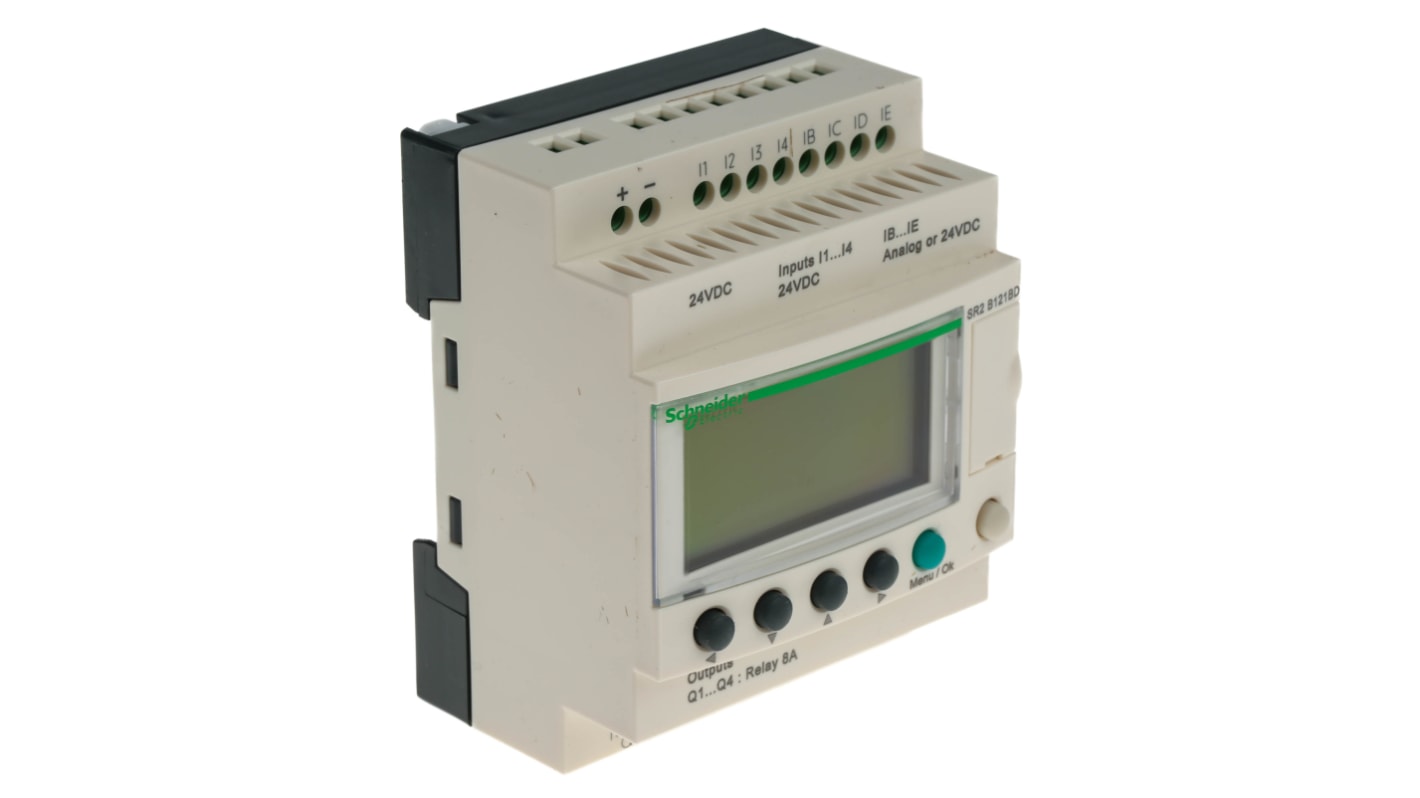

Schneider Electric Zelio Logic Series Logic Module, 24 V dc Supply, Relay Output, 12-Input, Analogue, Discrete Input
- RS Stock No.:
- 468-4438
- Distrelec หมายเลขบทความ:
- 302-37-524
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- SR2B121BD
- ผู้ผลิต:
- Schneider Electric
มีส่วนลดเมื่อซื้อจำนวนมาก
ยอดรวมย่อย (1 ชิ้น)*
THB8,724.63
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB9,335.35
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 64 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
- เพิ่มอีก 1 ชิ้นจะส่งได้หลังจากวันที่ 19 มกราคม 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 - 4 | THB8,724.63 |
| 5 + | THB7,180.37 |
*ตัวบ่งบอกราคา / price indicative
Better World
กลุ่มผลิตภัณฑ์ Better World ของเรานำเสนอผลิตภัณฑ์ที่ช่วยให้คุณตัดสินใจเลือกผลิตภัณฑ์ที่เป็นมิตรต่อสิ่งแวดล้อมและน่าเชื่อถืออย่างง่ายดาย คลิกที่นี่เพื่อดูข้อมูลเพิ่มเติม
- RS Stock No.:
- 468-4438
- Distrelec หมายเลขบทความ:
- 302-37-524
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- SR2B121BD
- ผู้ผลิต:
- Schneider Electric
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Schneider Electric | |
| Manufacturer Series | Zelio Logic | |
| Number of Inputs | 8 | |
| Output Type | Relay | |
| Supply Voltage | 24 V dc | |
| Input Type | Analogue, Discrete | |
| Number of Digital Inputs | 8 | |
| Number of Outputs | 4 | |
| Better World Product | Yes | |
| Better World Verification | Green Premium | |
| Dimensions | 71.2 x 107.6 x 59.5 mm | |
| Number of Analogue Inputs | 4 | |
| Output Current | 8 A | |
| Display Included | Yes | |
| Width | 107.6mm | |
| Programming Interface | Computer, Operating Panel | |
| Depth | 59.5mm | |
| Length | 71.2mm | |
| Programming Language Used | FBD, Ladder Logic, SFC | |
| Mounting Type | DIN Rail | |
| Maximum Operating Temperature | +55°C | |
| Minimum Operating Temperature | -20°C | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Schneider Electric | ||
Manufacturer Series Zelio Logic | ||
Number of Inputs 8 | ||
Output Type Relay | ||
Supply Voltage 24 V dc | ||
Input Type Analogue, Discrete | ||
Number of Digital Inputs 8 | ||
Number of Outputs 4 | ||
Better World Product Yes | ||
Better World Verification Green Premium | ||
Dimensions 71.2 x 107.6 x 59.5 mm | ||
Number of Analogue Inputs 4 | ||
Output Current 8 A | ||
Display Included Yes | ||
Width 107.6mm | ||
Programming Interface Computer, Operating Panel | ||
Depth 59.5mm | ||
Length 71.2mm | ||
Programming Language Used FBD, Ladder Logic, SFC | ||
Mounting Type DIN Rail | ||
Maximum Operating Temperature +55°C | ||
Minimum Operating Temperature -20°C | ||
สถานะRoHS: ได้รับการยกเว้น
- COO (Country of Origin):
- FR
Zelio SR2- Compact
This Schneider Electric logic module is a compact smart relay. With 12 I/O points and a 24V DC supply voltage, it is designed for efficient automation. The module offers a range of features and benefits to enhance industrial processes.
Features & Benefits
12 I/O
6 buttons on front panel for programming and parameter entry
2 power supply terminals
LCD display, 4 lines of 18 characters
24 V supply voltage
6 buttons on front panel for programming and parameter entry
2 power supply terminals
LCD display, 4 lines of 18 characters
24 V supply voltage
Applications
• Suitable for industrial automation and control systems
• Ideal for use in machinery and equipment monitoring
• Can be used for applications requiring precise timing and control
• Used in building automation systems for efficient operation
• Ideal for use in machinery and equipment monitoring
• Can be used for applications requiring precise timing and control
• Used in building automation systems for efficient operation
Can the Schneider Electric logic module support both analogue and discrete inputs?
Yes, the logic module is designed to support both analogue and discrete input types for versatile operation.
Will the module fit securely on a DIN rail for easy installation?
Yes, it is compatible with DIN rail mounting, ensuring a secure and convenient setup.
Is the green premium product reliable for long-term use in industrial settings?
The Schneider Electric logic module carries the Green Premium verification, ensuring efficient and sustainable operation.
What are the maximum and minimum operating temperatures of the logic module?
The module can operate in temperature ranges from -20 °C to +55 °C to adapt to various environmental conditions.
Can the logic module be used with proximity sensors for discrete input?
Yes, it is compatible with 3-wire proximity sensors PNP for discrete input applications.
Approvals
GL, CSA, UL, GOST, C-Tick.
Standards
EN/IEC 61000-4-12, EN/IEC 61000-4-4 level 3, EN/IEC 61000-4-5, EN/IEC 61000-4-11, EN/IEC 61000-4-2 level 3, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-6 level 3, EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-3
.
Schneider Electric Zelio Logic 2 Smart Relay - Additional Info:
Schneider Electric now offers a new generation of expandable intelligent relays, offering substantial advantages in flexibility and functionality. Zelio Logic 2 Smart Relay is the optimum solution to control tasks such as automating small machines within industry, lighting, HVAC and access control within buildings.
With the small footprint, simple programming, powerful control functions and the possibility of changing or modifying the program in case of changed application requirements, it offers great savings in space and price compared to other options.
Choose between two new series - Compact and Modular. The Compact series is not expandable and is available with the following I/O block sizes: 10 I/O, 12 I/O and 20 I/O.
The Modular series is available with 10 and 26 I/O basic units and is expandable up to 40 I/O with the latter. Apart from this flexibility both new series are programmable using FBD, ladder and Grafcet SFC programming languages.
User friendly design for easy programming and operation, either directly from the module using the navigation buttons or via Windows based software.
With the small footprint, simple programming, powerful control functions and the possibility of changing or modifying the program in case of changed application requirements, it offers great savings in space and price compared to other options.
Choose between two new series - Compact and Modular. The Compact series is not expandable and is available with the following I/O block sizes: 10 I/O, 12 I/O and 20 I/O.
The Modular series is available with 10 and 26 I/O basic units and is expandable up to 40 I/O with the latter. Apart from this flexibility both new series are programmable using FBD, ladder and Grafcet SFC programming languages.
User friendly design for easy programming and operation, either directly from the module using the navigation buttons or via Windows based software.
With the small footprint, simple programming, powerful control functions and the possibility of changing or modifying the program in case of changed application requirements, it offers great savings in space and price compared to other options.
Choose between two new series - Compact and Modular. The Compact series is not expandable and is available with the following I/O block sizes: 10 I/O, 12 I/O and 20 I/O.
The Modular series is available with 10 and 26 I/O basic units and is expandable up to 40 I/O with the latter. Apart from this flexibility both new series are programmable using FBD, ladder and Grafcet SFC programming languages.
User friendly design for easy programming and operation, either directly from the module using the navigation buttons or via Windows based software.
The Modular series is available with 10 and 26 I/O basic units and is expandable up to 40 I/O with the latter. Apart from this flexibility both new series are programmable using FBD, ladder and Grafcet SFC programming languages.
User friendly design for easy programming and operation, either directly from the module using the navigation buttons or via Windows based software.
