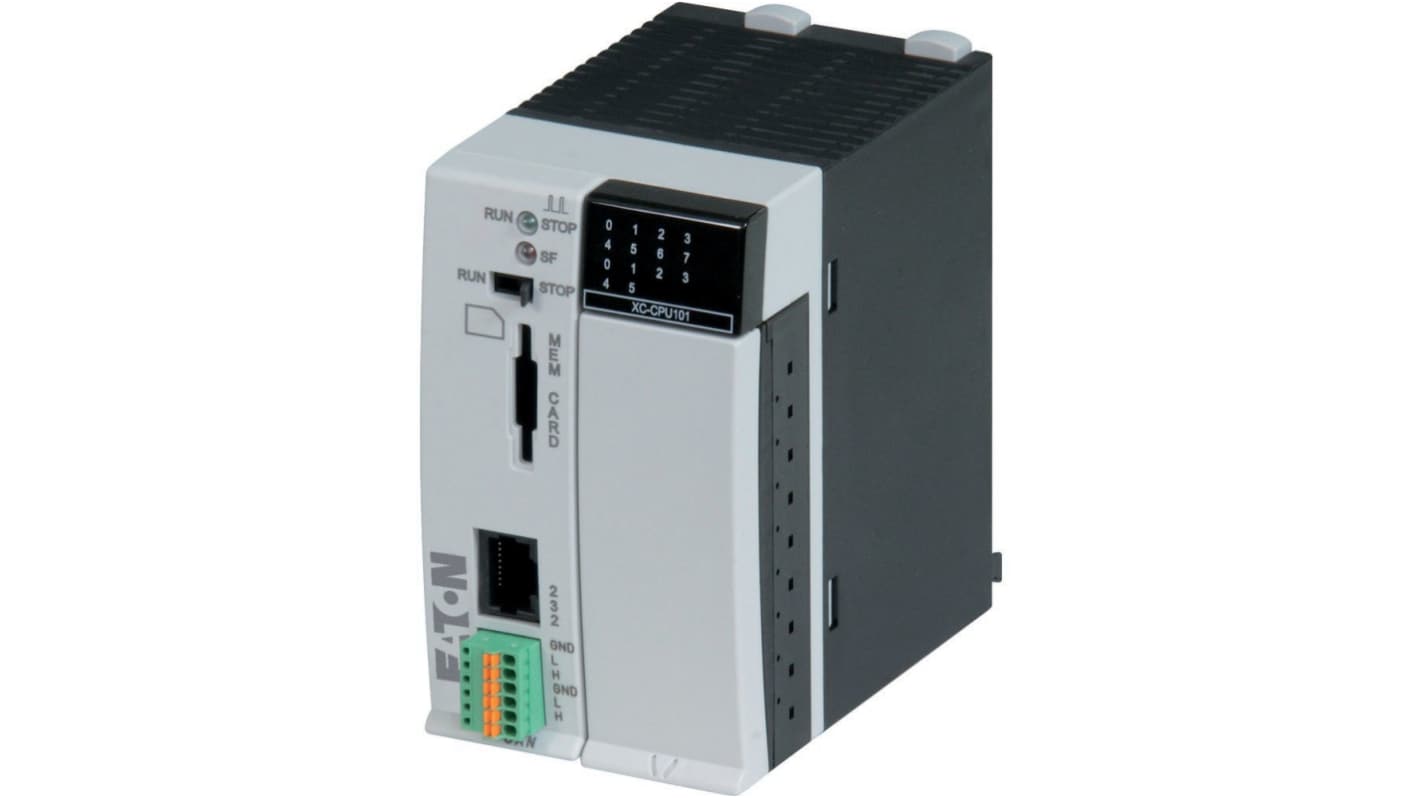

Eaton XC Series PLC CPU, 8-Input, Digital Input, 8 Outputs, Transistor Output
- RS Stock No.:
- 259-074
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 274399 XC-CPU101-C256K-8DI-6DO
- ผู้ผลิต:
- Eaton
ไม่พร้อมจำหน่ายในตอนนี้
เราไม่ทราบว่าสินค้านี้จะกลับมาในสต็อกหรือไม่ RS ตั้งใจที่จะลบสินค้านี้ออกจากกลุ่มผลิตภัณฑ์ในเร็วๆ นี้
- RS Stock No.:
- 259-074
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 274399 XC-CPU101-C256K-8DI-6DO
- ผู้ผลิต:
- Eaton
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Eaton | |
| Product Type | PLC CPU | |
| Series | XC | |
| Number of Inputs | 8 | |
| Output Type | Transistor | |
| Input Type | Digital | |
| Number of Outputs | 8 | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | UL508, EAC, CSA, CE | |
| Depth | 100mm | |
| Width | 60mm | |
| Length | 100mm | |
| Output Current | 3.2A | |
| Supply Voltage | 24V dc | |
| Program Capacity | 356kB | |
| Mount Type | Wall, Rail | |
| Display Included | No | |
| Communication Port Type | CAN, RS232 | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Eaton | ||
Product Type PLC CPU | ||
Series XC | ||
Number of Inputs 8 | ||
Output Type Transistor | ||
Input Type Digital | ||
Number of Outputs 8 | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals UL508, EAC, CSA, CE | ||
Depth 100mm | ||
Width 60mm | ||
Length 100mm | ||
Output Current 3.2A | ||
Supply Voltage 24V dc | ||
Program Capacity 356kB | ||
Mount Type Wall, Rail | ||
Display Included No | ||
Communication Port Type CAN, RS232 | ||
สถานะRoHS: ได้รับการยกเว้น
- COO (Country of Origin):
- DE
The Eaton XC Modular PLC is a robust and versatile solution designed for a variety of automation tasks. Ideal for industrial environments, this programmable logic controller operates at a voltage of 24 V DC and incorporates an impressive array of I/O options, boasting 8 digital inputs and 6 digital outputs. Its connectivity features, including RS232 and CAN communication protocols, allow for seamless integration into existing systems. The compact design ensures easy installation whether on a rail or mounted directly to a wall. With a memory capacity of 256 kB, it supports sophisticated programming and efficient task execution. Built for reliability, this controller is not only scalable but also designed to meet current industry standards, ensuring longevity and performance in your automation projects.
Expandable with XIOC modules for enhanced capabilities
Short-circuit and overvoltage protection ensure safety during operation
Real-time clock functionality maintains accurate timing for automation tasks
IP20 rated degree of protection safeguards against dust and mechanical impacts
Wide ambient operating temperature range supports diverse environments
Supports asynchronous, cyclic, and acyclic PDO types for flexible communication
Designed with high shock and vibration resistance for rugged applications
Equipped with a plug-in terminal block for easy wiring and connection
