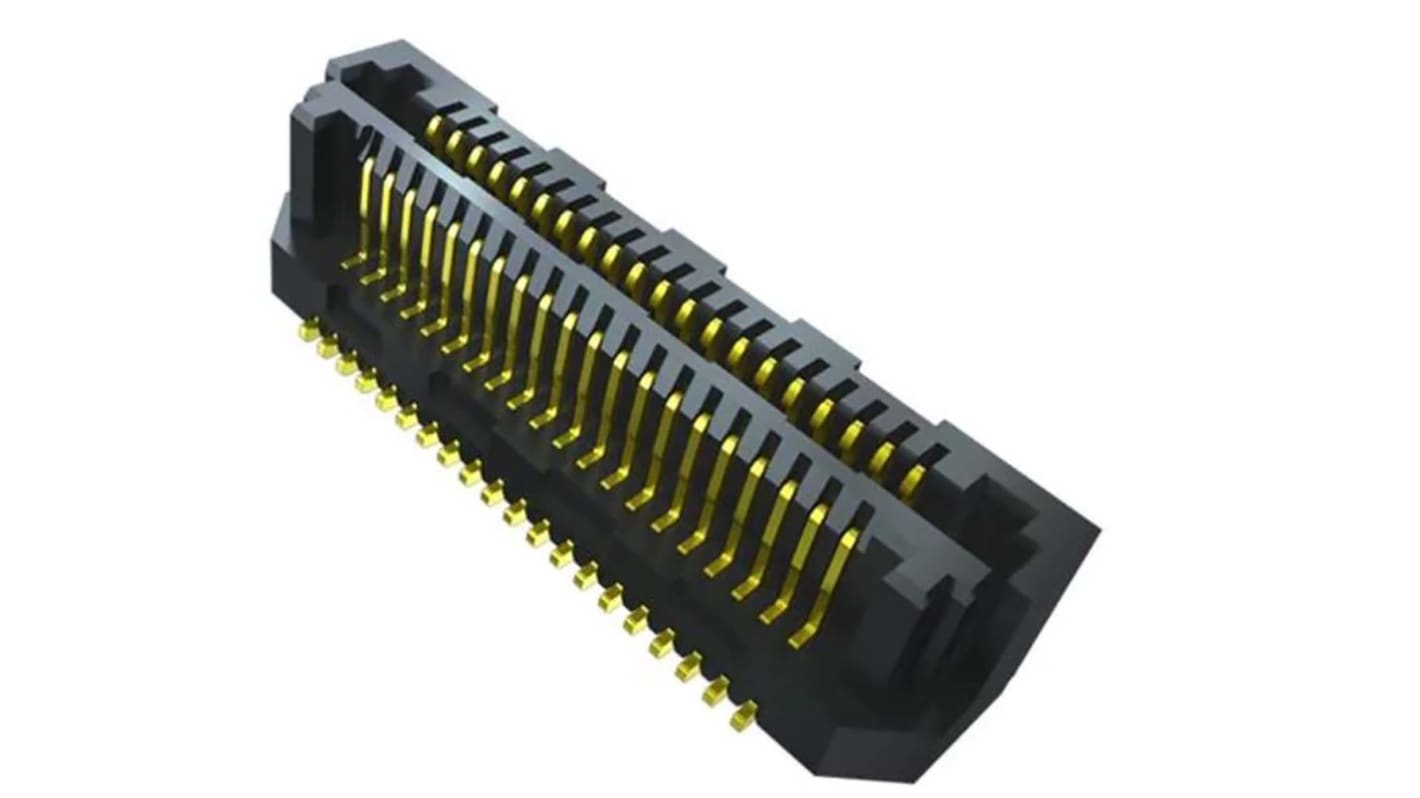

Samtec LSS Series Straight Surface PCB Header, 60 Contact(s), 0.635 mm Pitch, 2 Row, Shrouded
- RS Stock No.:
- 200-0331
- Mfr. Part No.:
- LSS-130-02-L-DV-A
- Brand:
- Samtec
Image representative of range
Bulk discount available
Subtotal (1 tube of 24 units)*
THB4,143.12
(exc. VAT)
THB4,433.04
(inc. VAT)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- เพิ่มอีก 24 ชิ้นจะส่งได้หลังจากวันที่ 15 ธันวาคม 2568 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
Units | Per unit | Per Tube* |
|---|---|---|
| 24 - 24 | THB172.63 | THB4,143.12 |
| 48 - 72 | THB168.832 | THB4,051.97 |
| 96 + | THB165.207 | THB3,964.97 |
*price indicative
- RS Stock No.:
- 200-0331
- Mfr. Part No.:
- LSS-130-02-L-DV-A
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Series | LSS | |
| Product Type | PCB Header | |
| Pitch | 0.635mm | |
| Current | 1.7A | |
| Housing Material | Liquid Crystal Polymer | |
| Number of Contacts | 60 | |
| Number of Rows | 2 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Surface | |
| Connector System | Board-to-Board | |
| Contact Plating | Gold | |
| Contact Material | Phosphor Bronze | |
| Minimum Operating Temperature | -55°C | |
| Row Pitch | 0.635mm | |
| Maximum Operating Temperature | 125°C | |
| Contact Gender | Male | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Series LSS | ||
Product Type PCB Header | ||
Pitch 0.635mm | ||
Current 1.7A | ||
Housing Material Liquid Crystal Polymer | ||
Number of Contacts 60 | ||
Number of Rows 2 | ||
Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Surface | ||
Connector System Board-to-Board | ||
Contact Plating Gold | ||
Contact Material Phosphor Bronze | ||
Minimum Operating Temperature -55°C | ||
Row Pitch 0.635mm | ||
Maximum Operating Temperature 125°C | ||
Contact Gender Male | ||
Standards/Approvals RoHS | ||
2
The Samtec LSS series is self mating hermaphroditic header.it can connect up to 100 I/o.
Audible click when mated
Self-mating system reduces inventory cost
