Teledyne LeCroy T3DSO3204 T3DSO3000 Series, 200MHz Bench Oscilloscope, 4 Analogue Channels, 16 Digital Channels

ดู Oscilloscopes ทั้งหมด

ยอดรวมย่อย (1 ชิ้น)*

THB228,028.33

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB243,990.31

(รวมภาษีมูลค่าเพิ่ม)

Add to Basket
เลือกหรือพิมพ์จำนวน
มีในสต็อก
  • 4 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น
ต่อหน่วย
1 +THB228,028.33

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:
224-0969
Distrelec หมายเลขบทความ:
302-25-480
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
T3DSO3204-PROMO-1
ผู้ผลิต:
Teledyne LeCroy
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

Teledyne LeCroy

Bandwidth

200MHz

Number of Analogue Channels

4

Number of Digital Channels

16

Oscilloscope Type

Bench

Oscilloscope Form

Mixed Signal

Interface

USB

Memory Depth

250Mpts

Sample Rate Random

5 Gsps

Screen Size

10.1in

Series

T3DSO3000

Rise Time

1.7ns

Vertical Resolution

8 bit, 11 bit

Waveform Refresh Rate

120000 (Normal Mode) per sec, 500000 (Sequence Mode) per sec

Digital/Analogue

Digital

Minimum Time Base

1ns/div

Power Source

Mains

COO (Country of Origin):
CN

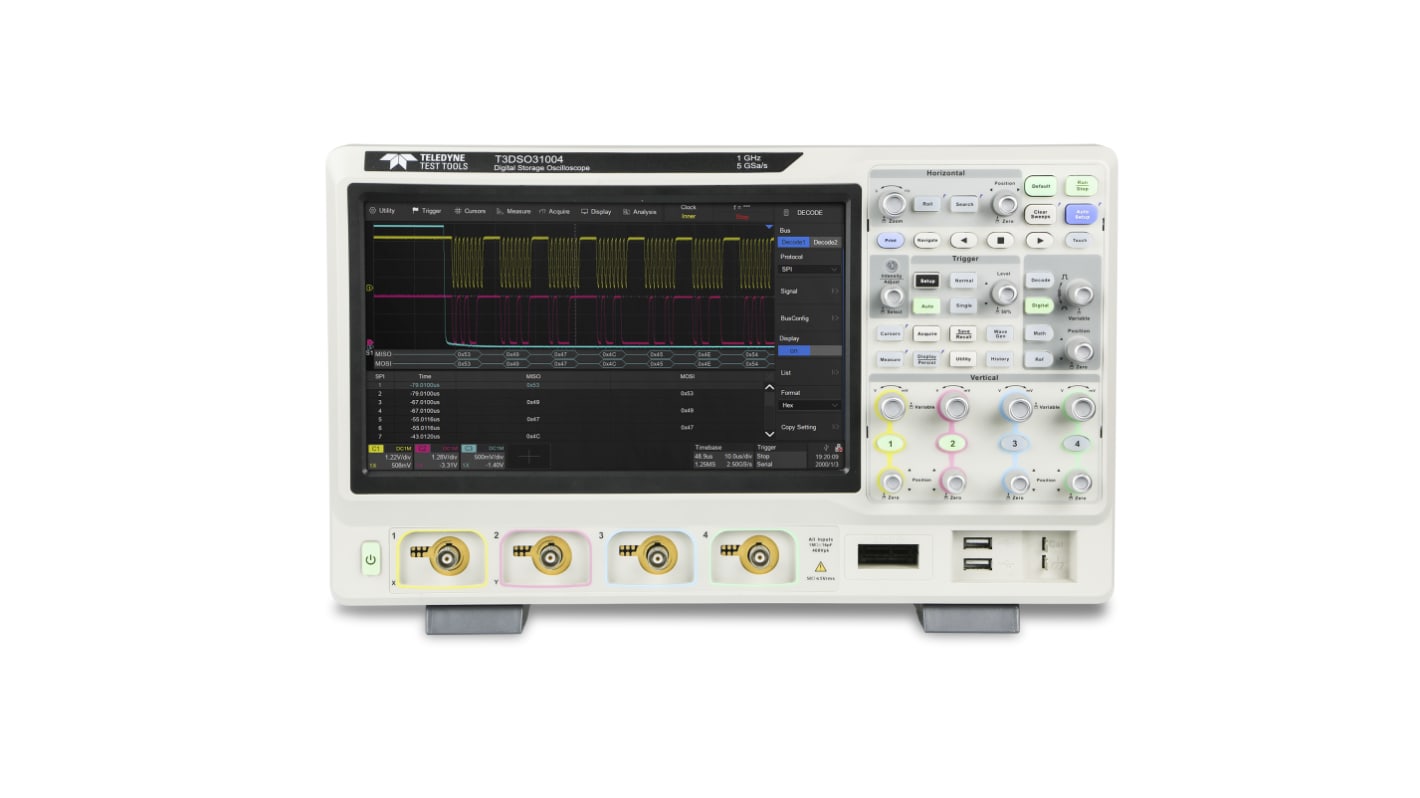

Teledyne LeCroy, T3DSO3024, FULLY LOADED, 16 Channel Mixed Signal Oscilloscope, 200 MHz, 4 Channels


Teledyne LeCroy's new T3DSO3024 Oscilloscope is a four channel model with analog bandwidth of 200 MHz. The model also comes with 16 channel Mixed Signal capability as standard. The T3DSO3204 offers a maximum sample rate of 5 GSa/s, and a maximum memory depth of 250 Mpts in half channel mode. The T3DSO3204 model incorporate two 5 GSa/s ADCs and two 250 Mpts memory modules. When all channels are enabled, each channel has sample rate of 2.5 GSa/s and a standard record length of 125 Mpts. When only a single channel per ADC is active, the maximum sample rate is 5 GSa/s and the maximum record length is 250 Mpts. For ease-of-use, the most commonly used funcons can be accessed with its user-friendly front panel capacitive touch screen design. The T3DSO3204 model comes fully loaded with all Trigger/Decode options as standard alongside Power Analysis and Bode Plot capability.

Features & Benefits


4 analogue plus 16 digtal channels as standard
200 MHz bandwidth
Serial Bus Trigger and Decode options as standard – I2C, SPI, UART, CAN, LIN, CAN FD, I2S, MIL-1553B, FlexRay
SENT & MANCHESTER decode as standard
Power Analysis software as standard
Long Capture – 125 Mpts/Ch or 250 Mpts interleaved
Bode Plot as standard
Zone Triggering capability. Up to 2 zones with user defined ’intersect’ / ’not intersect’ events
Waveform capture rate up to 120,000 wfm/s (normal mode), and 500,000 wfm/s (sequence mode)
Up to 5 GS/s Sample Rate
Large 10.1”Colour TFT LCD Display
25 MHz function / arbitrary waveform generator software as standard. Requires T3DSO1000-FGMOD-A Module (215-1101)

Applications


Educational laboratories
Electronics troubleshooting and measurement
Embedded electronics
Mixed-signal and video designing
Automotive electronics
Data analysis

The T3DSO31004 digital, Mixed Signal oscilloscope is used in a wide array of applications in a multitude of different industries. The oscilloscope is a vital piece of equipment for any professional who is designing, testing or repairing electronic equipment. Some of the most common are

Need Additional Accessories?


T3DSO1000-FGMOD-A AWG Module (215-1101)
